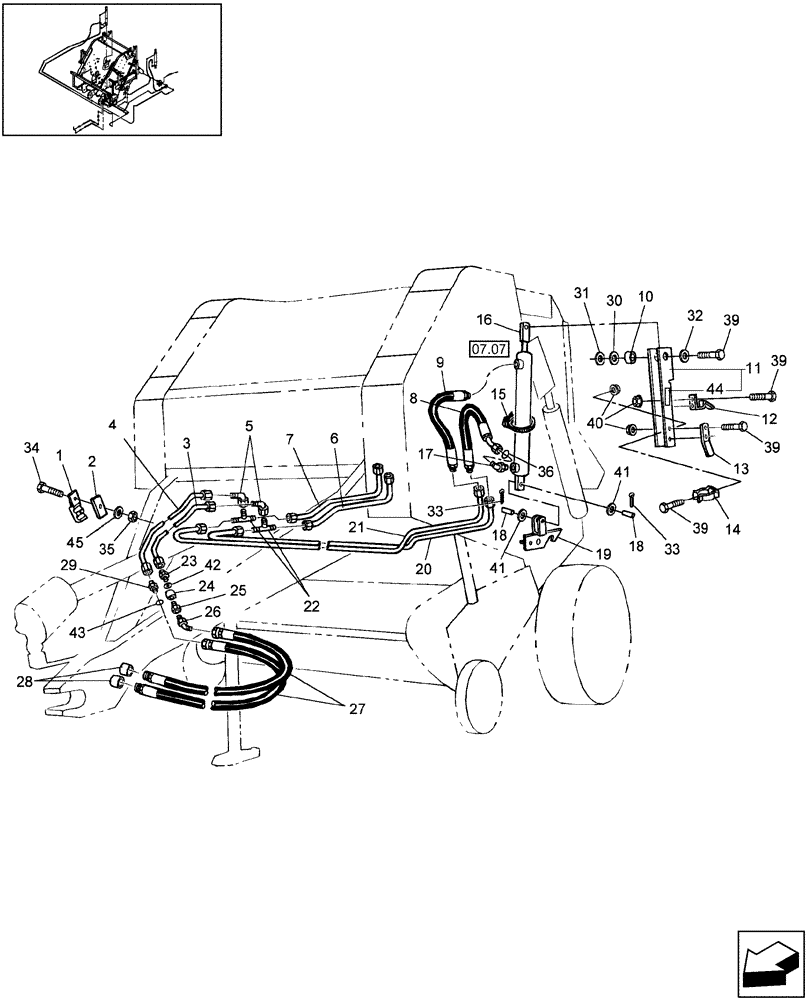

Запчасти Case IH RBX443 (07.05) - HYDRAULICS, TAILGATE LIFT (07) - HYDRAULIC SYSTEM

1

604896

CLAMP,Dual, 3/8" Hose, 6mm Bolt

Double, 3/8" Tubing

8шт.

2

86509354

PLATE,9/32" ID x 3/4" W x 2" L

Tab

9шт.

3

9616739

HYD TUBE

1шт.

4

9616738

HYD TUBE

1шт.

5

592984

NUT

Swivel Nut

2шт.

6

9616737

HYD TUBE

1шт.

7

9619096

HYD TUBE

1шт.

8

698307

FLEXIBLE HOSE,9.53mm ID x 381mm L, SAE 100R1

Hydraulic

2шт.

9

86503170

FLEXIBLE HOSE

Hydraulic

2шт.

10

86635142

SPACER

2шт.

11

86635348

LATCH ASSY.

Includes: Ref. 44

2шт.

12

699386

SPRING

2шт.

13

698306

ANGLE

2шт.

14

640576

CLIP

2шт.

15

86050202

HOSE CLAMP,1.59” - 2.5”, Worm Gear

2шт.

16

87019610

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 381mm Stroke

Tailgate Lift

2шт.

Manufacturer's Production Date Stamp - (ex. M 02 2003 = M / week / year )

1шт.

17

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 36

2шт.

18

166065

PIN,25.4mm OD x 66.5mm L

Clevis, 1" x 2-5/8"

2шт.

19

86635252

LATCH

Tailgate, RH

1шт.

19

86635332

LATCH

Tailgate, LH

1шт.

20

9616736

HYD TUBE

1шт.

21

9619095

HYD TUBE

1шт.

22

86628549

3 WAY CONNECTION

Connector, Male Tee, 9/16"-18 SAE

2шт.

23

517310

HYD CONNECTOR

Rigid, Male, 9/16"-18 SAE to 3/4"-16 SAE, Includes: Ref. 46

1шт.

24

86635143

COUPLING,3/4" - 16, 1-9/64" L

3/4"-16 SAE

1шт.

25

195492

ADAPTER,3/4" - 16 ORB x 9/16" - 18

Includes: Ref. 43

1шт.

26

595744

ELBOW,45 Degree, 9/16" - 18 x 9/16" - 18

90°

1шт.

27

698314

HOSE,9.53mm ID x 1879.6mm L, SAE 100R1

Hydraulic, 74"

2шт.

28

116070

CAP

Oil Drain

2шт.

29

322897

HYD CONNECTOR,9/16" - 18 x 9/16" - 18

(Union)

1шт.

30

26130

WASHER,26mm ID x 35mm OD x 1.7mm Thk

.060" Thick

1шт.

31

675657

WASHER

2шт.

32

25769

WASHER,25.8mm ID x 49.21mm OD x 3.17mm Thk

2шт.

33

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

6шт.

34

814-6040

BOLT,Hex, M6 x 1 x 40mm, Cl 8.8

4шт.

35

832-46406

NUT,M6 x 1, Cl 8

4шт.

36

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

37

64972

WASHER,32.54mm ID x 50.8mm OD x 3.43mm Thk

Special, 1-9/32" ID x 2" OD x .135"

2шт.

38

432-1624

COTTER PIN,1/4" x 1 1/2"

2шт.

39

905-8020

BOLT,Hex Flg, M8 x 20mm

4шт.

40

825-5148

SERRATED NUT,M8, Flg Ser

6шт.

41

495-11106

WASHER,1", SAE

1шт.

42

86517438

ORIFICE

1шт.

43

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

44

87015383

DECAL

DANGER

1шт.

45

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

8шт.

46

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Not Illustrated

1шт.
