Запчасти Case IH RBX442 (14.80) - TAILGATE, SPRING & BELTS (14) - BALE CHAMBER

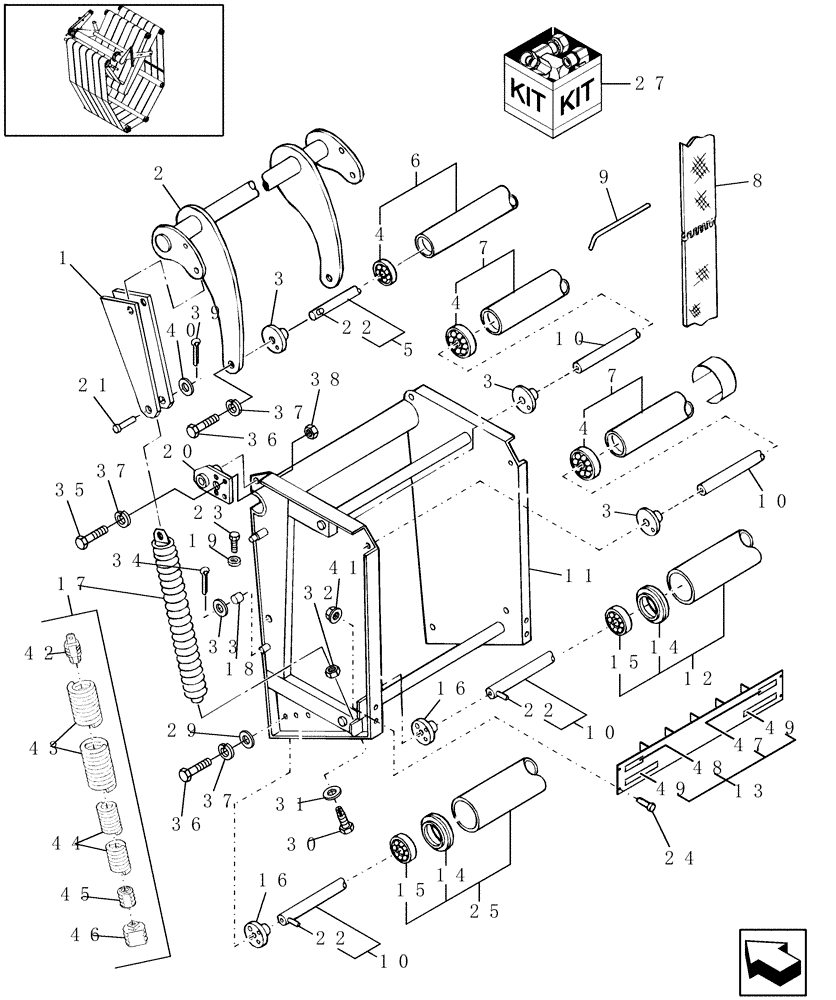

Схема запчастей Case IH RBX442 - (14.80) - TAILGATE, SPRING & BELTS (14) - BALE CHAMBER
36
22
7
37
4
18
37
38
20
10
46
3
4
44
4
19
8
40
10
16
11
34
16
7
36
23
37
22
14
41
39
15
10
49
14
2
6
30
9
27
3
12
22
29
15
49
32
17
35
25
45
42
3
43
47
31
1
21
33
5
48
13
24
10

Артикул

Название

Примечание

Количество

1

86635367

PLATE

2шт.

2

86635253

LEVER

Tension Arm

1шт.

Prior to P.I.N. HBJ0005000

1шт.

2

87026983

LEVER

Tension Arm

1шт.

P.I.N. HBJ0005001 & After

1шт.

3

86521602

SUPPORT

6шт.

4

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

6шт.

5

9823372

SHAFT,1135mm L

Includes: (2) 130045 Pins

1шт.

6

9842288

ROLLER,88.9mm OD x 1142mm L

1шт.

7

9842286

ROLLER

2шт.

8

87056533

BELT,177.80 mm W x 6921.50 mm L

Chevron, Laced

6шт.

9

86625980

DIA KIT, HARVESTER

Lacing Cable, Includes: (18) Cable Tubes, (8) Lacing Cables & Instructions

1шт.

Includes: Lacing Cables 9843257 (8/Pack) & Cable Tubes 9843258 (20/Pack)

1шт.

10

9823371

SHAFT

Includes: (1) 130045 Pin

4шт.

11

86635378

PANEL ASSY.

Tailgate, Includes: Ref. 47 & 48

1шт.

12

9849616

ROLL

2шт.

13

86635387

GUIDE

Belt

1шт.

14

9608110

HOUSING

4шт.

15

353125

BALL BEARING,45mm ID x 85mm OD x 19mm W

4шт.

16

86635251

SUPPORT

4шт.

17

0C

ORDER COMPONENTS

Spring, Belt Tension

2шт.

86517079

1шт.

18

9600196

SPACER,32.23mm ID x 39.7mm OD x 29.98mm L

2шт.

19

241307

GROMMET

1шт.

20

9612192

BRACKET, PIVOT

PIVOT BRACKET

2шт.

21

72811

CLEVIS PIN,5/8" x 1.72" L

4шт.

22

838-5526

LOCK PIN,M5 x 26, Slotted

6шт.

23

413-1664

BOLT,Hex, 1" - 8 x 4", Gr 5

1шт.

24

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

6шт.

25

9849616

ROLL

Loop

2шт.

27

9847138

REPAIR KIT

Lacing, Includes: Box of 18 Cards, 45 Hooks per Card

1шт.

Contains: (18) Cards, (45) Hooks per Card

1шт.

29

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

17/32" ID x 2" OD x 3/16" Thk

6шт.

30

281029

BOLT,Hex, 5/8" - 11 x 6", Gr 5

2шт.

31

130358

WASHER,16.28mm ID x 38.35mm OD x 4.11mm Thk

2шт.

32

425-1010

NUT,5/8"-11, G5

2шт.

33

164995

WASHER,32.5mm ID x 42.9mm OD x 4.38mm Thk

1-1/4"

2шт.

34

432-1228

COTTER PIN,3/16" x 1 3/4"

2шт.

35

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

8шт.

36

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

10шт.

37

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

16шт.

38

825-1412

NUT,M12, Cl 8

2шт.

39

432-816

COTTER PIN,1/8" x 1"

4шт.

40

27697

WASHER,16.66mm ID x 27mm OD x 1.52mm Thk

4шт.

41

825-51410

FLANGE NUT,M10, Flg Ser

6шт.

42

86516325

SPRING NUT

Spring

1шт.

43

621339

SPRING

Extension

1шт.

44

621340

SPRING

Extension

1шт.

45

621920

SPRING NUT

Spring, Internal Threads

1шт.

46

621922

SPRING NUT

Spring, No Internal Threads

1шт.

47

86631519

DANGER DECAL

English

2шт.

47

86632802

DECAL

DANGER, French

2шт.

48

86631516

WARNING DECAL

English

1шт.

49

86547781

REFLECTOR,RED

Red, Retroreflective

2шт.

Выбрано товаров: 54
