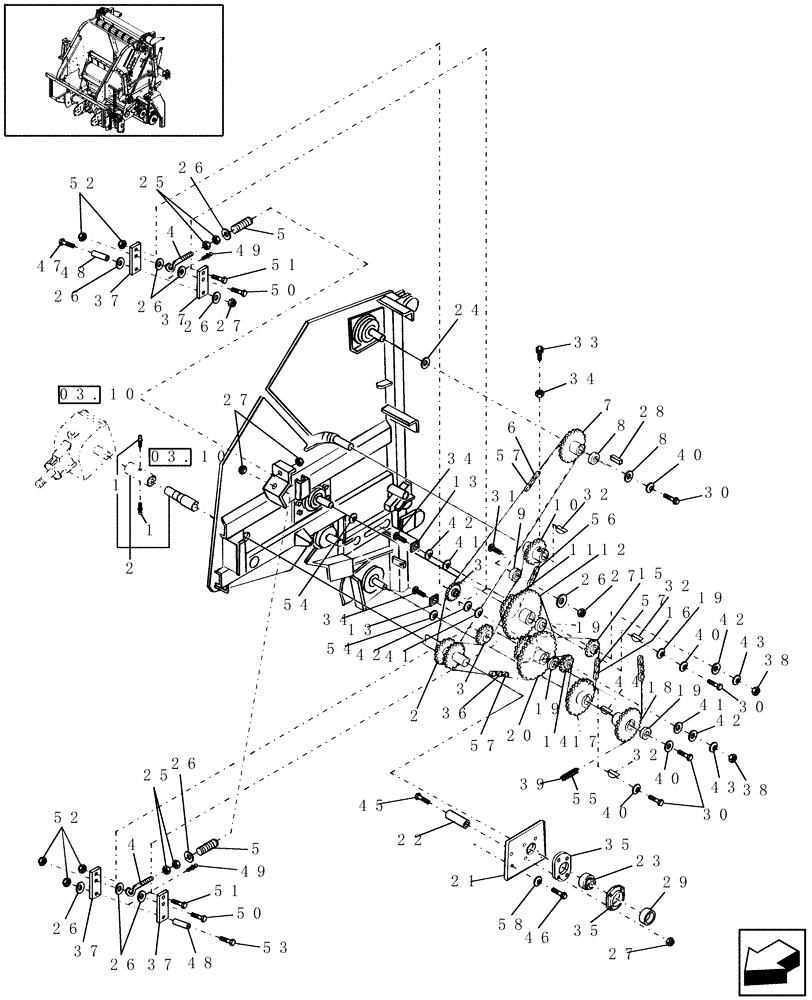

Запчасти Case IH RBX442 (12.25) - MAIN DRIVES (12) - MAIN FRAME

1

62161

LUBE NIPPLE,M8 x 1.25, Str

Self-Tapping

1шт.

2

86836471

SHAFT

1шт.

3

511265

SPROCKET

Idler

2шт.

4

334965

BANJO BOLT

M12 x 1.75 x 160

2шт.

5

86635207

SPRING

2шт.

6

86639346

CHAIN

Roller, RC 60, 142 Pitches, Belt Drive

1шт.

7

9822643

DRIVING SPROCKET

25T, Belt Drive

1шт.

8

136443

WASHER,10.32mm ID x 57.15mm OD x 4.8mm Thk

3/8"

2шт.

9

86514717

IDLER WHEEL

1шт.

10

9822046

DRIVEN SPROCKET

1шт.

11

52555

CHAIN

Roller, RC 50, 57 Pitches, Front Roll Drive

1шт.

12

9822045

DRIVEN SPROCKET

Double, 40T/24T

1шт.

13

624471

REINFORCEMENT

2шт.

14

9826487

DRIVING SPROCKET

15T, Includes: Ref. 61 & 62

1шт.

15

511265

SPROCKET

Idler

1шт.

16

9800063

CHAIN

RC60, 97 Pitches, Includes: Ref. 59 & 60

1шт.

17

9822048

DRIVING SPROCKET

32T, Floor Roll Drive

1шт.

18

86505805

DRIVEN SPROCKET

34T, Pickup Drive

1шт.

19

623303

WASHER,10.32mm ID x 47.63mm OD x 4.76mm Thk

2шт.

20

9808390

DRIVEN SPROCKET

Double, 40T & 27T

1шт.

21

87021721

PLATE

1шт.

22

86635139

SPACER

1шт.

23

664175R92

BALL BEARING,1.5005" ID x 80 mm OD x 1.1875"

1шт.

24

140194

WASHER,41mm ID x 48 mm OD x 1mm Tk

M40

2шт.

25

825-1412

NUT,M12, Cl 8

4шт.

26

495-11053

WASHER,1/2", SAE

2шт.

27

832-46412

NUT,M12 x 1.75, Cl 8

2шт.

28

170015

KEY,12mm x 8mm x 32mm

1шт.

29

455112R11

COLLAR

& Screw

1шт.

30

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

31

811-12060

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 60mm, Cl 8.8

1шт.

32

126-43

WOODRUFF KEY,#128, 5/16" x 2 1/8"

1шт.

33

393597

SET SCREW,Sq Hd, M8 x 20mm, Cl 12.9

Sq Hd, CL 12.9, M8 x 2.5 x 20

2шт.

34

434-1044

CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 2 3/4", Gr 5

2шт.

35

86548973

FLANGE

2шт.

36

166446

CHAIN

RC60, 102 Pitches

1шт.

37

86635214

ARM

Idler

2шт.

38

425-1010

NUT,5/8"-11, G5

1шт.

39

D31848

OIL SEAL

RC2050, 50 Pitches

1шт.

40

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

41

47407

WASHER,16.7mm ID x 33.3mm OD x 0.75mm Thk

4шт.

42

495-11066

WASHER,5/8", SAE

1шт.

43

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

1шт.

44

126-47

WOODRUFF KEY,#28, 5/16" x 2 1/8"

1шт.

45

814-12140

BOLT,Hex, M12 x 1.75 x 140mm, Cl 8.8

1шт.

46

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

2шт.

47

814-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8

1шт.

48

432840

SPACER

2шт.

49

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

2шт.

50

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

51

614-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 8.8, Full Thd

2шт.

52

832-46416

NUT,M16 x 2, Cl 8

2шт.

53

814-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

1шт.

54

9800957

WASHER,35.81mm ID x 50.8mm OD x 1.52mm Thk

1шт.

55

86977795

CONNECTING LINK

Roller, RC 2050, Cotter Style

1шт.

56

25816

OFFSET LINK

RC 50

1шт.

56

25194

CONNECTING LINK

Roller, RC 50, Spring Style

1шт.

57

86595266

CONNECTING LINK

RC 60, Cotter Style

1шт.

57

86595275

OFFSET LINK

RC 60

1шт.

58

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

59

86595275

OFFSET LINK

1шт.

Not Illustrated

1шт.

60

86595266

CONNECTING LINK

1шт.

Not Illustrated

1шт.

61

87306803

BALL BEARING,17mm ID x 47mm OD x 14mm W

1шт.

Not Illustrated

1шт.

62

75429

SNAP RING,1.875", Int, #187

1шт.

Not Illustrated

1шт.
