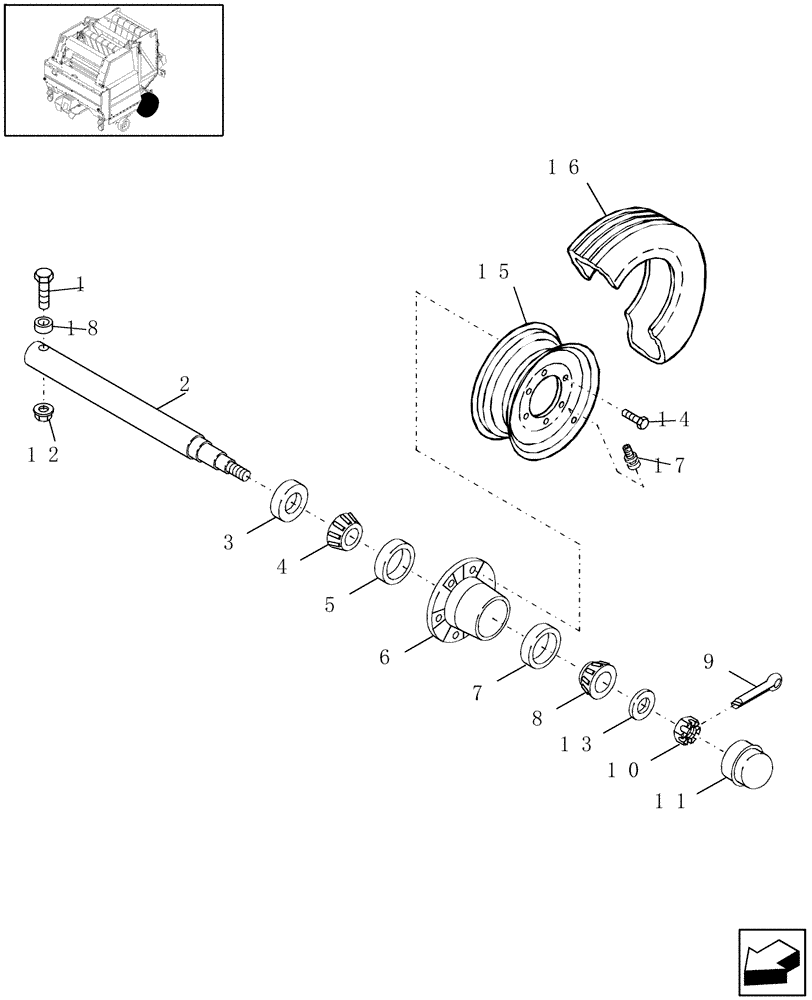

Запчасти Case IH RBX442 (11.09) - WHEEL HUB, SPINDLE & TIRE, 11L X 14 (11) - WHEELS

1

814-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

2шт.

2

9623563

SPINDLE

2шт.

3

788367

SEAL

2шт.

4

G15215

ROLLER BEARING

2шт.

5

619387R1

BEARING CUP

2шт.

6

86635391

HUB

2шт.

7

H433209

BEARING CUP

2шт.

8

536053R1

ROLLER BEARING,1.3772" ID x 2.3622" OD x 0.625"

2шт.

9

432-1224

COTTER PIN,3/16" x 1-1/2"

2шт.

10

425-1314

SLOTTED NUT,7/8"-14, G5

2шт.

11

249128

HUB CAP

2шт.

12

832-46412

NUT,M12 x 1.75, Cl 8

2шт.

13

116150

WASHER,23.81mm ID x 50.8mm OD x 4.76mm Thk

7/8"

2шт.

14

32383

BOLT,Wheel, G5, 1/2"-20 x 13/16"

Wheel, G5, 1/2"-20 x 13/16"

12шт.

15

86616430

WHEEL

2шт.

16

245746

TYRE/TIRE

Tubeless, 11L x 14, 6 Ply, Grooved Implement

2шт.

17

86626246

VALVE STEM

2шт.

18

86635011

BUSHING

2шт.

87298567

KIT

Wheel Bearing Kit / Ship Direct Option

1шт.
