Запчасти Case IH RBX442 (07.07[1]) - HYDRAULIC CYLINDER, TAILGATE LIFT, 86635365 (07) - HYDRAULIC SYSTEM

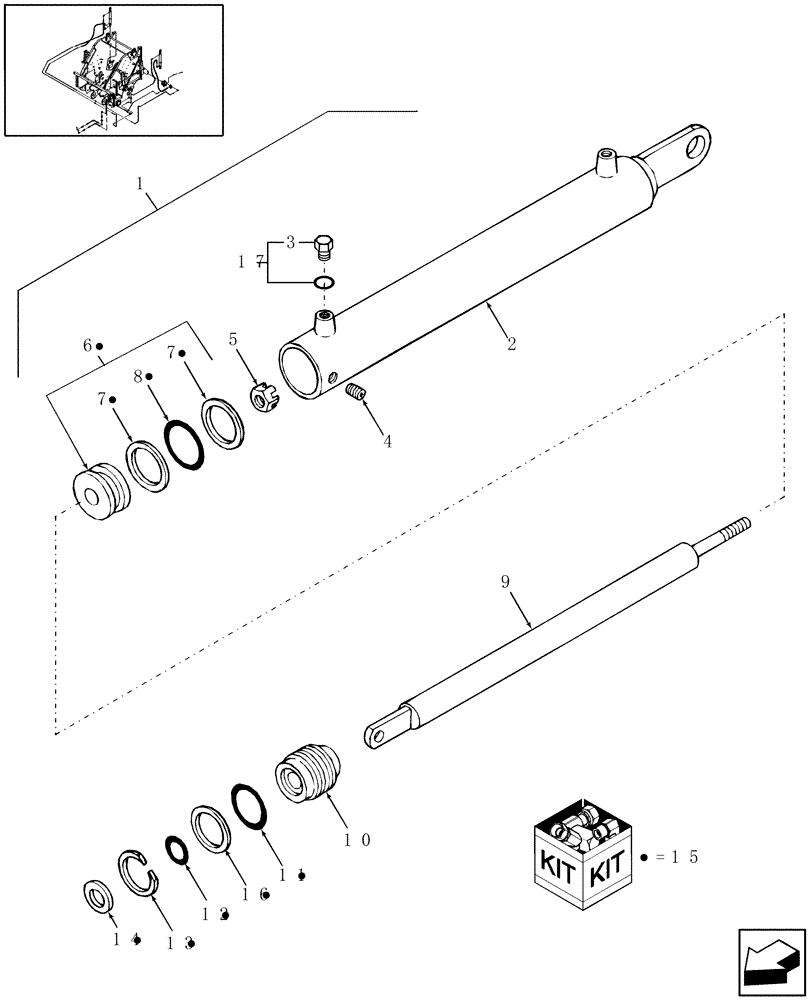

Схема запчастей Case IH RBX442 - (07.07[1]) - HYDRAULIC CYLINDER, TAILGATE LIFT, 86635365 (07) - HYDRAULIC SYSTEM
2
13
14
11
7
16
17
3
4
5
12
10
7
9
15
1
8
6

Артикул

Название

Примечание

Количество

1

86635365

CYLINDER ASSY.

Tailgate Lift

1шт.

Manufacturer's Production Date Stamp - (ex. 02 03 = week / year )

1шт.

2

86635366

BARREL

1шт.

3

76349

PLUG,9/16" - 18 ORB

2шт.

4

529034

SET SCREW

HS, Self-Locking, Cup Pt, 1/4"-20 x 1/4"

1шт.

5

280724

LOCK NUT,3/4" - 16

1шт.

6

768213

PISTON

1шт.

7

511297

SEAL,41.22mm ID x 50.8mm OD x 1.93mm Thk

1.638" ID x .064" Thk

2шт.

8

238-5326

O-RING,0.21" Thk x 1.6" ID, -326, Cl 5, 75 Duro

1шт.

9

9617354

ROD

1шт.

10

785811

CYLINDER HEAD

1шт.

11

238-6224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

1шт.

12

86513307

SEAL,31.75mm ID x 37.85mm OD x 6.35mm Thk

1.250" ID x 1.500" OD

1шт.

13

512016

SNAP RING

Int, 2.125"

1шт.

14

529340

SEAL,31.75mm ID x 43.05mm OD x 4.76mm Thk

Rod Wiper

1шт.

15

785812

SEAL KIT

1шт.

16

270103

BACK-UP RING,45.01mm ID x 51mm OD x 1.27mm Thk

Backup, 1.772" ID x .043" Thk

1шт.

17

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 18
