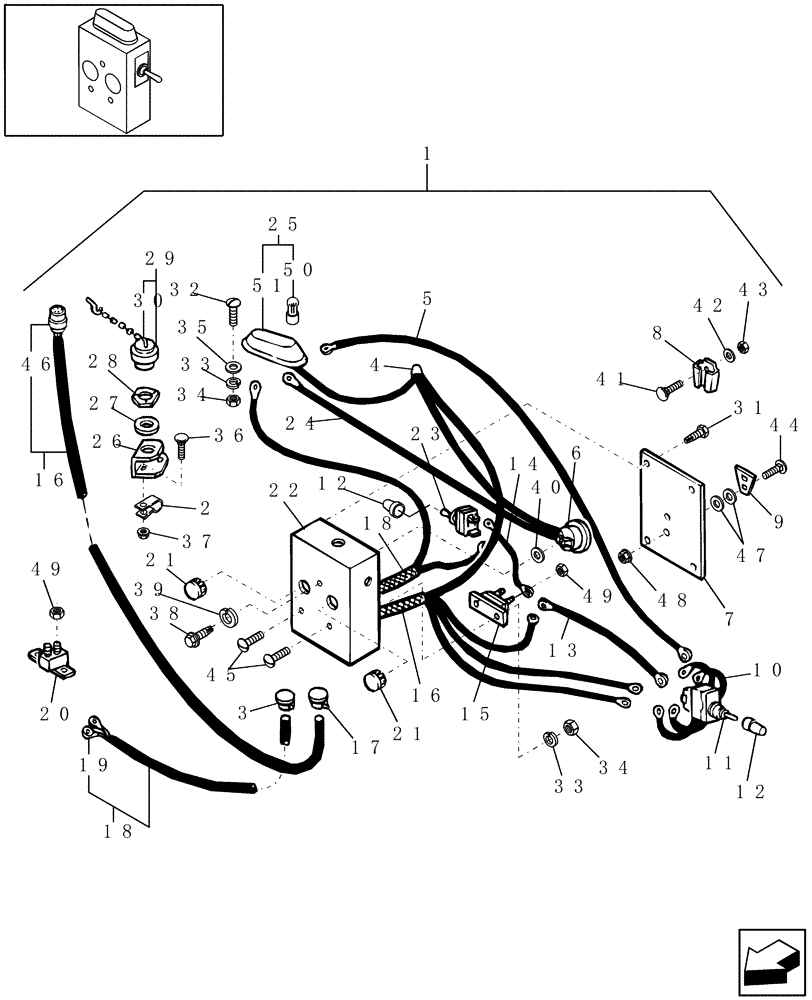

Запчасти Case IH RBX442 (06.16) - ELECTRIC WRAPPER, CONTROL BOX (06) - ELECTRICAL SYSTEMS

1

858911

CONTROL

Box, Electric Twine Wrap

1шт.

2

237980

WIRE CLAMP,11.11mm, Coat, 7.14mm Bolt Hole, P Type

7/16" x 1/4"

1шт.

3

100381

ELEC CONNECTOR

1шт.

4

136224

PLUG

Electrical

1шт.

5

PL

PROCURE LOCALLY

Wire

1шт.

6

701592

BUZZER

1шт.

7

285444

COVER

1шт.

8

847590

BRACKET

Socket

1шт.

9

9801636

BRACKET

Mounting

1шт.

10

254398

WIRE HARNESS

2шт.

11

86516721

SWITCH

Twine Wrapper Control

1шт.

12

602997

TOGGLE SWITCH

2шт.

13

PL

PROCURE LOCALLY

Wire

1шт.

14

PL

PROCURE LOCALLY

Wire

1шт.

15

768120

CIRCUIT BREAKER,20A

1шт.

16

858904

WIRE HARNESS

1шт.

17

PL

PROCURE LOCALLY

Connector

2шт.

18

860003

WIRE HARNESS

Battery to Switch &, Serial Range: Ground-Light

1шт.

19

46432

TERMINAL CONNECTOR,12 - 10 SAE

Ring, #10

2шт.

20

768125

FUSE

1шт.

21

784122

PLUG

Button, 1-1/2"

2шт.

22

858841

BOX

1шт.

23

767915

SWITCH

On/Off Power

1шт.

24

718450

WIRE

1шт.

25

86613396

TAIL LAMP

Full Bale Alarm Lamp

1шт.

26

787868

BRACKET

1шт.

27

636665

LOCK WASHER,43.18mm ID x 52.68mm OD x 1.57mm Thk

1шт.

28

636666

NUT,1 11/16"-18

UNEF-2B, 178" Thick, 1.875 Wide

1шт.

29

767456

PLUG

Dust Cover

1шт.

30

617887

HOOK

S

1шт.

31

275-5478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

4шт.

32

84461

SCREW,Slotted Truss Hd, #10 - 24 x 5/8"

2шт.

33

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

2шт.

34

225-14110

NUT,#10-24

2шт.

35

495-31022

WASHER,#10

1шт.

36

433-412

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3/4", Gr 5

1шт.

37

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

38

81743

SCREW,Slotted Truss Hd, #8 - 32 x 1/2"

1шт.

39

492-11008

LOCK WASHER,#8

1шт.

40

495-31022

WASHER,#10

1шт.

41

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

2шт.

42

80681

LOCK WASHER,5/16"

2шт.

43

9635082

NUT,5/16" - 18, Gr 5

2шт.

44

280327

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

2шт.

45

84821

SCREW,Truss HD, #10 - 24 x 1/2"

2шт.

46

795644

ELEC CONNECTOR

1шт.

47

495-21038

WASHER,5/16"

4шт.

48

145458

SERRATED NUT,5/16"-18 GR 5 ZND

2шт.

49

86625070

NUT,Keps, w/LW,#10-32

2шт.

50

PL

PROCURE LOCALLY

Bulb, Trade #194

1шт.

51

87032435

LENS

Red

1шт.
