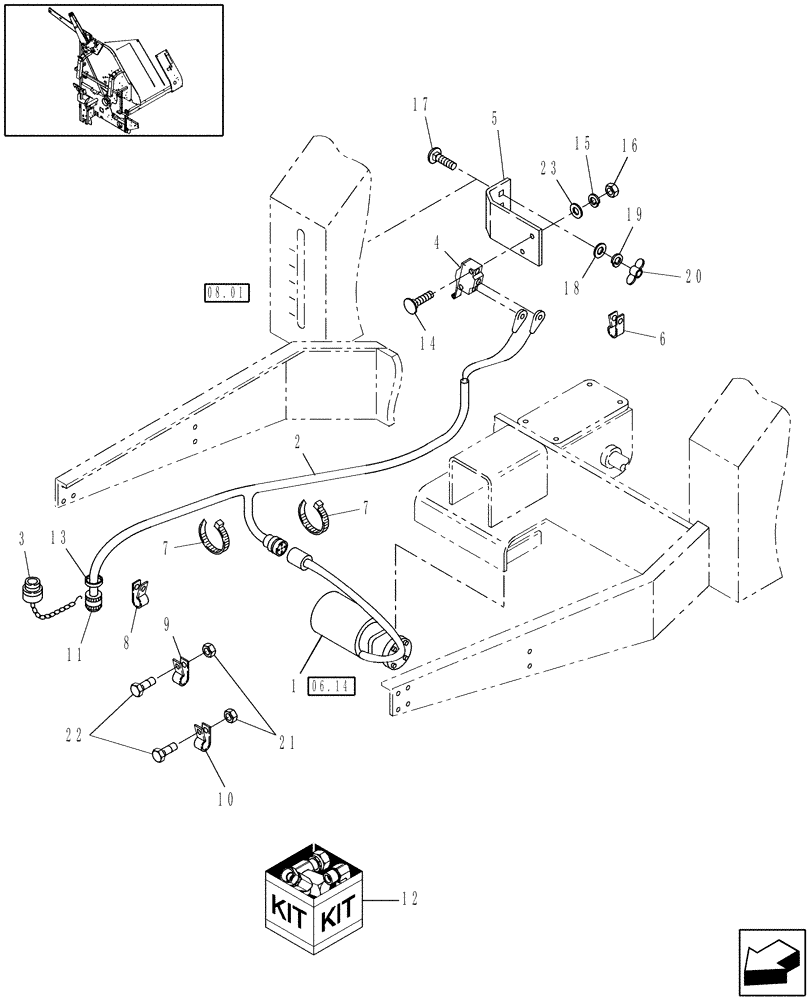

Запчасти Case IH RBX442 (06.15) - ELECTRIC WRAPPER, WIRE HARNESS (06) - ELECTRICAL SYSTEMS

84377502

84377502

ELECTRIC MOTOR

Electric Twine Wrap

1шт.

2

9603713

WIRE HARNESS

1шт.

3

788614

PROTECTING COVER,2" OD x 1.7" Long

Cover

1шт.

4

783681

SWITCH

Micro, SPDT

1шт.

Controls bale size. Buzzer activates when the bale is ready to tie.

1шт.

5

9612255

SUPPORT

1шт.

6

515-2279

CLAMP,5/16", Insul, 5/16" Bolt

1шт.

Use Existing Hardware

1шт.

7

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

2шт.

Attach to Hydraulic Tubing Clamp & Use Clamp Hardware

1шт.

8

237980

WIRE CLAMP,11.11mm, Coat, 7.14mm Bolt Hole, P Type

7/16", 1/4"-bolt

2шт.

Attach to Hydraulic Tubing Clamp & Use Clamp Hardware

1шт.

9

237910

WIRE CLAMP,7.9mm, Coat, 7.1mm Bolt Hole, P Type

1шт.

10

257492

CLAMP,14.3mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

11

795018

WIRE CONNECTOR,9 Pins

1шт.

12

851769

KIT

Pins

1шт.

13

792026

LOCKING RING,1.06" ID x 1.25" OD x 0.13" Thk

Split, Int, 1.00"

1шт.

14

440-10616

SCREW,Cross Pan Hd, #6-32 x 1"

2шт.

15

493-41014

LOCK WASHER,Ext, #6

2шт.

16

225-14106

NUT,#6-32

2шт.

17

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

2шт.

18

495-21031

WASHER,1/4"

2шт.

19

492-11025

LOCK WASHER,1/4"

2шт.

20

129-409

WING NUT,1/4"-20

2шт.

21

832-46406

NUT,M6 x 1, Cl 8

3шт.

22

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

23

495-31016

WASHER,#6

2шт.
