Запчасти Case IH RBX442 (06.13) - LIGHTING (06) - ELECTRICAL SYSTEMS

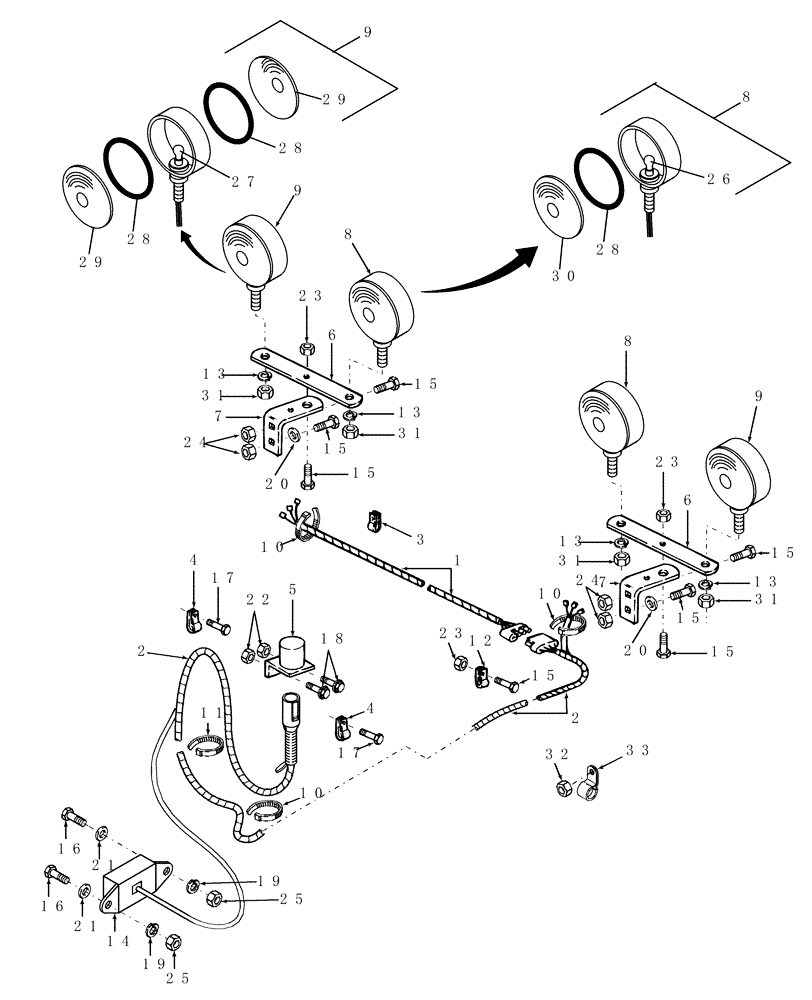

Схема запчастей Case IH RBX442 - (06.13) - LIGHTING (06) - ELECTRICAL SYSTEMS
11
28
20
31
15
15
6
23
28
26
15
30
8
25
33
31
19
5
10
25
31
18
4
31
15
29
22
28
3
20
15
15
8
24
1
13
29
4
13
21
9
13
10
13
9
14
17
17
21
10
2
12
23
8
2
15
9
7
16
19
23
32
6
7
16
24
27

Артикул

Название

Примечание

Количество

1

86559103

WIRE HARNESS

Harness, Lighting

1шт.

2

86559102

WIRE HARNESS

Harness, Lighting

1шт.

3

577927

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

3/4", 13/32" Bolt

1шт.

4

237980

WIRE CLAMP,11.11mm, Coat, 7.14mm Bolt Hole, P Type

7/16" x 1/4" Bolt

7шт.

5

9611467

HOLDER

Plug

1шт.

6

9611465

BRACKET

2шт.

7

9611464

BRACKET

Lamp

2шт.

8

86621619

WARNING LIGHT

Stop, Includes: Ref. 31

2шт.

9

86621618

WARNING LIGHT

Amber, Includes: Ref. 31

2шт.

10

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

8шт.

11

529070

CABLE TIE,368.3mm L

CABLE STRAP

2шт.

12

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

4шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

Use Ref.13 instead of rubber washer that comes with lamps.

1шт.

14

86561136

MODULE

Lighting

1шт.

15

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

8шт.

16

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

17

677808

SELF-TAP SCREW,Hex Flng, 1/4" - 20 x 5/8"

HWH, 1/4"-20 x 5/8"

3шт.

18

844-6016

BOLT,Hvy Hex, M6 x 16mm, Cl 8.8

2шт.

19

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

20

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

21

495-21031

WASHER,1/4"

2шт.

22

825-5146

SERRATED NUT,M6, Flg Ser

2шт.

23

825-5148

SERRATED NUT,M8, Flg Ser

12шт.

24

825-1408

NUT,M8, Cl 8

5шт.

25

425-104

NUT,1/4"-20, Cl 5

2шт.

26

T34857

BULB,C6, #1157, 12.8V

2шт.

27

A41264

BULB,#1156, 12V

2шт.

28

86627435

O-RING,3.484" ID x 0.139" Width

6шт.

29

86622240

LENS

Amber

4шт.

30

86622241

LENS

Red

2шт.

31

NSS

NOT SOLD SEPARAT

Nut

4шт.

32

825-1410

NUT,M10, Cl 8

2шт.

Use Existing Hardware

1шт.

33

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

6шт.

Use Existing Hardware

1шт.

Выбрано товаров: 36
