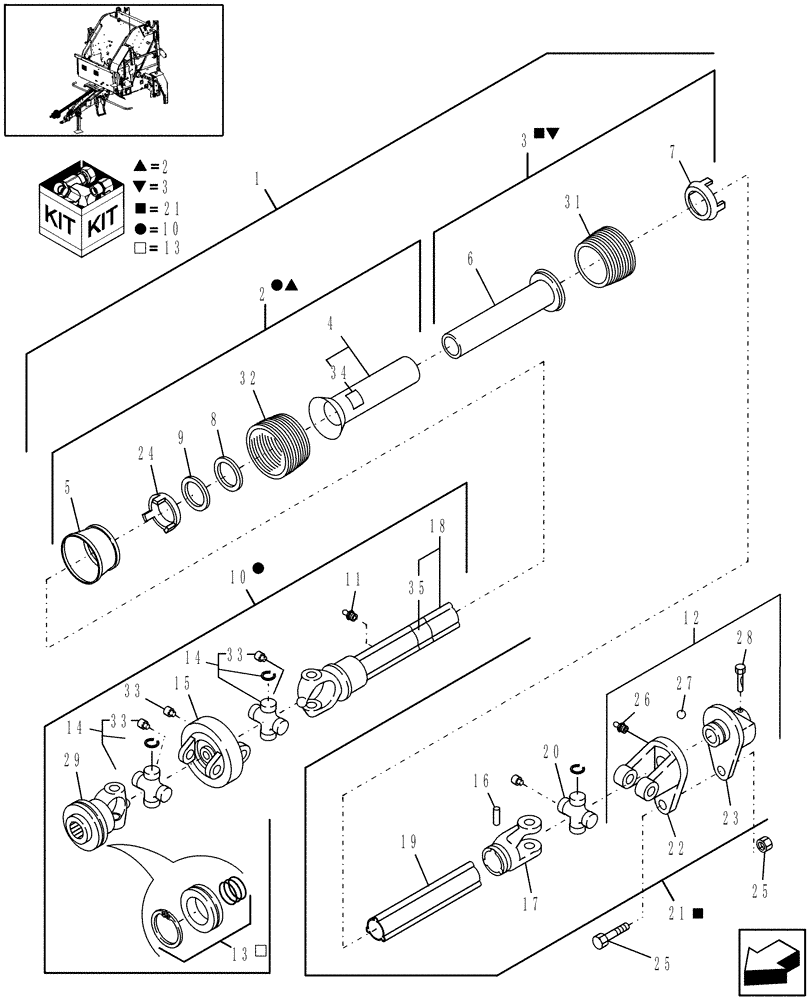

Запчасти Case IH RBX442 (01.30) - POWER TAKE OFF, 540 RPM, SHEARBOLT, NORTH AMERICA (01) - POWER TAKE OFF

1

86604843

PTO

540 RPM, Shearbolt, 1-3/8" Shaft

1шт.

2

86625858

KIT

1шт.

3

86625859

KIT

1шт.

4

NSS

NOT SOLD SEPARAT

Outer Cone W/ Tube, Includes: Ref. 34 & 35

1шт.

5

NSS

NOT SOLD SEPARAT

Shield

1шт.

6

NSS

NOT SOLD SEPARAT

Inner Cone W/ Tube

1шт.

7

86625852

RING NUT

1шт.

8

86625851

RING NUT

1шт.

9

NSS

NOT SOLD SEPARAT

Cone

1шт.

10

86625856

PTO SHAFT

Front, W/ Shields

1шт.

11

87012758

LUBE NIPPLE

LUBRICATOR

1шт.

12

86625876

HUB

Includes Ref. 22, 23, 25 - 28

1шт.

13

86625855

KIT

Ball Collar

1шт.

Components are N.S.S.

1шт.

14

86625850

U-JOINT SPIDER

2шт.

15

86625844

BODY

1шт.

16

86625846

PIN

1шт.

17

86625848

YOKE

1шт.

18

86625847

TUBE,967.50 mm L

1шт.

19

86625845

TUBE,962 mm L

1шт.

20

86625842

BEARING ASSY

1шт.

21

86625857

PTO SHAFT

Rear, W/Shields

1шт.

22

NSS

NOT SOLD SEPARAT

Yoke

1шт.

23

NSS

NOT SOLD SEPARAT

Hub

1шт.

24

86625854

RING NUT

1шт.

25

86643178

BOLT

& Nut, M6 x 45

1шт.

26

NSS

NOT SOLD SEPARAT

Grease Fitting

1шт.

27

87012755

BALL

6.35mm

23шт.

28

NSS

NOT SOLD SEPARAT

1шт.

29

86625841

YOKE

1шт.

30

NSS

NOT SOLD SEPARAT

Cover

1шт.

31

NSS

NOT SOLD SEPARAT

Cover Band

1шт.

32

NSS

NOT SOLD SEPARAT

Cover

1шт.

33

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

4шт.

34

849471

DANGER DECAL

English

1шт.

34

849482

DANGER DECAL

French

1шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary

1шт.

35

849472

DANGER DECAL

English

1шт.

35

849483

DANGER DECAL

French

1шт.

Locate French Decal Adjacent to English Decal Where Possible. Install French Decal Over English Decal Where Necessary

1шт.
