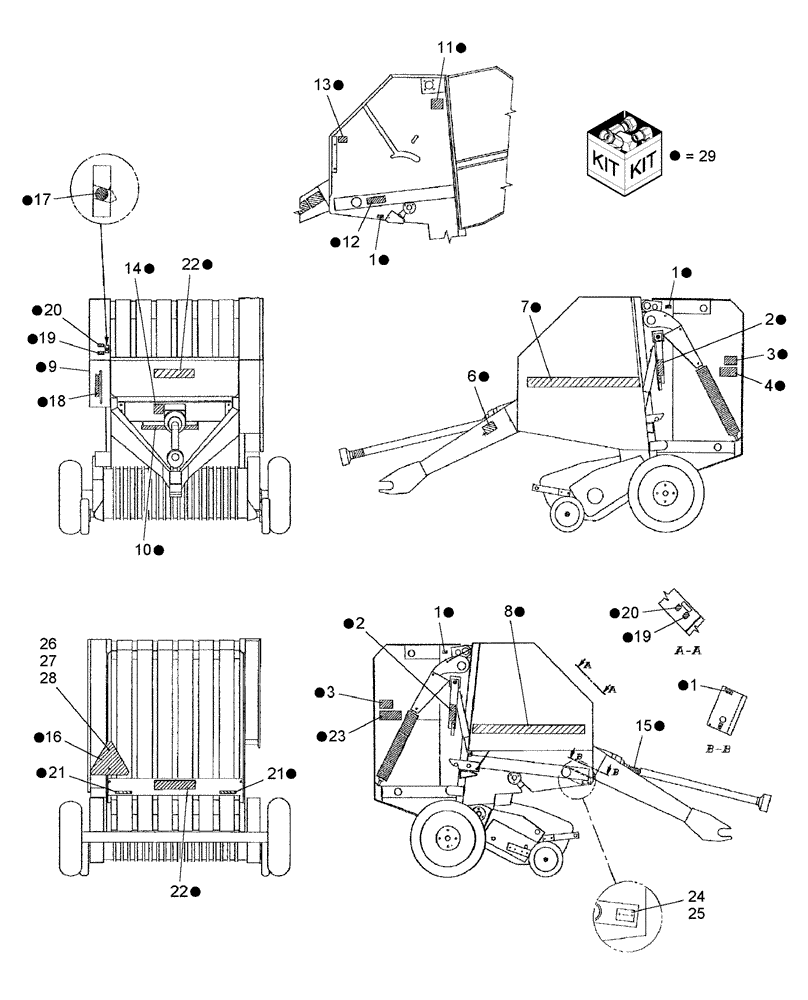

Запчасти Case IH RBX441 (022) - DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

165109

DECAL

Lube Fitting

5шт.

2

265365

DECAL

DANGER

2шт.

3

86631519

DANGER DECAL

DANGER, English

2шт.

3

86632802

DECAL

DANGER, French

2шт.

4

86622073

WARNING DECAL

English

1шт.

4

86622074

WARNING DECAL

WARNING, French

1шт.

5

849471

DANGER DECAL

English

1шт.

5

849482

DANGER DECAL

French

1шт.

6

28296

DECAL

PTO & Hitch Notice

1шт.

7

86624761

DECAL

RBX441, LH

1шт.

8

86624762

DECAL

RBX441, RH

1шт.

9

86640510

DECAL

C-V SB Lube

9шт.

10

86619209

DECAL

Twine Wrap

1шт.

11

9620313

DECAL

Belt Threading

1шт.

12

785888

WARNING DECAL

1шт.

13

718861

DECAL

ATTENTION

1шт.

14

9620001

DECAL

Oil Level

1шт.

15

849472

DANGER DECAL

English

1шт.

15

849483

DANGER DECAL

French

1шт.

16

86547711

DECAL,SMV

SMV

1шт.

17

86619210

DECAL

Circle

1шт.

18

86619204

DECAL

Bale Size

1шт.

19

86619208

DECAL

LATCH CLOSED

1шт.

20

86619207

DECAL

LATCH OPEN

1шт.

21

86547781

REFLECTOR,RED

Tape, Red Retroreflective

2шт.

22

86624776

DECAL

CASE

2шт.

23

86631516

WARNING DECAL

English

1шт.

23

86632799

DANGER DECAL

WARNING, French

1шт.

24

NSS

NOT SOLD SEPARAT

Model ID Plate

1шт.

Not Included in Decal Kit

1шт.

25

86598785

SELF-TAP SCREW

Rd Hd, Stainless Steel, #4 x 1/4"

2шт.

Not Included in Decal Kit

1шт.

26

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

Not Included in Decal Kit

1шт.

27

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

Not Included in Decal Kit

1шт.

28

825-1406

NUT,M6, Cl 8

2шт.

Not Included in Decal Kit

1шт.

29

86618757

DECAL

Kit

1шт.

French Language Option Ordered From Wholegoods

1шт.
