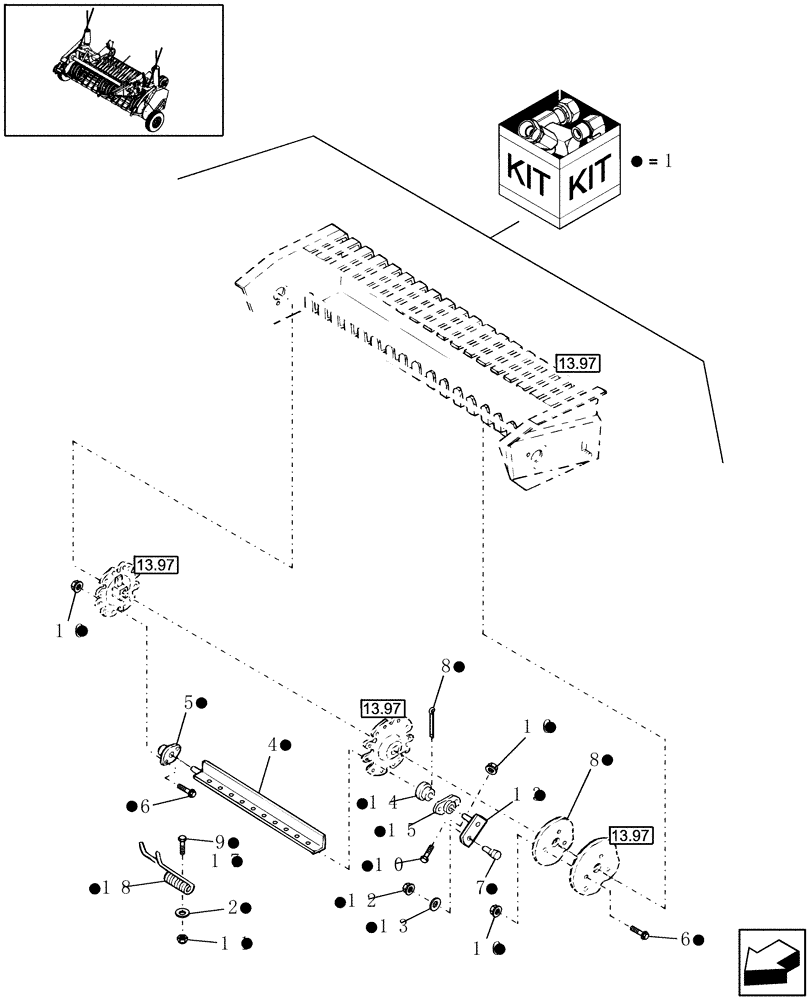

Запчасти Case IH RBX441 (023) - FOUR TINE BAR TO SIX TINE BAR PICKUP CONVERSION KIT (88) - ACCESSORIES

1

86643779

DIA KIT, HARVESTER

6 Bar Conversion, Includes: Ref. 2 - 18 & Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

9618968

WASHER,0.41" ID x 0.78" OD x 0.1" Thk

Plated, HT

18шт.

3

86635216

ARM

2шт.

4

86635045

ANGLE

2шт.

5

638025

FLANGE

2шт.

6

905-10020

BOLT,Hex Flg, M10 x 20mm

8шт.

7

84350126

CAM FOLLOWER,1/2" - 20 x 38mm OD x 54.5mm L

2шт.

8

136521

COTTER PIN,5.7mm OD x 44.45mm L

Hardened, 1/4" x 1-3/4"

2шт.

9

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

10

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

4шт.

11

832-46410

NUT,M10 x 1.5, Cl 8

18шт.

12

88130

NUT,1/2"-20, GC

2шт.

13

495-11053

WASHER,1/2", SAE

4шт.

14

54770

BALL BEARING,27.33 mm ID x 47.092 mm OD x 25.4 mm

2шт.

15

54695

BEARING HOUSING

2шт.

16

825-51410

FLANGE NUT,M10, Flg Ser

12шт.

17

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

16шт.

18

87394242

TORSION SPRING,Coiled, 2 Prong, 186.5mm L

Pickup, Curved, Premium, Standard

56шт.
