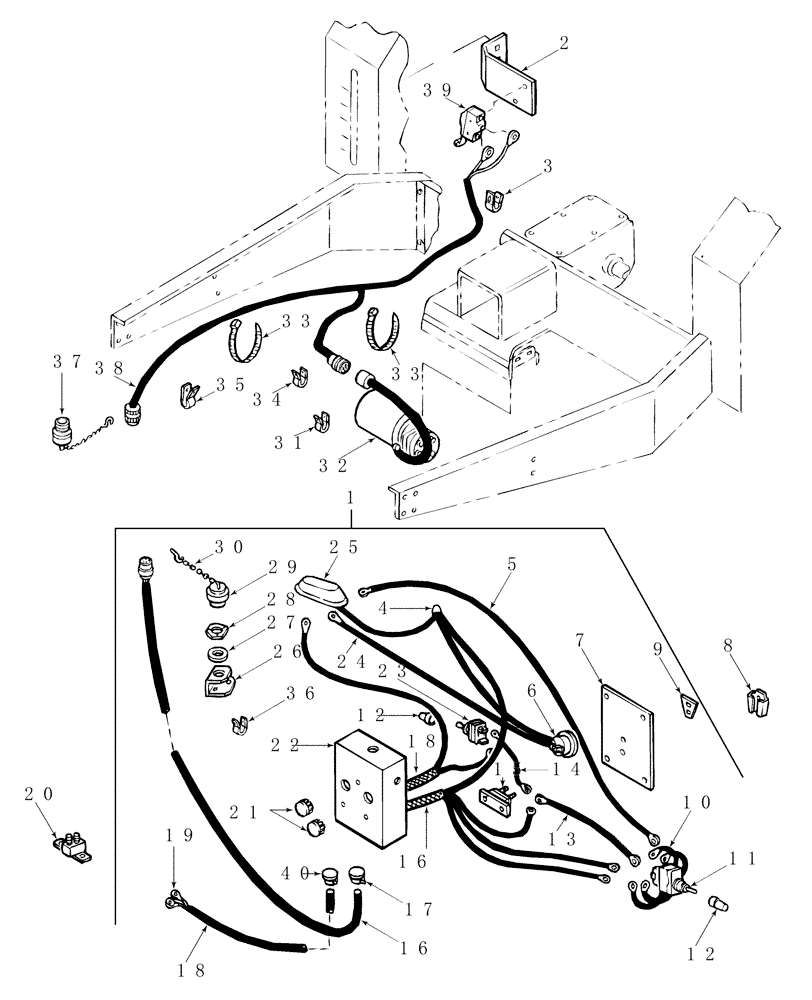

Запчасти Case IH RBX441 (016) - ELECTRIC TWINE WRAPPER CONTROL & MAIN WIRE HARNESS (68) - TYING/WRAPPING

1

858911

CONTROL

Electric Twine Wrapper

1шт.

2

9612255

SUPPORT

1шт.

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

2шт.

495-21031

WASHER,1/4"

2шт.

492-11025

LOCK WASHER,1/4"

2шт.

129-409

WING NUT,1/4"-20

2шт.

3

515-2279

CLAMP,5/16", Insul, 5/16" Bolt

1шт.

4

136224

PLUG

Electrical

1шт.

5

NSS

NOT SOLD SEPARAT

Wire

1шт.

6

701592

BUZZER

1шт.

81743

SCREW,Slotted Truss Hd, #8 - 32 x 1/2"

1шт.

495-31022

WASHER,#10

1шт.

492-11008

LOCK WASHER,#8

1шт.

7

285444

COVER

1шт.

275-5478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

4шт.

8

847590

BRACKET

Socket

1шт.

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

2шт.

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

425-105

NUT,5/16"-18, G5

2шт.

9

9801636

BRACKET

Mounting

1шт.

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

495-21038

WASHER,5/16"

4шт.

10

254398

WIRE HARNESS

Red

2шт.

11

86516721

SWITCH

1шт.

Controls Twine Wrapper

1шт.

495-31016

WASHER,#6

2шт.

12

602997

TOGGLE SWITCH

2шт.

13

PL

PROCURE LOCALLY

Wire

1шт.

14

PL

PROCURE LOCALLY

Wire

1шт.

15

768120

CIRCUIT BREAKER,20A

1шт.

86625070

NUT,Keps, w/LW,#10-32

4шт.

84821

SCREW,Truss HD, #10 - 24 x 1/2"

2шт.

225-14110

NUT,#10-24

2шт.

492-11010

LOCK WASHER,#10

2шт.

16

858904

WIRE HARNESS

Electric Wrap Controller Harness

1шт.

17

NSS

NOT SOLD SEPARAT

Connector

2шт.

18

860003

WIRE HARNESS

Battery to Switch &, Serial Range: Ground-Light

1шт.

59273

TERMINAL CONNECTOR,10 - 12 SAE

Ring, 3/8", 12-10 Ga.

2шт.

167169

TERMINAL

Ring, 1/2"

2шт.

20

768125

FUSE

1шт.

87826

SCREW,Slotted Truss Hd, #10 - 32 x 1"

2шт.

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

2шт.

21

784122

PLUG

1-1/2"

2шт.

22

858841

BOX

Control

1шт.

23

767915

SWITCH

1шт.

On/Off Power Switch

1шт.

24

718450

WIRE

1шт.

25

86613396

TAIL LAMP

1шт.

495-31022

WASHER,#10

1шт.

84461

SCREW,Slotted Truss Hd, #10 - 24 x 5/8"

2шт.

225-14110

NUT,#10-24

2шт.

492-11010

LOCK WASHER,#10

2шт.

87032435

LENS

LENS, Red

1шт.

PL

PROCURE LOCALLY

Bulb, Trade #194 wedge-based

1шт.

26

787868

BRACKET

1шт.

27

636665

LOCK WASHER,43.18mm ID x 52.68mm OD x 1.57mm Thk

1шт.

28

636666

NUT,1 11/16"-18

UNEF-2B, 178" Thick, 1.875" Wide

1шт.

29

767456

PLUG

Dust

1шт.

30

617887

HOOK

S

1шт.

31

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

832-46406

NUT,M6 x 1, Cl 8

1шт.

32

84377502

ELECTRIC MOTOR

1шт.

795230

HYD CONNECTOR

1шт.

900363

TERMINAL

E 18

2шт.

410448

ELECTRIC MOTOR

1шт.

410448R

REMAN-ELECTRIC MOTOR

RBX441

1шт.

410448C

CORE-ELECTRIC MOTOR

Return Number

1шт.

900367

TERMINAL

E18

1шт.

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

495-21019

WASHER,#8

1шт.

614-4016

BOLT,Hex, M4 x 0.7 x 16mm, Cl 8.8, Full Thd

1шт.

33

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

2шт.

34

237910

WIRE CLAMP,7.9mm, Coat, 7.1mm Bolt Hole, P Type

1шт.

832-46406

NUT,M6 x 1, Cl 8

1шт.

35

237980

WIRE CLAMP,11.11mm, Coat, 7.14mm Bolt Hole, P Type

7/16" x 1/4" Bolt

2шт.

832-46406

NUT,M6 x 1, Cl 8

2шт.

36

237980

WIRE CLAMP,11.11mm, Coat, 7.14mm Bolt Hole, P Type

7/16" x 1/4" Bolt

1шт.

493-41026

LOCK WASHER,Ext Tooth, 1/4"

1шт.

425-104

NUT,1/4"-20, Cl 5

1шт.

492-11025

LOCK WASHER,1/4"

1шт.

433-412

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3/4", Gr 5

1шт.

37

788614

PROTECTING COVER,2" OD x 1.7" Long

1шт.

38

9603713

WIRE HARNESS

Main

1шт.

795018

WIRE CONNECTOR,9 Pins

DEUTCH HDB36-24-9PN-059

1шт.

851769

KIT

Pins

1шт.

792026

LOCKING RING,1.06" ID x 1.25" OD x 0.13" Thk

Split, Int, 1.00"

1шт.

39

783681

SWITCH

Micro, SPDT

1шт.

Controls bale size. Buzzer activates when the bale is ready to tie.

1шт.

440-10616

SCREW,Cross Pan Hd, #6-32 x 1"

2шт.

493-41014

LOCK WASHER,Ext, #6

2шт.

225-14106

NUT,#6-32

2шт.

40

100381

ELEC CONNECTOR

1шт.
