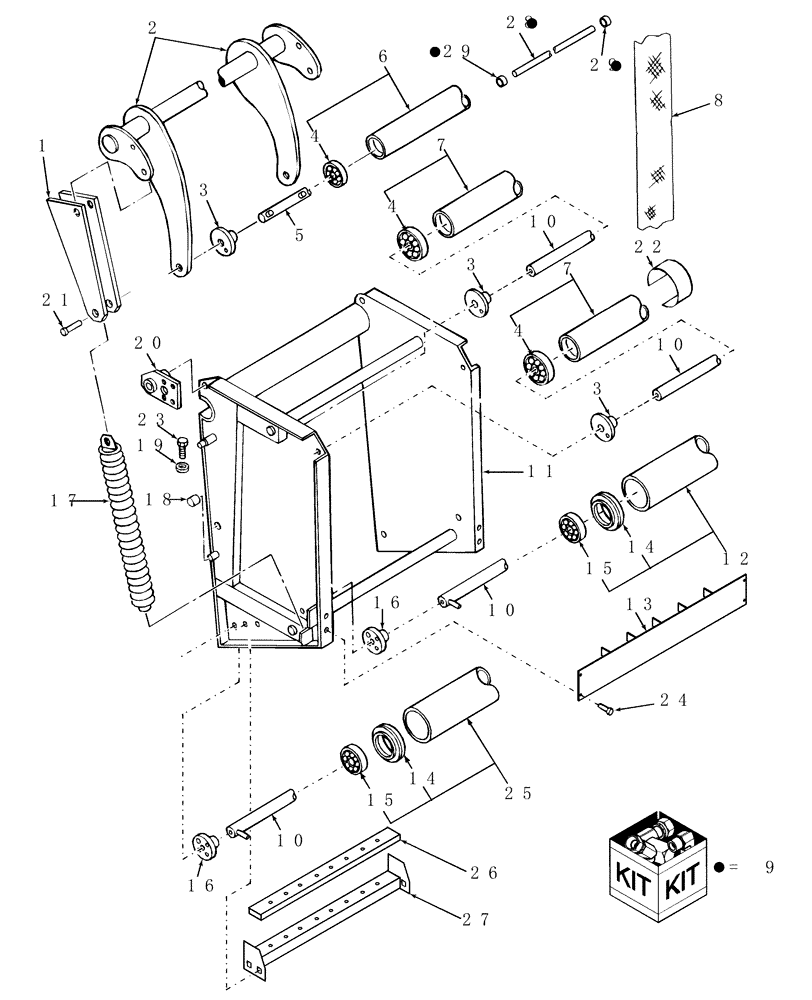

Запчасти Case IH RBX441 (013) - TAILGATE (62) - PRESSING - BALE FORMATION

1

86635367

PLATE

2шт.

2

86635253

LEVER

Tension Arm

1шт.

3

86521602

SUPPORT

6шт.

4

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

6шт.

5

9823372

SHAFT,1135mm L

Includes: (2) 130045 Pins

1шт.

838-5526

LOCK PIN,M5 x 26, Slotted

2шт.

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

6

9842288

ROLLER,88.9mm OD x 1142mm L

1шт.

7

9842286

ROLLER

2шт.

8

86616064

BELT,177.80 mm W x 6921.50 mm L

6шт.

9

86625980

DIA KIT, HARVESTER

Lacing Cable, Includes: (18) Cable Tubes, (8) Lacing Cables & Instructions

1шт.

Lacing Cables 9843257 (8) & Cable Tubes 9843258 (18), Components of Lacing Cable Kit 86625980, available separately, if needed.

1шт.

86618461

BELT,177.80 mm W x 1828.00 mm L

Chevron, Laced, Repair Section

1шт.

9847138

REPAIR KIT

Lacing, Includes: Box of 18 Cards, 45 Hooks per Card

1шт.

10

9823371

SHAFT

Includes: (1) 130045 Pin

4шт.

838-5526

LOCK PIN,M5 x 26, Slotted

4шт.

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

8шт.

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

6шт.

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

17/32" ID x 2" OD x 3/16" Thk

6шт.

788851

WASHER

Heat Treated

2шт.

11

86635378

PANEL ASSY.

Tailgate

1шт.

12

9849616

ROLL

1шт.

13

86635387

GUIDE

Belt

1шт.

14

9608110

HOUSING

4шт.

15

353125

BALL BEARING,45mm ID x 85mm OD x 19mm W

4шт.

16

86635251

SUPPORT

4шт.

17

NSS

NOT SOLD SEPARAT

Spring, Refer to Fig. 012

2шт.

281029

BOLT,Hex, 5/8" - 11 x 6", Gr 5

2шт.

64053

WASHER,16.9mm ID x 38.55mm OD x 4mm Thk

Special, Hardened

2шт.

425-1010

NUT,5/8"-11, G5

2шт.

18

86636674

SPACER,32.15mm ID x 39.68 OD x 29.98mm L

2шт.

164995

WASHER,32.5mm ID x 42.9mm OD x 4.38mm Thk

2шт.

432-1228

COTTER PIN,3/16" x 1 3/4"

2шт.

19

241307

GROMMET

1шт.

20

9612192

BRACKET, PIVOT

PIVOT BRACKET

2шт.

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

8шт.

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

8шт.

829-1412

NUT,M12, Cl 10.9

2шт.

21

72811

CLEVIS PIN,5/8" x 1.72" L

4шт.

495-21069

WASHER,5/8"

4шт.

432-816

COTTER PIN,1/8" x 1"

4шт.

27697

WASHER,16.66mm ID x 27mm OD x 1.52mm Thk

4шт.

22

86516507

ANTI-SKID STRIP

Traction

1шт.

23

413-1664

BOLT,Hex, 1" - 8 x 4", Gr 5

1шт.

24

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

825-51410

FLANGE NUT,M10, Flg Ser

4шт.

25

9849616

ROLL

Loop, Std

1шт.

26

9845575

SCRAPER BLADE

High Moisture

1шт.

391510

SELF-TAP SCREW,Hex Wshr Hd, M8 x 1.25 x 20mm

Self-Tapping, M8 x 20

8шт.

27

86623055

SUPPORT

Scraper

1шт.

811-10020

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 20mm, Cl 8.8

4шт.

825-51410

FLANGE NUT,M10, Flg Ser

4шт.

28

9843257

CABLE

Belt Lacing

8шт.

29

9843258

TUBE

Cable

18шт.
