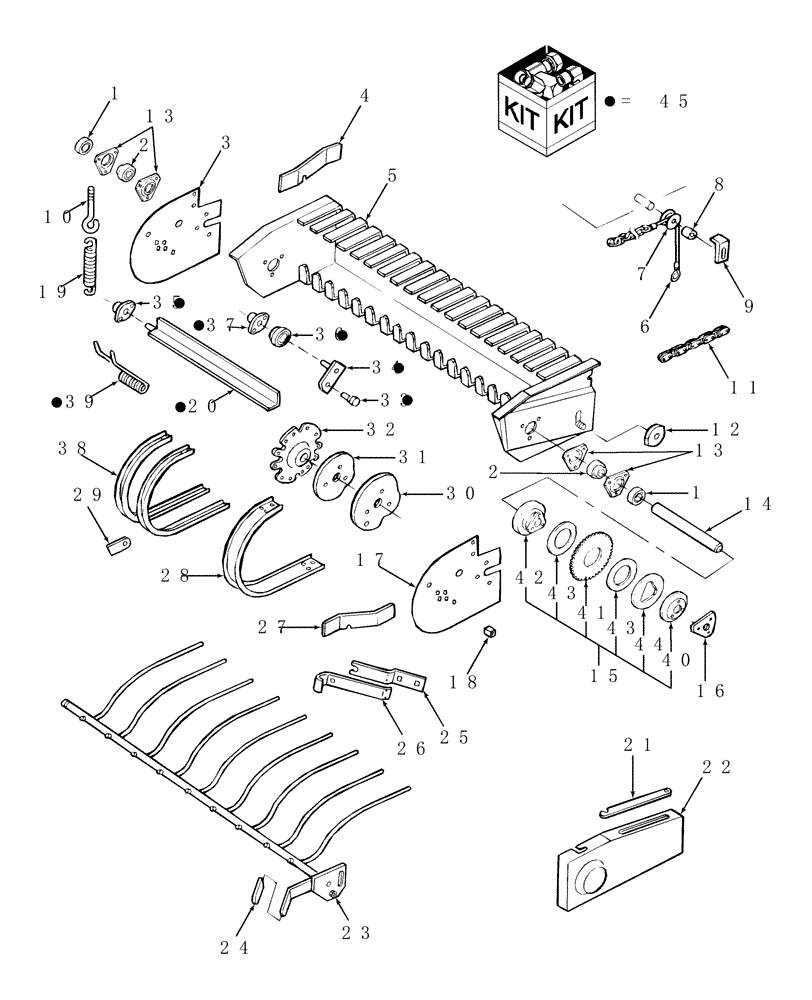

Запчасти Case IH RBX441 (007) - PICKUP (60) - PRODUCT FEEDING

1

557115R11

COLLAR

2шт.

2

455959R92

BEARING ASSY,28.57mm ID x 62mm OD x 18mm W

2шт.

3

86635416

SIDE PLATE

RH

1шт.

4

86635052

DEFLECTOR

RH

1шт.

811-6016

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 16mm, Cl 8.8

2шт.

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

825-1406

NUT,M6, Cl 8

2шт.

5

86635350

HEAD ASSY.

1шт.

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

4шт.

832-46412

NUT,M12 x 1.75, Cl 8

4шт.

6

9619092

CABLE

1шт.

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

495-21044

WASHER,3/8"

1шт.

832-46410

NUT,M10 x 1.5, Cl 8

1шт.

7

382898

PULLEY

1шт.

8

285394

SPACER,10.32mm ID x 15.88mm OD x 14.29mm L

1шт.

9

86635064

ANGLE

2шт.

814-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 8.8

1шт.

495-21044

WASHER,3/8"

2шт.

832-46410

NUT,M10 x 1.5, Cl 8

1шт.

10

45314

EYEBOLT

G2, 3/8"-16 x 7"

1шт.

825-1410

NUT,M10, Cl 8

4шт.

11

225813

CHAIN

Conveyor Drive, #A-2050 Roller Chain, 49 Pitches (47 Regular Links)

1шт.

25810

LINK CHAIN

Offset

1шт.

80025193

CONNECTING LINK

Coupler

1шт.

12

86584050

IDLER

1шт.

495-21056

WASHER,1/2"

2шт.

280517

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 2 3/4", Gr 5

1шт.

232-4148

NUT,1/2"-13, GC

1шт.

13

662649R1

RETAINER

4шт.

905-10020

BOLT,Hex Flg, M10 x 20mm

6шт.

14

9603749

SHAFT

Pickup

1шт.

673

WASHER,29mm ID x 41mm OD x 1.52mm Thk

6шт.

733-5040

COTTER PIN,M5 x 40

1шт.

126-24

WOODRUFF KEY,#15, 1/4" x 1"

1шт.

15

86635138

SLIP CLUTCH

1шт.

16

86636168

BRACKET

1шт.

17

86635414

SIDE PLATE

LH

1шт.

18

44612

SPACER

2шт.

19

86529708

SPRING

1шт.

20

86635045

ANGLE

4шт.

Component of Ref.45, Tine Bar Conversion Kit

1шт.

21

9617379

STRIP-GASKET

1шт.

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

832-46408

NUT,M8 x 1.25, Cl 8

1шт.

495-11034

WASHER,5/16", SAE

1шт.

22

86618993

SHIELD

Pickup

1шт.

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

3шт.

23

86635048

SUPPORT ASSY.

1шт.

Weld-On Tines 602808

1шт.

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

2шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

825-1410

NUT,M10, Cl 8

2шт.

24

791502

HANDLE GRIP

Vinyl

1шт.

25

86635044

BRACKET

2шт.

811-10020

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 20mm, Cl 8.8

4шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

825-1410

NUT,M10, Cl 8

4шт.

26

86635041

LATCH

2шт.

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

4шт.

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

825-1410

NUT,M10, Cl 8

4шт.

27

86635050

DEFLECTOR

LH

1шт.

28

86635007

GUARD

Pickup

2шт.

412093

SELF-TAP SCREW

M6 x 1 x 12

80шт.

29

86635010

BRACKET

2шт.

840-1616

SCREW,Pan, M6 x 16mm, Cl 4.8

Cylinder Hd

2шт.

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

825-1406

NUT,M6, Cl 8

2шт.

30

86635046

CAM

Outer

1шт.

31

86635043

CAM

Inner

1шт.

836-80110

WOODRUFF KEY,M8 x8 11 x 27.35

2шт.

905-10020

BOLT,Hex Flg, M10 x 20mm

3шт.

825-51410

FLANGE NUT,M10, Flg Ser

2шт.

32

86635065

DISC

Finger

2шт.

120071

BOLT,Hex, M10 x 65, 8.8

2шт.

832-46410

NUT,M10 x 1.5, Cl 8

2шт.

905-10020

BOLT,Hex Flg, M10 x 20mm

4шт.

Component of Ref.45, Tine Bar Conversion Kit

1шт.

825-51410

FLANGE NUT,M10, Flg Ser

5шт.

Component of Ref.45, Tine Bar Conversion Kit

1шт.

33

84350126

CAM FOLLOWER,1/2" - 20 x 38mm OD x 54.5mm L

4шт.

Component of Ref.45, Tine Bar Conversion Kit

1шт.

495-11053

WASHER,1/2", SAE

8шт.

Component of Ref.45, Tine Bar Conversion Kit

1шт.

88130

NUT,1/2"-20, GC

4шт.

Component of Ref.45, Tine Bar Conversion Kit

1шт.

34

86635216

ARM

4шт.

Component of Ref.45, Tine Bar Conversion Kit

1шт.

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

16шт.

Component of Ref.45, Tine Bar Conversion Kit

1шт.

825-51410

FLANGE NUT,M10, Flg Ser

16шт.

Component of Ref.45, Tine Bar Conversion Kit

1шт.

35

638025

FLANGE

4шт.

Component of Ref.45, Tine Bar Conversion Kit

1шт.

905-10020

BOLT,Hex Flg, M10 x 20mm

8шт.

825-51410

FLANGE NUT,M10, Flg Ser

8шт.

Component of Ref.45, Tine Bar Conversion Kit

1шт.

36

54770

BALL BEARING,27.33 mm ID x 47.092 mm OD x 25.4 mm

4шт.

Component of Ref.45, Tine Bar Conversion Kit

1шт.

136521

COTTER PIN,5.7mm OD x 44.45mm L

Hardened, 1/4" x 1-3/4"

4шт.

Component of Ref.45, Tine Bar Conversion Kit

1шт.

37

54695

BEARING HOUSING

4шт.

Component of Ref.45, Tine Bar Conversion Kit

1шт.

905-10020

BOLT,Hex Flg, M10 x 20mm

8шт.

825-51410

FLANGE NUT,M10, Flg Ser

8шт.

Component of Ref.45, Tine Bar Conversion Kit

1шт.

38

86619049

GUARD ASSY.

Pickup, 43.9"

17шт.

39

87394242

TORSION SPRING,Coiled, 2 Prong, 186.5mm L

Pickup, Curved, Premium, Standard

36шт.

Component of Ref.45, Tine Bar Conversion Kit

1шт.

39

87607074

TINE

Pickup, Curved, Economy, Optional

36шт.

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

4шт.

Component of Ref.45, Tine Bar Conversion Kit

1шт.

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

32шт.

Component of Ref.45, Tine Bar Conversion Kit

1шт.

9618968

WASHER,0.41" ID x 0.78" OD x 0.1" Thk

Heat-Treated

36шт.

Component of Ref.45, Tine Bar Conversion Kit

1шт.

832-46410

NUT,M10 x 1.5, Cl 8

32шт.

Component of Ref.45, Tine Bar Conversion Kit

1шт.

825-51410

FLANGE NUT,M10, Flg Ser

4шт.

Component of Ref.45, Tine Bar Conversion Kit

1шт.

40

121092

BELLEVILLE WASHER,35mm ID x 117.5mm OD x 3.5mm Thk

1шт.

41

86637250

DRIVEN SPROCKET

Includes 49686 Bushing

1шт.

42

86635141

HUB

Clutch

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

43

127434

DISC,77.7mm ID x 146mm OD x 3.56mm Thk

Friction

2шт.

44

86627129

CLUTCH PLATE

1шт.

45

86643779

DIA KIT, HARVESTER

Tine Bar Conversion, Refer to Fig. 023

1шт.

Kit contains all parts & hardware required to change a 4 Tine Bar Pickup to a 6 Tine Bar Pickup

1шт.
