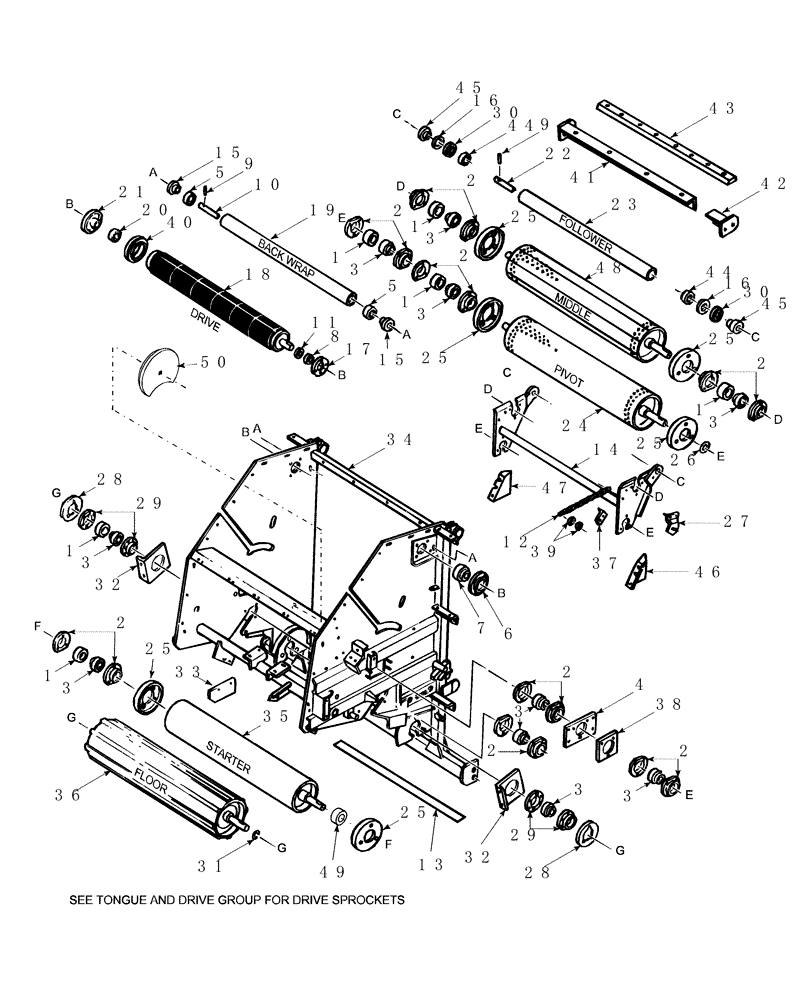

Запчасти Case IH RBX441 (006) - MAIN FRAME (39) - FRAMES AND BALLASTING

1

517645R11

COLLAR

Locking, Includes: Set Screw

6шт.

2

86620026

FLANGED BEARING

16шт.

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

6шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

3

571588R92

BALL BEARING,1.3755" ID x 72 mm OD x 1"

10шт.

9800957

WASHER,35.81mm ID x 50.8mm OD x 1.52mm Thk

9шт.

4

9808527

PLATE

2шт.

825-51410

FLANGE NUT,M10, Flg Ser

8шт.

5

112041R91

BALL BEARING

2шт.

6

9608076

BEARING ASSY,82.6 mm ID x 138 mm OD x 24 mm

Includes: Ref. 7

1шт.

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

7

96328C1

BALL BEARING,40mm ID x 80mm OD x 22mm W

1шт.

8

140194

WASHER,41mm ID x 48 mm OD x 1mm Tk

M40

1шт.

9

838-5526

LOCK PIN,M5 x 26, Slotted

3шт.

10

9823371

SHAFT

Includes: (1) Ref. 9

1шт.

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

2шт.

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

11

86636675

WASHER,40mm ID x 51.2mm OD x 4mm Thk

Radiused

1шт.

12

143360

CHAIN

2шт.

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

495-21038

WASHER,5/16"

2шт.

832-46408

NUT,M8 x 1.25, Cl 8

2шт.

13

9840158

KIT

Floor Roller Traction, 3" x 44"

1шт.

14

86635388

SUPPORT

Roller

1шт.

15

86521602

SUPPORT

2шт.

16

9841725

O-RING,0.21" Thk x 1.85" ID, -328, 40 Duro

M47.00 ID x 5.3

2шт.

17

86635219

COVER

1шт.

18

86592924

ROLLER

Drive

1шт.

43167

BOLT,Hex, M16 x 30mm, Cl 8.8, Full Thd

1шт.

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

1шт.

495-21069

WASHER,5/8"

1шт.

19

9842286

ROLLER

Includes: Bearings & Roller

1шт.

20

353125

BALL BEARING,45mm ID x 85mm OD x 19mm W

1шт.

21

86635217

SUPPORT

1шт.

22

9823372

SHAFT,1135mm L

Includes: Ref. 9

1шт.

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

2шт.

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

23

9842288

ROLLER,88.9mm OD x 1142mm L

Idler, Includes Bearings & Roller

1шт.

24

86635335

ROLLER

Front, Fixed Roller & Pivot Roller

1шт.

25

86635330

COVER

Roller End

6шт.

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

6шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

6шт.

825-51410

FLANGE NUT,M10, Flg Ser

6шт.

26

626286

SNAP RING

Ext, 1.50"

1шт.

27

9609939

SUPPORT

1шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

6шт.

28

86635211

RING

2шт.

412093

SELF-TAP SCREW

M6 x 1 x 12

6шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

825-1410

NUT,M10, Cl 8

6шт.

29

86635012

FLANGE

Bearing

4шт.

30

9805640

SHIELD,38.3mm ID x 74.5mm OD x 3.5mm Thk

Seal

2шт.

31

626286

SNAP RING

Ext, 1.50"

1шт.

32

86635256

SUPPORT

Pickup

2шт.

33

86618991

SHIELD

1шт.

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

1шт.

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

814-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

1шт.

34

86517084

FRAME

Main

1шт.

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

2шт.

35

86635334

ROLLER

Smooth

1шт.

36

86635336

ROLLER

Floor, Front

1шт.

37

9609940

ANGLE

2шт.

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

825-1410

NUT,M10, Cl 8

2шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

832-46410

NUT,M10 x 1.5, Cl 8

2шт.

38

9808762

SHIM

1шт.

39

213404

SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL

3/16" x 13/32" ID x 1-1/2" OD

4шт.

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

2шт.

825-1410

NUT,M10, Cl 8

2шт.

832-46410

NUT,M10 x 1.5, Cl 8

2шт.

40

9608110

HOUSING

1шт.

41

86623055

SUPPORT

1шт.

Scraper Roller, Ref. 23, fits inside the ears of the Sledge, Ref. 14, at location C.

1шт.

825-5148

SERRATED NUT,M8, Flg Ser

1шт.

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

42

86623055

SUPPORT

Angle

1шт.

Scraper Roller, Ref. 23, fits inside the ears of the Sledge, Ref. 14, at location C.

1шт.

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

825-5148

SERRATED NUT,M8, Flg Ser

1шт.

43

86631450

SCRAPER BLADE

Blade, Scraper, Optional for High Moisture Conditions

1шт.

Scraper Roller, Ref. 23, fits inside the ears of the Sledge, Ref. 14, at location C.

1шт.

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

8шт.

825-5148

SERRATED NUT,M8, Flg Ser

8шт.

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

905-8016

BOLT,Hex Flg, M8 x 16mm

4шт.

44

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

2шт.

45

9805638

SUPPORT

2шт.

46

9822830

SHIELD

LH

1шт.

461-7258

HEX SOC SCREW,Btn Hd, 1/4"-20 x 1/2"

2шт.

47

9822833

SHIELD

RH

1шт.

461-7258

HEX SOC SCREW,Btn Hd, 1/4"-20 x 1/2"

2шт.

48

86635369

ROLLER

Top

1шт.

49

86631337

SPACER

1шт.

50

86503055

DISC

Infeed

2шт.

86635011

BUSHING

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

425-108

NUT,1/2" - 13, Gr 5

2шт.

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

2шт.
