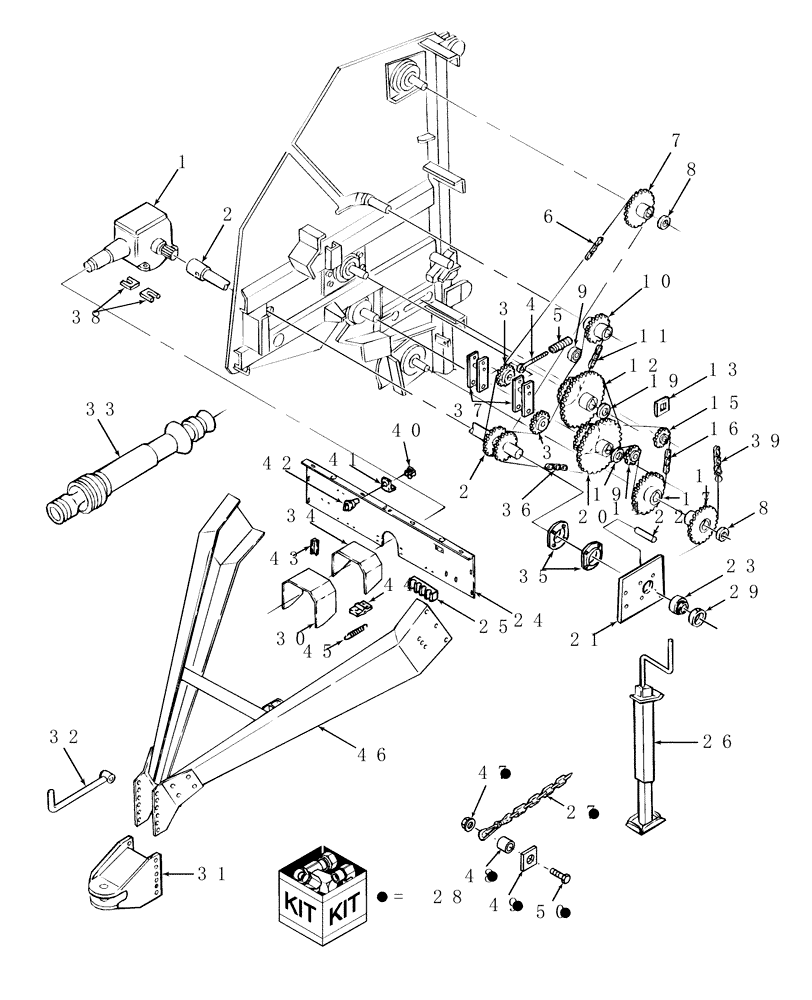

Запчасти Case IH RBX441 (005) - MAIN DRIVE & TONGUE (39) - FRAMES AND BALLASTING

1

86635212

GEARBOX

Main Drive, 540 RPM, Refer to Fig. 002

1шт.

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

4шт.

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

4шт.

832-46412

NUT,M12 x 1.75, Cl 8

4шт.

2

86635333

SHAFT

1шт.

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

140194

WASHER,41mm ID x 48 mm OD x 1mm Tk

M40

1шт.

140109

WASHER,31mm ID x 40mm OD x 2mm Thk

1шт.

3

511265

SPROCKET

Idler

2шт.

4

334965

BANJO BOLT

M12 x 1.75 x 160

2шт.

829-1412

NUT,M12, Cl 10.9

4шт.

495-11034

WASHER,5/16", SAE

2шт.

832-46412

NUT,M12 x 1.75, Cl 8

2шт.

5

86635207

SPRING

2шт.

6

86639346

CHAIN

RC60, 142 Pitches, Belt Drive

1шт.

86595266

CONNECTING LINK

Cotter Pin Type

1шт.

7

9822643

DRIVING SPROCKET

25T, Belt Drive

1шт.

140194

WASHER,41mm ID x 48 mm OD x 1mm Tk

M40

1шт.

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

170015

KEY,12mm x 8mm x 32mm

1шт.

8

136443

WASHER,10.32mm ID x 57.15mm OD x 4.8mm Thk

3/8"

2шт.

9

86514717

IDLER WHEEL

1шт.

811-12060

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 60mm, Cl 8.8

1шт.

495-11034

WASHER,5/16", SAE

1шт.

832-46412

NUT,M12 x 1.75, Cl 8

1шт.

10

9822046

DRIVEN SPROCKET

1шт.

393597

SET SCREW,Sq Hd, M8 x 20mm, Cl 12.9

Sq Hd, CL 12.9, M8 x 2.5 x 20

2шт.

825-1408

NUT,M8, Cl 8

2шт.

126-47

WOODRUFF KEY,#28, 5/16" x 2 1/8"

1шт.

11

52555

CHAIN

RC50, 57 Pitches, Front Roll Drive

1шт.

25816

OFFSET LINK

1шт.

For tolerance variation on Sledge Roller Drive Chain

1шт.

25194

CONNECTING LINK

Spring Clip Type

1шт.

12

9822045

DRIVEN SPROCKET

Double, 40T/24T

1шт.

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

9800957

WASHER,35.81mm ID x 50.8mm OD x 1.52mm Thk

1шт.

126-47

WOODRUFF KEY,#28, 5/16" x 2 1/8"

1шт.

13

624471

REINFORCEMENT

2шт.

14

9826487

DRIVING SPROCKET

15T

1шт.

100-21185

SNAP RING,1.852", Int, #185

1шт.

29941

BALL BEARING

Double Shield

1шт.

47407

WASHER,16.7mm ID x 33.3mm OD x 0.75mm Thk

1шт.

495-11066

WASHER,5/8", SAE

1шт.

434-1044

CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 2 3/4", Gr 5

1шт.

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

1шт.

425-1010

NUT,5/8"-11, G5

1шт.

15

511265

SPROCKET

Idler

1шт.

495-11066

WASHER,5/8", SAE

1шт.

434-1044

CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 2 3/4", Gr 5

1шт.

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

1шт.

425-1010

NUT,5/8"-11, G5

1шт.

16

9800063

CHAIN

RC60, 97 Pitches

1шт.

86595266

CONNECTING LINK

1шт.

86595275

OFFSET LINK

1шт.

17

9822048

DRIVING SPROCKET

32T, Floor Roll Drive

1шт.

9800957

WASHER,35.81mm ID x 50.8mm OD x 1.52mm Thk

1шт.

126-47

WOODRUFF KEY,#28, 5/16" x 2 1/8"

1шт.

18

86505805

DRIVEN SPROCKET

34T, Pickup

1шт.

126-47

WOODRUFF KEY,#28, 5/16" x 2 1/8"

1шт.

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

19

623303

WASHER,10.32mm ID x 47.63mm OD x 4.76mm Thk

2шт.

20

9808390

DRIVEN SPROCKET

Double, 40T/27T

1шт.

9800957

WASHER,35.81mm ID x 50.8mm OD x 1.52mm Thk

1шт.

495-11066

WASHER,5/8", SAE

1шт.

126-47

WOODRUFF KEY,#28, 5/16" x 2 1/8"

1шт.

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

21

86635331

PLATE

1шт.

905-12025

BOLT,Hex Flg, M12 x 25mm

2шт.

811-12030

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 30mm, Cl 8.8

4шт.

832-46412

NUT,M12 x 1.75, Cl 8

4шт.

22

86635139

SPACER

1шт.

814-12140

BOLT,Hex, M12 x 1.75 x 140mm, Cl 8.8

1шт.

832-46412

NUT,M12 x 1.75, Cl 8

1шт.

23

664073R92

BALL BEARING,38.1mm ID x 80mm OD x 21mm W

1шт.

24

86635339

PANEL

1шт.

495-21044

WASHER,3/8"

3шт.

25

52367

HOLDER

Shear Bolt

1шт.

Refer to Figure 001 for Shear Bolt & Nut

1шт.

26

NSS

NOT SOLD SEPARAT

Jack, Refer to Fig. 003

1шт.

27

850116

CHAIN

Safety Tow

1шт.

28

86621157

KIT

Safety Chain

1шт.

29

455112R11

COLLAR

& Screw

1шт.

30

86635340

SHIELD

1шт.

31

86635209

HITCH

1шт.

614-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

3шт.

130358

WASHER,16.28mm ID x 38.35mm OD x 4.11mm Thk

Hardened, 5/8"

8шт.

832-46416

NUT,M16 x 2, Cl 8

8шт.

614-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 8.8, Full Thd

1шт.

814-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 8.8

1шт.

32

9609916

ARM

1шт.

832-46416

NUT,M16 x 2, Cl 8

2шт.

27697

WASHER,16.66mm ID x 27mm OD x 1.52mm Thk

2шт.

33

NSS

NOT SOLD SEPARAT

Power Take Off, Refer to Fig. 001

1шт.

34

86635341

YOKE

1шт.

35

86620027

FLANGED BEARING,80.02mm ID x 147.6mm OD x 4mm Thk

2шт.

36

166446

CHAIN

RC60, 102 Pitches

1шт.

86595266

CONNECTING LINK

1шт.

37

86635214

ARM

Idler

2шт.

614-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 8.8, Full Thd

2шт.

832-46416

NUT,M16 x 2, Cl 8

2шт.

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

495-11034

WASHER,5/16", SAE

7шт.

832-46412

NUT,M12 x 1.75, Cl 8

4шт.

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

2шт.

814-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

1шт.

814-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8

1шт.

432840

SPACER

2шт.

38

163962

SHIM,.015" Thk

1шт.

39

86837557

CHAIN

RC2050, 50 Pitches

1шт.

80025193

CONNECTING LINK

1шт.

40

9840986

CLIP

1шт.

41

86504907

BRACKET

1шт.

42

E9NN16N738AB

LATCH

1/4" Turn

1шт.

43

86516805

SOFT TRIM,31-3/4" L

Edging

1шт.

44

43290

HINGE

2шт.

45

18

SPRING

1шт.

46

86635390

SUPPORT ASSY.

Channel

1шт.

814-16120

BOLT,Hex, M16 x 2 x 120mm, Cl 8.8

8шт.

832-46416

NUT,M16 x 2, Cl 8

8шт.

130358

WASHER,16.28mm ID x 38.35mm OD x 4.11mm Thk

Hardened, 5/8"

8шт.

47

85700693

NUT,5/8" - 11, Gr C

1шт.

48

86607695

SPACER,17.48mm ID x 28.6mm OD x 20.6mm L

1шт.

49

BER714680

PLATE

1шт.

50

413-10104

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

1шт.

51

814-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 8.8

4шт.

52

814-16120

BOLT,Hex, M16 x 2 x 120mm, Cl 8.8

4шт.

53

130358

WASHER,16.28mm ID x 38.35mm OD x 4.11mm Thk

20шт.

54

832-46416

NUT,M16 x 2, Cl 8

13шт.
