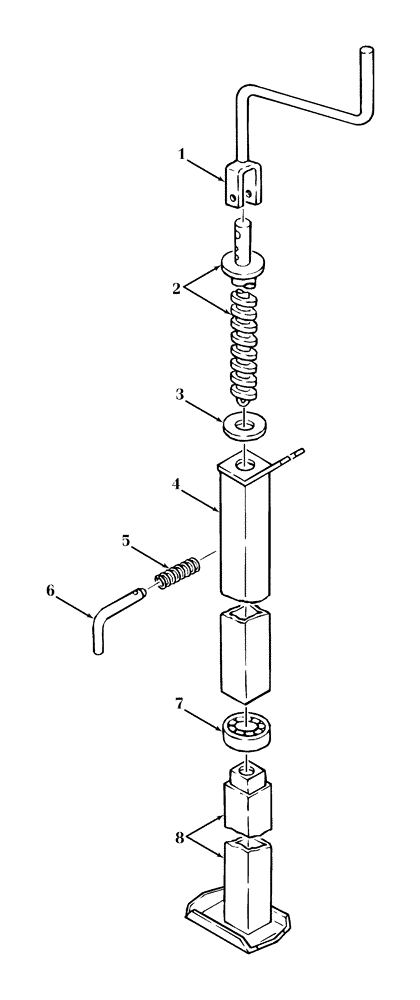

Запчасти Case IH RBX441 (003) - JACK (39) - FRAMES AND BALLASTING

1

86609845

CRANKED HANDLE

1шт.

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

1шт.

378244

WASHER,10.5mm ID x 24mm OD x 2mm Thk

1шт.

832-46410

NUT,M10 x 1.5, Cl 8

1шт.

2

604231

JACK SCREW

1шт.

38-11624

LOCK PIN,1/4" x 1 1/2", Slotted

2шт.

38-11216

LOCK PIN,3/16" x 1", Slotted

1шт.

3

495-21081

WASHER,3/4"

1шт.

4

86635208

TUBE

1шт.

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

5

26538

SPRING

1шт.

6

86611330

PIN,16.56mm OD

Jack

1шт.

38-1820

LOCK PIN,1/8" x 1 1/4", Slotted

1шт.

7

9801922

THRUST BEARING,19.25mm ID x 35.97mm OD x 11.76mm W

Thrust

1шт.

8

86619703

JACK ASSY.

Inside

1шт.
