Запчасти Case IH RBX441 (011[2]) - HYDRAULIC CYLINDER, TAILGATE LIFT, 87019610 (35) - HYDRAULIC SYSTEMS

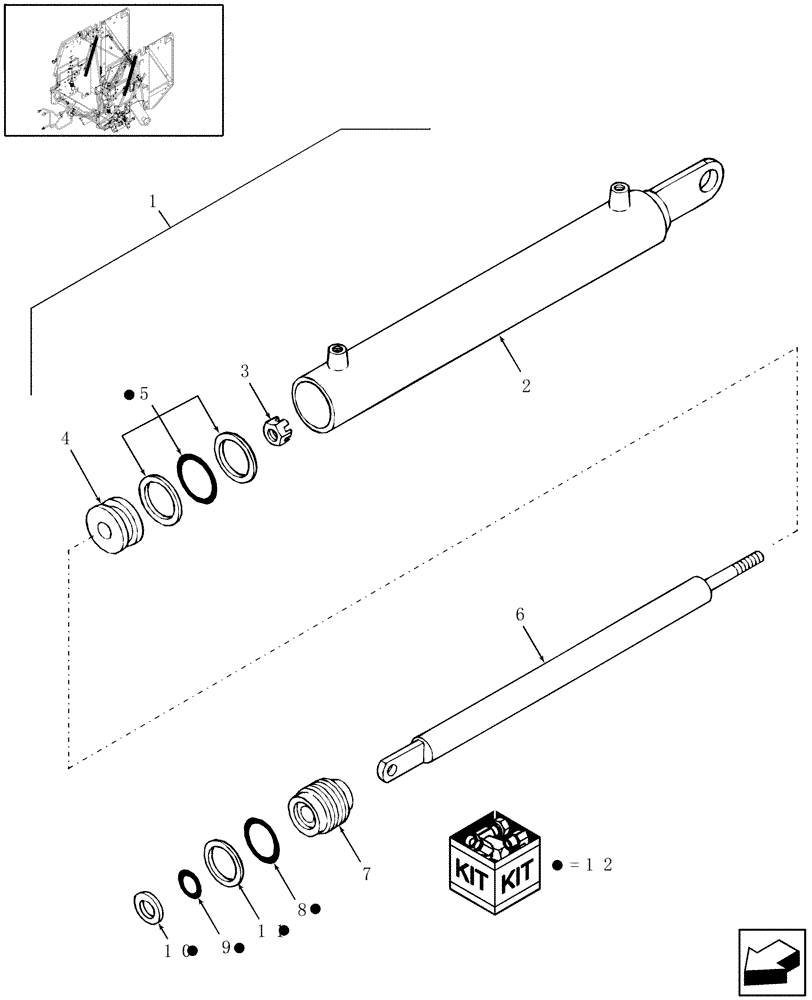

Схема запчастей Case IH RBX441 - (011[2]) - HYDRAULIC CYLINDER, TAILGATE LIFT, 87019610 (35) - HYDRAULIC SYSTEMS
5
2
9
3
4
11
8
10
7
12
1
6

Артикул

Название

Примечание

Количество

1

87019610

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 381mm Stroke

Tailgate Lift

1шт.

Manufacturer's Production Date Stamp - (ex. M 02 2003 = M / week / year )

1шт.

2

NSS

NOT SOLD SEPARAT

Tube

1шт.

3

280724

LOCK NUT,3/4" - 16

1шт.

4

87025721

PISTON

1шт.

5

86553483

SEAL

3 Piece, Piston

1шт.

6

87026063

PISTON ROD

1шт.

7

87025720

HEAD

1шт.

8

238-6224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

1шт.

9

86513307

SEAL,31.75mm ID x 37.85mm OD x 6.35mm Thk

1.250" ID x 1.500" OD

1шт.

10

529340

SEAL,31.75mm ID x 43.05mm OD x 4.76mm Thk

Rod Wiper

1шт.

11

270103

BACK-UP RING,45.01mm ID x 51mm OD x 1.27mm Thk

Backup, 1.772" ID x .043" Thk

1шт.

12

87025441

SEAL KIT

1шт.

Выбрано товаров: 13
