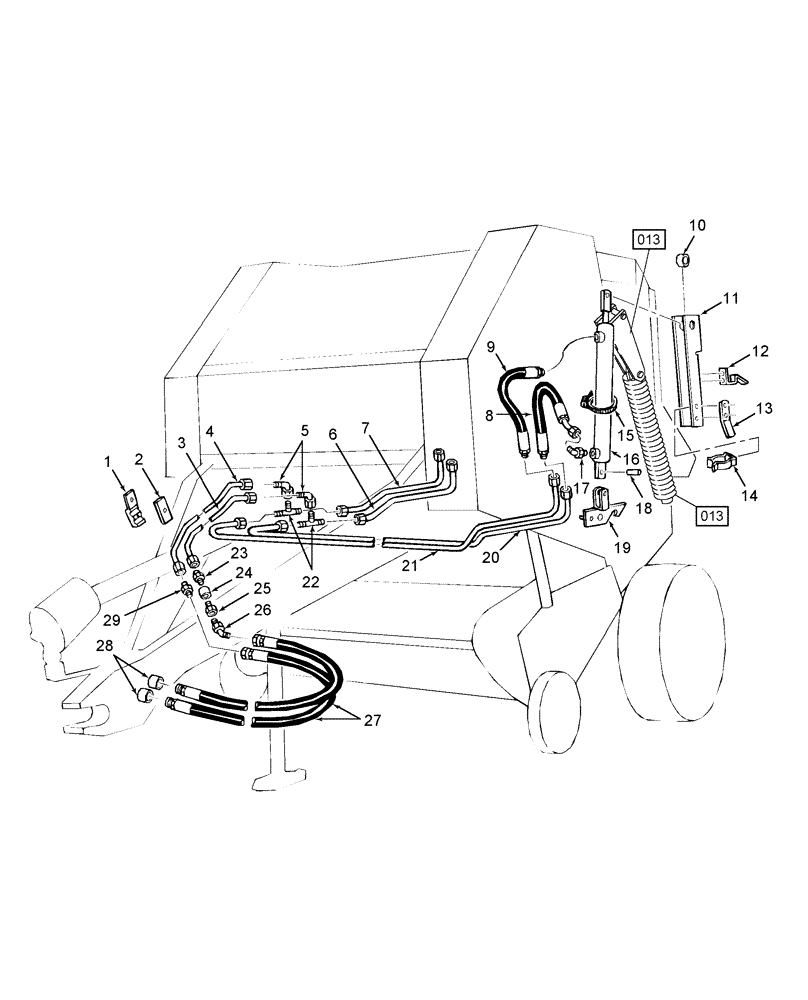

Запчасти Case IH RBX441 (010) - HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

604896

CLAMP,Dual, 3/8" Hose, 6mm Bolt

Double, 3/8" Tubing

8шт.

832-46406

NUT,M6 x 1, Cl 8

4шт.

2

86509354

PLATE,9/32" ID x 3/4" W x 2" L

Tab

8шт.

3

9616739

HYD TUBE

1шт.

4

9616738

HYD TUBE

1шт.

5

592984

NUT

Swivel Nut

2шт.

6

9616737

HYD TUBE

1шт.

7

9619096

HYD TUBE

1шт.

8

698307

FLEXIBLE HOSE,9.53mm ID x 381mm L, SAE 100R1

2шт.

9

86503170

FLEXIBLE HOSE

2шт.

10

86635142

SPACER

2шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

2шт.

26130

WASHER,26mm ID x 35mm OD x 1.7mm Thk

1шт.

11

86635348

LATCH ASSY.

2шт.

Prior to P.I.N. HBJ_______

1шт.

Use with Ref. 16, Hydraulic Lift Cylinder Marked - 02 03 ( week / year )

1шт.

11

87036485

LATCH

2шт.

P.I.N. HBJ_______ & After

1шт.

Use with Ref. 16, Hydraulic Lift Cylinder Marked - M 02 2003 = ( M / week / year )

1шт.

25769

WASHER,25.8mm ID x 49.21mm OD x 3.17mm Thk

2шт.

26130

WASHER,26mm ID x 35mm OD x 1.7mm Thk

2шт.

12

699386

SPRING

2шт.

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

4шт.

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

425-104

NUT,1/4"-20, Cl 5

4шт.

13

698306

ANGLE

2шт.

905-8020

BOLT,Hex Flg, M8 x 20mm

4шт.

825-5148

SERRATED NUT,M8, Flg Ser

4шт.

14

640576

CLIP

2шт.

905-8020

BOLT,Hex Flg, M8 x 20mm

2шт.

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

15

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

2шт.

16

86635365

CYLINDER ASSY.

Tailgate Lift, Serial Range: Refer-Fig.011(1)

2шт.

Manufacturer's Production Date Stamp - (ex. 02 03 = week / year )

1шт.

Prior to P.I.N. HBJ_______

1шт.

16

87019610

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 381mm Stroke

Tailgate Lift, Refer to Fig. 011(2)

2шт.

P.I.N. HBJ_______ & After

1шт.

Manufacturer's Production Date Stamp - (ex. M 02 2003 = M / week / year )

1шт.

17

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

2шт.

18

166065

PIN,25.4mm OD x 66.5mm L

Clevis, 1" x 2-5/8"

2шт.

495-11106

WASHER,1", SAE

4шт.

733-4032

COTTER PIN,M4 x 32

2шт.

19

86635252

LATCH

RH

1шт.

19

86635332

LATCH

LH

1шт.

64972

WASHER,32.54mm ID x 50.8mm OD x 3.43mm Thk

Special, 1-9/32" ID x 2" OD x .135"

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

2шт.

20

PL

PROCURE LOCALLY

Tube

1шт.

9616736

1шт.

21

PL

PROCURE LOCALLY

Tube

1шт.

9619095

1шт.

22

86628549

3 WAY CONNECTION

Tee

2шт.

23

Rigid, Male, 9/16"-18 SAE to 3/4"-16 SAE, Includes: O-Ring 128825

1шт.

24

86635143

COUPLING,3/4" - 16, 1-9/64" L

1шт.

86517438

ORIFICE

1шт.

25

195492

ADAPTER,3/4" - 16 ORB x 9/16" - 18

Includes: O-Ring

1шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

26

595744

ELBOW,45 Degree, 9/16" - 18 x 9/16" - 18

90°

1шт.

27

698314

HOSE,9.53mm ID x 1879.6mm L, SAE 100R1

2шт.

28

116070

CAP

Oil Drain

2шт.

29

322897

HYD CONNECTOR,9/16" - 18 x 9/16" - 18

(Union)

1шт.

814-6040

BOLT,Hex, M6 x 1 x 40mm, Cl 8.8

4шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.
