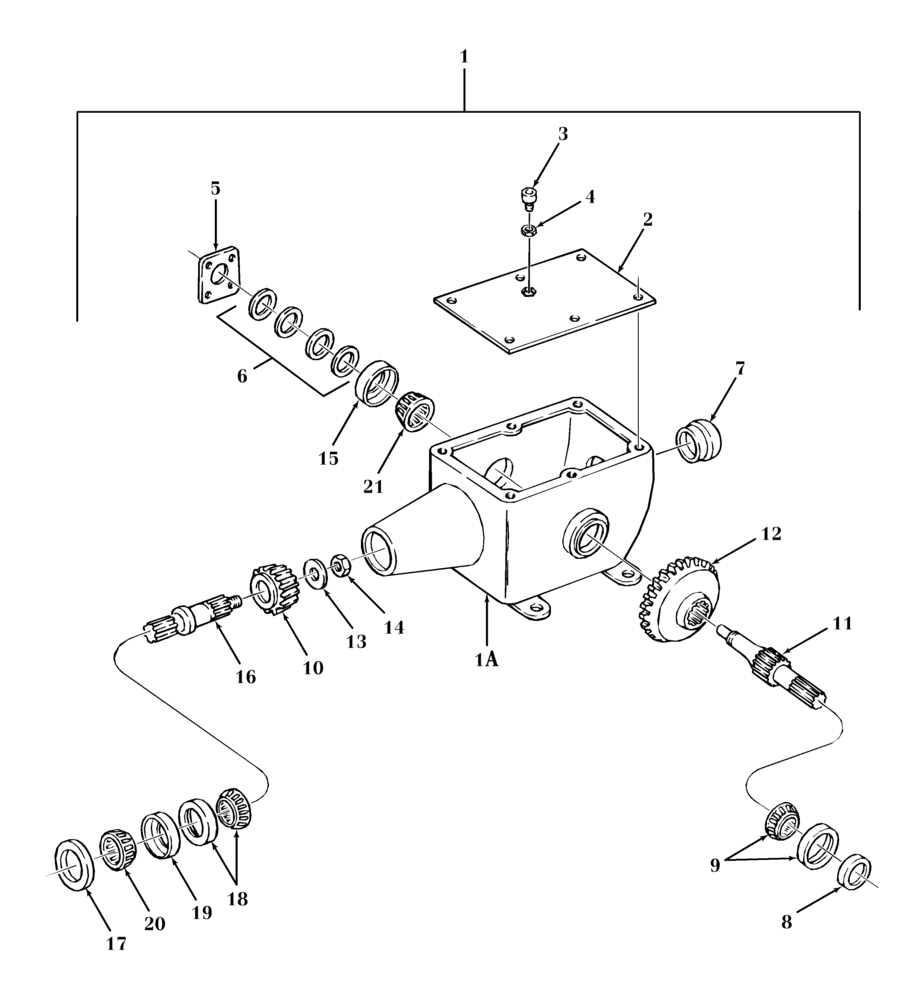

Запчасти Case IH RBX441 (002) - MAIN DRIVE GEARBOX, 540 RPM (14) - MAIN GEARBOX & DRIVE

1

86635212

GEARBOX

Main Drive, 540 RPM

1шт.

1a

86635337

HOUSING

Gearbox

1шт.

2

86636748

LID

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

495-21038

WASHER,5/16"

6шт.

3

572820

BREATHER

1шт.

4

221-85

REDUCER,Hex, 3/8" x 1/8" NPT

1шт.

5

86636798

COVER

End

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

493-41039

LOCK WASHER,Ext Tooth, 3/8"

4шт.

6

855606

KIT

Shim

1шт.

7

249129

DUST CAP

1шт.

8

634036

OIL SEAL

1шт.

9

788854

BEARING SET,33.45mm ID x 69.04mm OD x 19.9mm W

Tapered

1шт.

10

787112

BEVEL PINION

20T

1шт.

11

787117

SHAFT

1шт.

12

787113

GEAR

36T

1шт.

13

86635013

WASHER

1шт.

14

116311

SLOTTED NUT

Slotted, G2, 3/4"-16

1шт.

15

651814R1

BEARING CUP

1шт.

16

9842028

SHAFT

Input

1шт.

432-824

COTTER PIN,1/8" x 1 1/2"

1шт.

17

9828834

SEAL

Double Lip

1шт.

18

788855

BEARING ASSY,1.5" ID x 3" OD x 0.9375"

Tapered Roller

1шт.

19

478793R1

BEARING CUP

1шт.

20

160558C91

BEARING ASSY,1.5005" ID x 2.5635" OD x 0.72"

Tapered, Inner Rollers, 1-1/2" ID

1шт.

21

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

1шт.

21

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.
