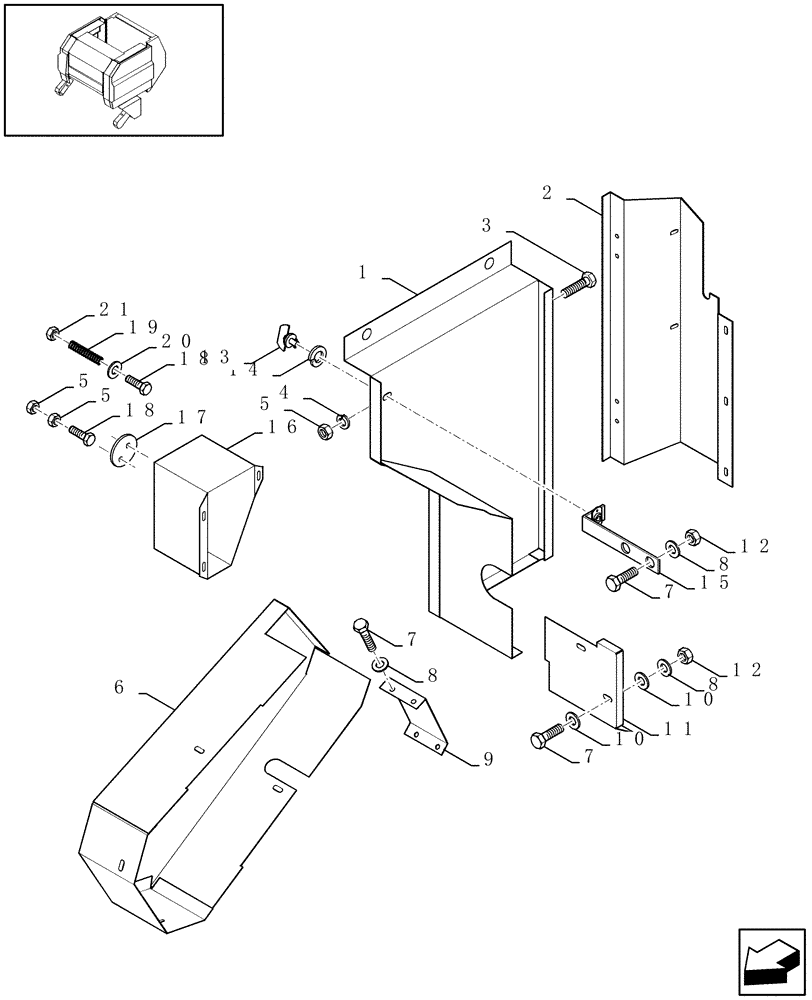

Запчасти Case IH RBX341 (08.02[01]) - SHIELDS PICK-UP, RH (08) - SHEET METAL/DECALS

1

84822202

SHIELD

, Serial Range: -C667

1шт.

FOR CROPCUTTER UNITS ONLY

1шт.

1

84820650

SHIELD

, Start Serial: D668

1шт.

FOR CROPCUTTER UNITS ONLY

1шт.

2

84822227

PLATE

, Serial Range: -C667

1шт.

FOR CROPCUTTER UNITS ONLY

1шт.

2

84820651

PLATE

, Start Serial: D668

1шт.

FOR CROPCUTTER UNITS ONLY

1шт.

3

80120100

BOLT,M6 x 1 x 20mm

8шт.

4

80322357

LOCK WASHER,Belleville, M6

6MM

8шт.

5

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

8шт.

6

84822219

GUARD

1шт.

7

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

8

80322358

LOCK WASHER

8MM

8шт.

9

84822223

COVER PLATE

, Serial Range: -C667

1шт.

9

84820664

COVER PLATE

, Start Serial: D668

1шт.

10

80378243

WASHER

8MM

4шт.

11

84822226

COVER PLATE

, Serial Range: -C667

1шт.

FOR CROPCUTTER UNITS ONLY

1шт.

11

84820643

PLATE

, Start Serial: D668

1шт.

FOR CROPCUTTER UNITS ONLY

1шт.

12

43362

NUT,M8 x 1.25, Cl 10

4шт.

13

89831581

LOCK

1шт.

14

89514605

WASHER, LOCK

1шт.

15

84024824

SUPPORT

1шт.

FOR CROPCUTTER UNITS ONLY

1шт.

16

84822231

COVER PLATE

, Serial Range: -C667

1шт.

FOR CAPACITY UNITS ONLY

1шт.

16

84820667

COVER PLATE

, Start Serial: D668

1шт.

FOR CAPACITY UNITS ONLY

1шт.

17

84822230

COVER PLATE

, Serial Range: -C667

1шт.

FOR CAPACITY UNITS ONLY

1шт.

17

84820666

COVER PLATE

, Start Serial: D668

1шт.

FOR CAPACITY UNITS ONLY

1шт.

18

80120101

BOLT

M6x30

2шт.

FOR CAPACITY UNITS ONLY

1шт.

19

86628550

SPRING

1шт.

FOR CAPACITY UNITS ONLY

1шт.

20

80140015

WASHER

1шт.

FOR CAPACITY UNITS ONLY

1шт.

21

80353308

NUT

M6

1шт.
