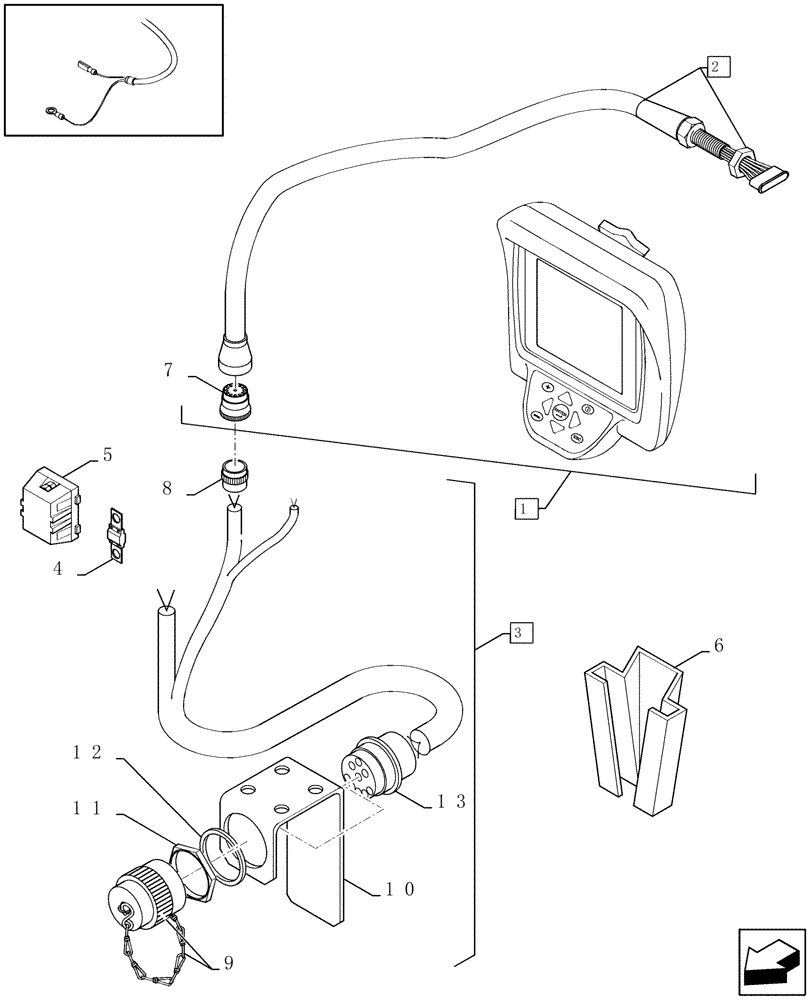

Запчасти Case IH RBX341 (06.03A[01]) - MONITOR (06) - ELECTRICAL SYSTEMS

1

84440344

CONTROL MONITOR

(2)

1шт.

2

NSS

NOT SOLD SEPARAT

cable, electric (7)

1шт.

3

84437435

WIRE HARNESS

(4, 5, Serial Range: 8-13)

1шт.

4

84078783

FUSE,80A, Midival

80A

1шт.

5

84078784

FUSE HOLDER

1шт.

6

89837606

CLIP

1шт.

7

NSS

NOT SOLD SEPARAT

connector, wire

1шт.

8

84074255

CONTACT HOUSING,Male, 9 Pole

1шт.

9

80767456

PLUG

1шт.

10

NSS

NOT SOLD SEPARAT

support

1шт.

11

NSS

NOT SOLD SEPARAT

cover

1шт.

12

84037188

O-RING,3mm Thk x 34.2mm ID, 70 Duro

1шт.

13

84074256

TERMINAL CONNECTOR,Male

1шт.
