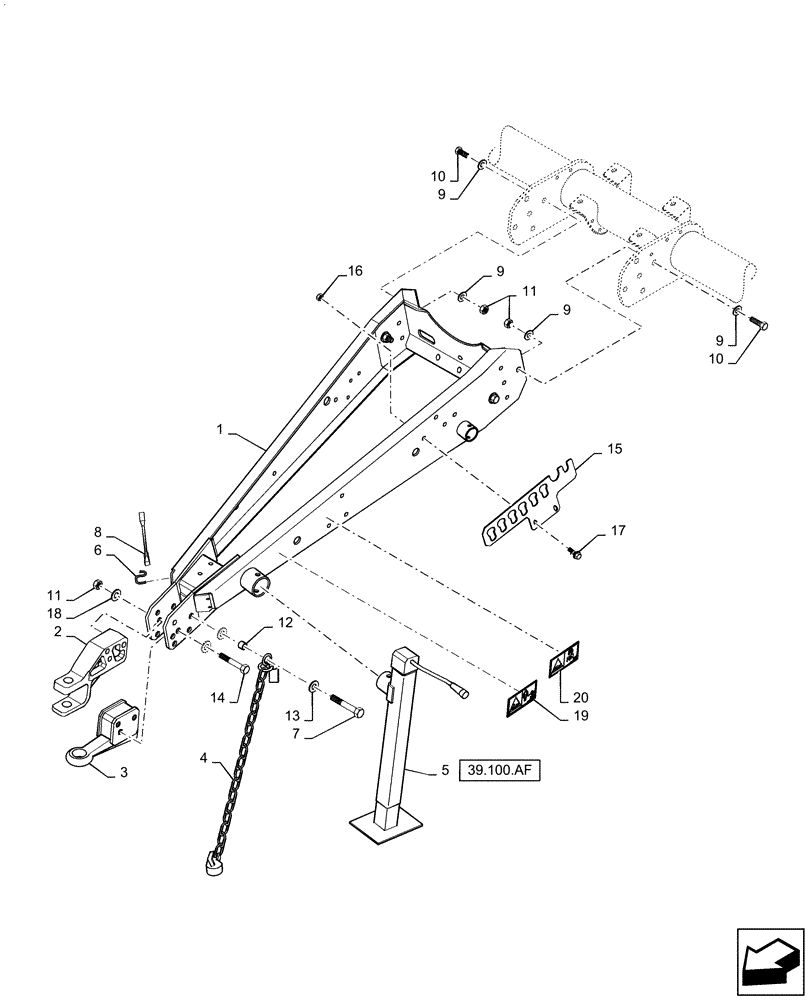

Запчасти Case IH RB565 (39.110.AM[01]) - HITCH (39) - FRAMES AND BALLASTING

1

84410618

HITCH

Incl 19 - 20

1шт.

2

47523516

CLEVIS

Cast

1шт.

2

47795882

CLEVIS

Steel

1шт.

Used on Overshot Feeder Pickups and Std. Pickups

1шт.

6

115680

HOOK

2шт.

7

362573

BOLT,Hex, M16 x 150mm, Cl 8.8

1шт.

8

273672

FASTENER

1шт.

9

64053

WASHER,16.9mm ID x 38.55mm OD x 4mm Thk

20шт.

10

120092

BOLT,M16 x 70mm, Cl 8.8

10шт.

11

86000441

NUT,M16 x 2.0, Cl 8

13шт.

12

86607695

SPACER,17.48mm ID x 28.6mm OD x 20.6mm L

1шт.

13

636422

WASHER,16.66mm ID x 69.85mm OD

1шт.

14

321246

BOLT,Hex, M16 x 2 x 120mm, Cl 8.8

2шт.

15

84368723

SUPPORT

1шт.

16

9804279

FLANGE NUT,Hex, M12, Cl 8

2шт.

17

9804266

BOLT,Hex, M12 x 25mm, Cl 8.8, Full Thd

2шт.

18

130358

WASHER,16.28mm ID x 38.35mm OD x 4.11mm Thk

6шт.

19

47361278

DANGER DECAL

1шт.

20

47361285

WARNING DECAL

540 RPM Models

1шт.

Choose Ref. 20 Based on PTO Type.

1шт.

20

47361283

DANGER DECAL

1000 RPM Models

1шт.

Choose Ref. 20 Based on PTO Type.

1шт.
