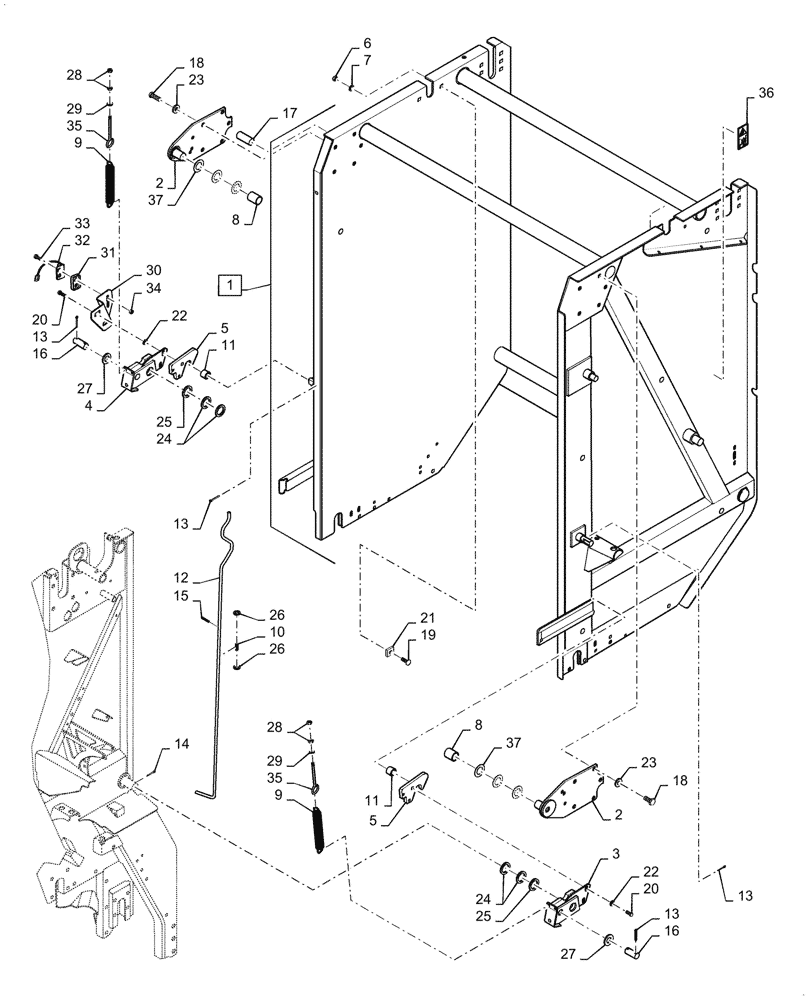

Запчасти Case IH RB565 (39.100.AV) - TAILGATE & LATCH (39) - FRAMES AND BALLASTING

1

84394712

TAILGATE

Incl 36

1шт.

2

87045740

PLATE

Tailgate Pivot

2шт.

3

84216964

LATCH

LH

1шт.

4

84216997

LATCH

RH

1шт.

5

84217007

HOOK

LH, RH

2шт.

6

9706685

NUT,M12 x 1.75, Cl 8

2шт.

7

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

8

84480737

BUSHING,35.17mm ID x 41.35mm OD x 50mm L

M41 OD x 35 ID x 50 Long

2шт.

9

86572215

SPRING,Extension, 25.58mm OD x 240.18mm L

M28 OD x 20 ID x 240 Long

2шт.

10

34019

SPRING,Compression, 9/16" OD x 2-5/16" L

2-5/16" Long

1шт.

11

87665527

SPACER,25.75mm ID x 31.75mm OD x 28mm L

M31 OD x 25 ID

2шт.

12

84277390

ROD

1шт.

13

87399

COTTER PIN,1/2 x 3 Bolt

6шт.

14

88182

COTTER PIN,1/4" OD x 2" L

2шт.

15

80756

COTTER PIN,1/8" x 3/4"

1шт.

16

166065

PIN,25.4mm OD x 66.5mm L

M25.4 Dia. x 66 Long

2шт.

17

9845448

PIN,31.7mm OD x 83.7mm L

M31.7 Dia. x 83 Long

1шт.

18

374835

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

10шт.

19

328754

CARRIAGE BOLT,M12 x 1.75 x 40mm, Cl 8.8

2шт.

20

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

6шт.

21

9622795

PLATE

2шт.

22

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

6шт.

23

273127

WASHER,16.67mm ID x 28.57mm OD x 7.37mm Thk

M28.5 OD x 16.6 ID

10шт.

24

86603125

WASHER,40.54mm ID x 60.33mm OD x 4.8mm Thk

M60.3 OD x 40.6 ID

4шт.

25

86636633

WASHER,42.86mm ID x 57.15mm OD x 1.52mm Thk

M57.1 OD x 42.8 ID

2шт.

26

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

27

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

2шт.

28

9635082

NUT,5/16" - 18, Gr 5

4шт.

29

83918746

WASHER,0.34" ID x 0.69" OD x 0.07" Thk

2шт.

30

87709056

CHANNEL

1шт.

31

86624468

SPACER,1.65" L x 5/16” Thk

Switch

1шт.

32

86594422

SENSOR

Tailgate

1шт.

33

87310126

SCREW,Phillips Drive, Pan HD, #10 - 24 x 3/4", SST

2шт.

34

86900323

NUT,#10 - 24

KWH #10 Stainless Steel

2шт.

35

27953

EYEBOLT

5/16"-18 x 6-1/4"

2шт.

36

86547781

REFLECTOR,RED

2шт.

36

86516139

CAUTION DECAL

2шт.

37

130357

WASHER,35.3mm ID x 60.3mm OD x 1.52 Thk

6шт.
