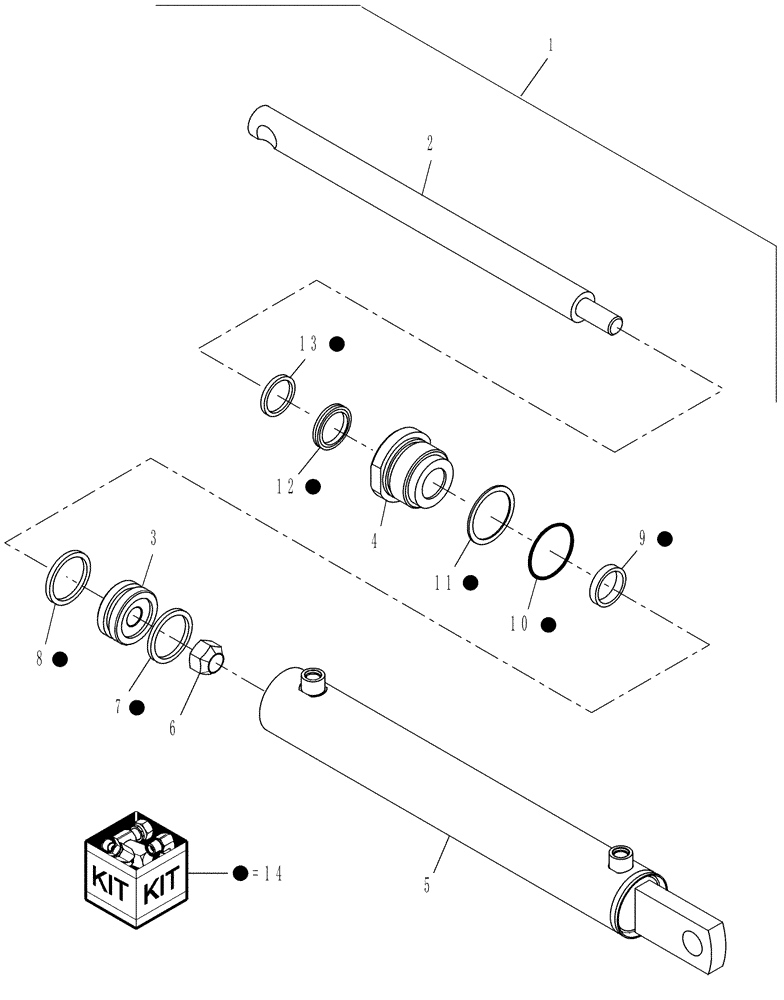

Запчасти Case IH RB565 (35.570.AB[02]) - HYDRAULIC CYLINDER, BALE RAMP (35) - HYDRAULIC SYSTEMS

1

87731915

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 107.95mm Stroke

Bale Ramp, Incl 2 - 13

1шт.

2

NSS

NOT SOLD SEPARAT

Rod {87722551}

1шт.

3

87026074

PISTON

1шт.

4

87025449

HEAD

Cylinder Barrel

1шт.

5

NSS

NOT SOLD SEPARAT

1шт.

6

280724

LOCK NUT,3/4" - 16

1шт.

7

NSS

NOT SOLD SEPARAT

Wear Ring, Incl in 1

1шт.

8

NSS

NOT SOLD SEPARAT

Seal, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Wear Ring, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

1шт.

11

NSS

NOT SOLD SEPARAT

Washer, Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

Rod Seal, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Wiper Seal, Incl in 1

1шт.

14

87722552

SEAL KIT

Incl Incl 7 - 13

1шт.
