Запчасти Case IH RB565 (35.570.AB[01]) - VAR - 726867 - HYDRAULIC BALE EJECTOR AND HYDRAULICS (35) - HYDRAULIC SYSTEMS

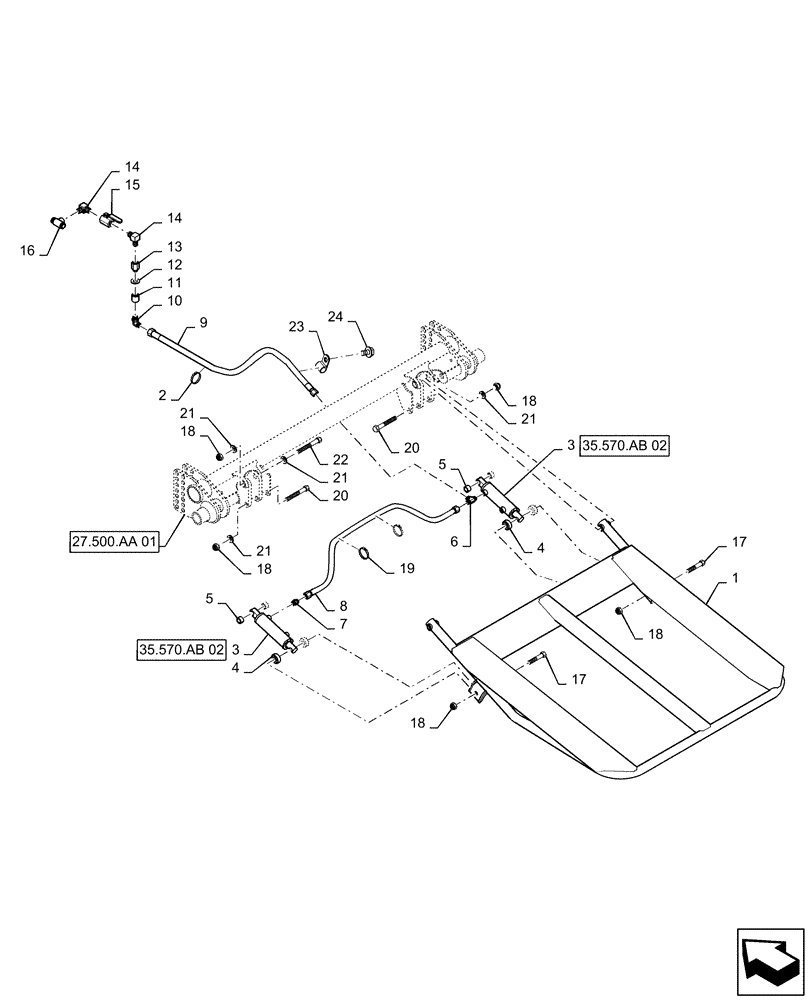

Схема запчастей Case IH RB565 - (35.570.AB[01]) - VAR - 726867 - HYDRAULIC BALE EJECTOR AND HYDRAULICS (35) - HYDRAULIC SYSTEMS
35.570.ab 02
24
18
21
22
6
8
9
14
7
21
1
21
3
14
5
2
17
18
11
18
16
13
5
19
15
20
21
20
10
12
17
4
3
4
23
18
18
27.500.aa 01
35.570.ab 02

Артикул

Название

Примечание

Количество

1

84594570

EJECTOR

, Serial Range: -YFN188618

1шт.

1

47740543

EJECTOR

, Start Serial: YFN188619

1шт.

2

87034173

CABLE TIE,774.7mm L

4шт.

3

87731915

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 107.95mm Stroke

Bale Ejector

2шт.

3

854071

BREATHER

2шт.

4

87601384

SPACER,20mm ID x 47.6mm OD x 22.2mm Thk

4шт.

5

87022762

BEARING,0.785" ID x 1.13" OD x 5"

4шт.

6

265808

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 ORB

1шт.

7

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

1шт.

8

86546420

FLEXIBLE HOSE,1473.2 mm x 12.70, SAE 100R2

1шт.

9

87611136

FLEXIBLE HOSE

1шт.

10

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

1шт.

11

86635143

COUPLING,3/4" - 16, 1-9/64" L

1шт.

12

86630002

ORIFICE,15.88mm OD x 5.08mm Thk

1шт.

13

86628562

ADAPTER,1/2" NPTF x 3/4" - 16

1шт.

14

217-1226

ELBOW,90 Degree, 1/2"-14 Male

2шт.

15

87642600

HYDRAULIC VALVE

1шт.

16

617267

TEE,1/2"-14 Female x 1/2"-14 Male Run

1шт.

17

280210

BOLT,Hex, 3/4"-10 x 4", G5

2шт.

18

9626598

NUT,3/4"-10, GB

6шт.

19

263117

CABLE TIE,292.1mm L, Nylon, Black

6шт.

20

281011

BOLT,Hex, 3/4" - 10 x 4 3/4", Gr 5

2шт.

21

394632

WASHER,21mm ID x 40mm OD x 4mm Thk

6шт.

22

86508735

BOLT,Hex, 3/4" - 10 x 6", Gr 8

2шт.

23

86598598

CLAMP,19mm, Insulated, 13.5mm Bolt Hole - P Type

3шт.

24

381014

SCREW,Flng, M8 x 16mm

1шт.

Выбрано товаров: 26
