Запчасти Case IH RB565 (35.560.AB) - HYDRAULIC LIFT CYLINDER (35) - HYDRAULIC SYSTEMS

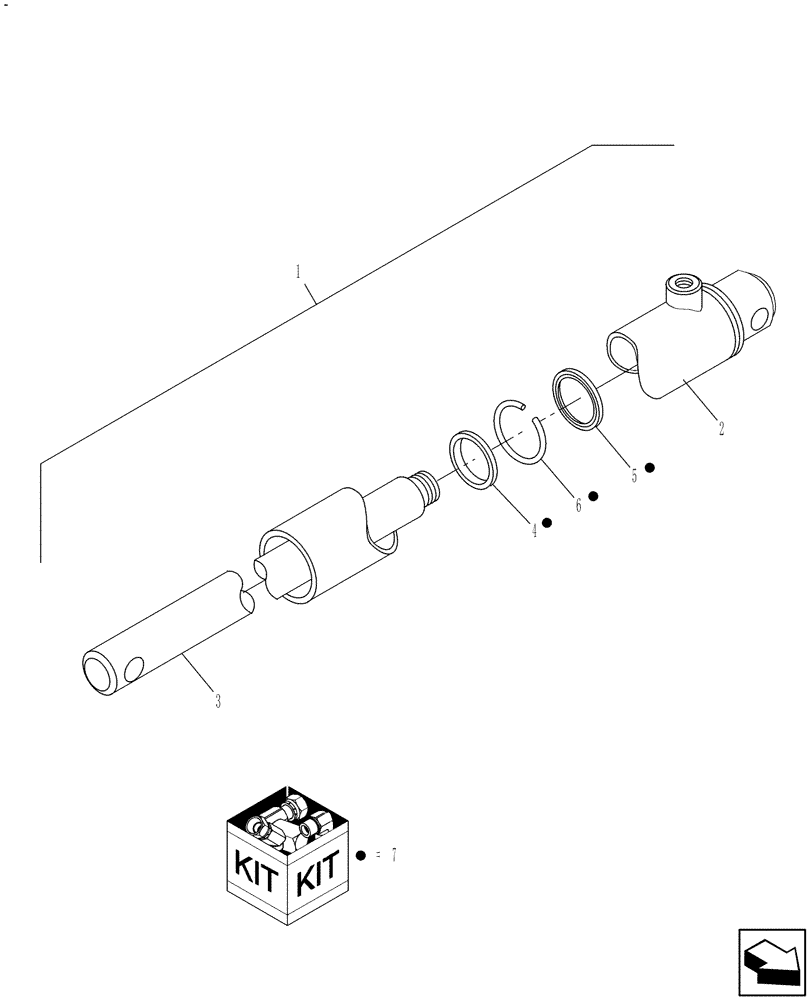

Схема запчастей Case IH RB565 - (35.560.AB) - HYDRAULIC LIFT CYLINDER (35) - HYDRAULIC SYSTEMS
7
3
7
2
5
7
6
7
4
7
1

Артикул

Название

Примечание

Количество

1

87056843

HYDRAULIC CYLINDER,38.1mm Rod, 76.2mm Stroke

Pickup Lift, Incl 2 - 6

1шт.

Manufacturer's Production Date Stamp - (ex. M 42 2012 = M / week / year )

1шт.

2

NSS

NOT SOLD SEPARAT

Barrel

1шт.

3

87030513

PISTON ROD

1шт.

4

NSS

NOT SOLD SEPARAT

Seal, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Seal, 1.50 ID x 1.90 OD, Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

Ring, Retaining, Incl in 1

1шт.

7

87030514

SEAL KIT

Incl 4 - 6

1шт.

Выбрано товаров: 8
