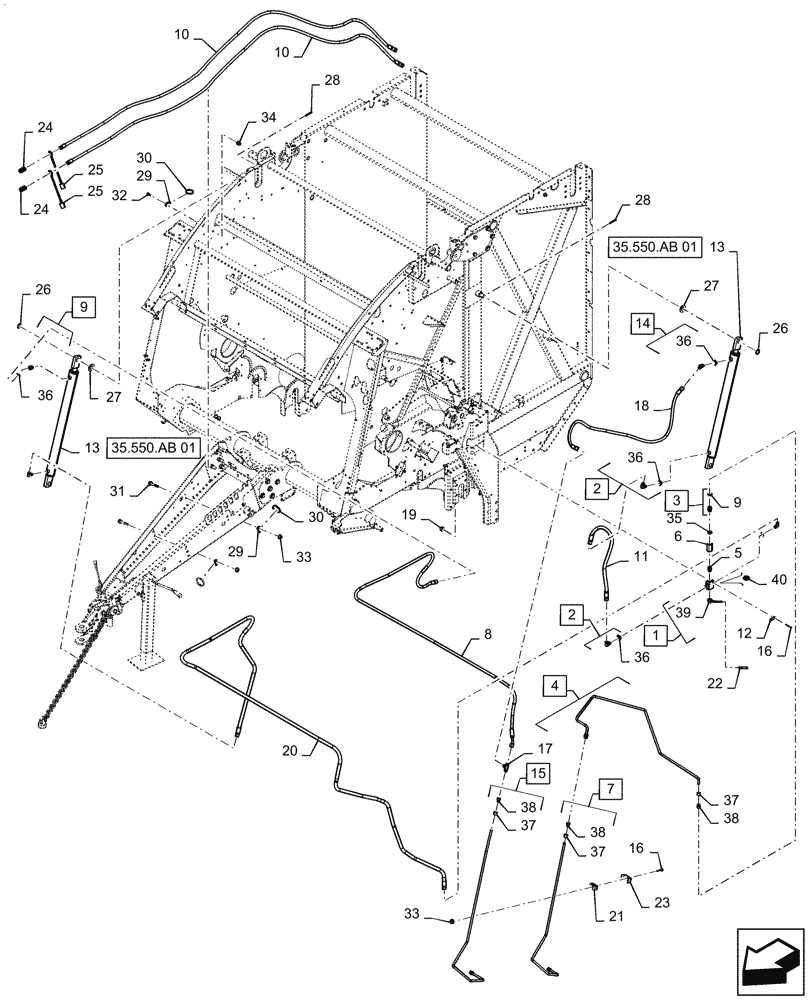

Запчасти Case IH RB565 (35.550.AC[01]) - VAR - 726160 - TAILGATE, HYDRAULIC LIFT, STANDARD EJECT, YFN188619 AND AFTER (35) - HYDRAULIC SYSTEMS

1

84606149

VALVE WITH LEVER

Incl 39, 40

1шт.

2

86512938

90 ELBOW,90 Degree, 37 Degree 3/4"-16 x 9/16"-18 ORB

Incl 36

4шт.

3

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 9

1шт.

4

47861634

HYD TUBE

.37"ID x .50" OD, SAE J525, Incl 37, 38

1шт.

5

259619

HYD CONNECTOR,3/4" - 16 ORB x 3/4" - 16 ORB

1шт.

6

47843875

HYD CONNECTOR,3/4" - 16 x 3/4" - 16

1шт.

7

47861639

HYD TUBE

.37"ID x .50" OD, SAE J525, Incl 37, 38

1шт.

8

47863940

HYDRAULIC HOSE,10mm ID x 3292mm L, SAE 100R17

1шт.

9

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

10

47734904

HYDRAULIC HOSE,10mm ID x 3842mm L, SAE 100R17

2шт.

11

47863823

HYDRAULIC HOSE,12.5mm ID x 746mm L, SAE 100R17

1шт.

12

84416929

PLATE

1шт.

13

87019623

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 685.8mm Stroke

Tailgate Lift, Standard Eject

2шт.

14

87301276

HYD CONNECTOR,45 Degree, 9/16" - 18 ORB x 3/4" - 16 JIC

Incl 36

2шт.

15

47861637

HYD TUBE

.37"ID x .50" OD, SAE J525, Incl 37, 38

1шт.

16

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

5шт.

17

128996

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

18

47733719

HYDRAULIC HOSE,10mm ID x 1620mm L, SAE 100R17

1шт.

19

353308

NUT,M6 x 1.0, Cl 8

5шт.

20

47863941

HYDRAULIC HOSE,12.5mm ID x 5255mm L, SAE 100R17

1шт.

21

430357

CLAMP

1шт.

22

47576842

HANDLE GRIP

1шт.

23

431941

SUPPORT

3шт.

24

9801618

QUICK MALE COUPLING,1/2" - 14

2шт.

25

86621124

DUST CAP

Black

2шт.

26

26402

WASHER,25.8mm ID x 38.1mm OD x 1.7mm Thk

2шт.

27

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

2шт.

28

87399

COTTER PIN,1/2 x 3 Bolt

2шт.

29

84407295

BASE

5шт.

30

87034173

CABLE TIE,774.7mm L

23шт.

31

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

2шт.

32

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

3шт.

33

353308

NUT,M6 x 1.0, Cl 8

5шт.

34

86610200

THREADED INSERT,M8 x 1.25

3шт.

35

86630002

ORIFICE,15.88mm OD x 5.08mm Thk

1шт.

36

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

37

129428

TUBE NUT,37 Degree, 3/4"-16, Type B

1шт.

38

235671

SLEEVE,37 Degree, 1/2" Tube

1шт.

39

47382486

VALVE LEVER

1шт.

40

47382510

SEAL KIT

1шт.
