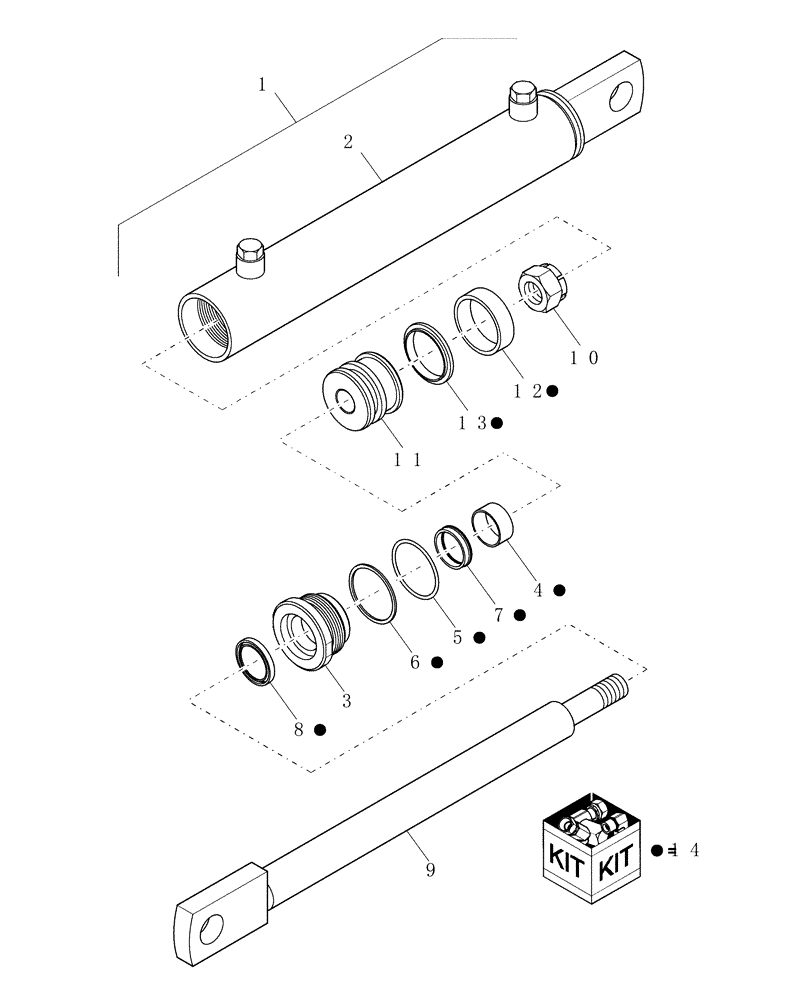

Запчасти Case IH RB565 (35.550.AB[01]) - TAILGATE, HYDRAULIC CYLINDER, YFN188619 AND AFTER (35) - HYDRAULIC SYSTEMS

1

87019623

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 685.8mm Stroke

Tailgate Lift, Incl 2 - 13

1шт.

2

NSS

NOT SOLD SEPARAT

Cylinder Barrel, Incl in 1

1шт.

3

87025449

HEAD

Cylinder

1шт.

4

9843627

WEAR RING,Split, 31.75mm ID x 34.8mm OD x 12.7mm Thk

Wear, 1.250 ID x .50 Thk

1шт.

5

235782

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

1шт.

6

270103

BACK-UP RING,45.01mm ID x 51mm OD x 1.27mm Thk

Backup, 1.772 ID x .043 Thk

1шт.

7

86513307

SEAL,31.75mm ID x 37.85mm OD x 6.35mm Thk

Double-Lip, 1.50 OD x 1.25 ID x .250 Tk.

1шт.

8

529340

SEAL,31.75mm ID x 43.05mm OD x 4.76mm Thk

Rod Wiper

1шт.

9

87025447

PISTON ROD

1шт.

10

280724

LOCK NUT,3/4" - 16

1шт.

11

87025448

PISTON

1шт.

12

771705

RING

Wear, 2.004 ID x .50 Thk

1шт.

13

86553483

SEAL

Piston, 3 Piece

1шт.

14

87025443

SEAL KIT

Kit, Incl 4 - 8, 12 - 13

1шт.
