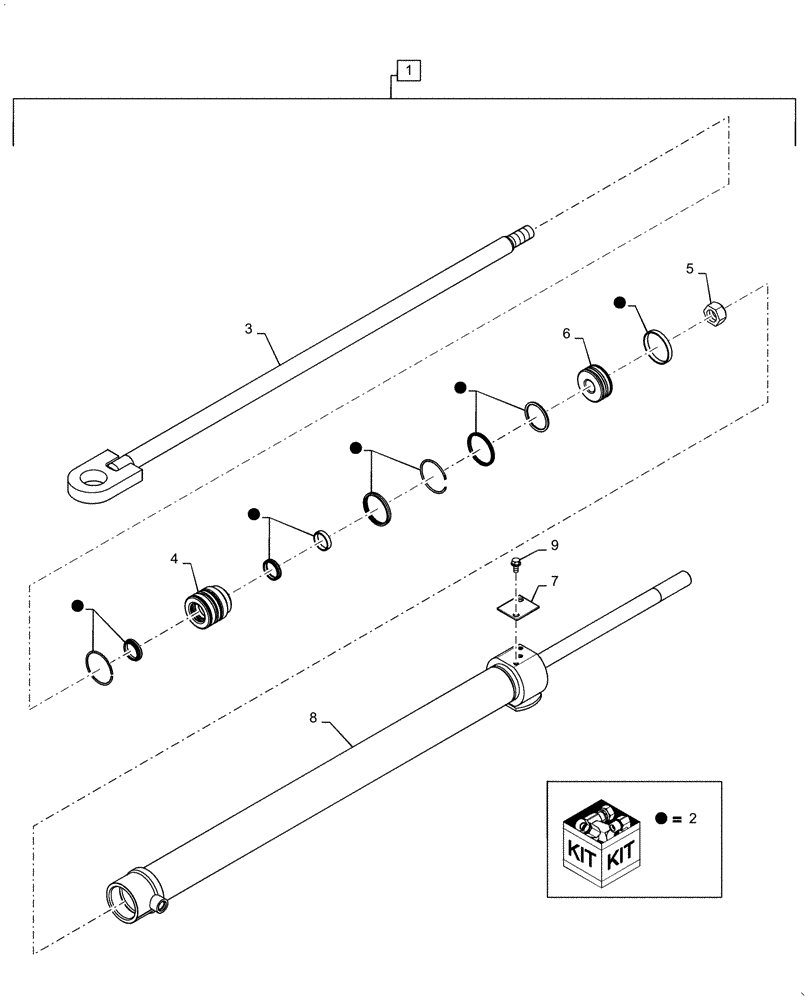

Запчасти Case IH RB565 (35.540.AI[02]) - VAR - 726813, 727159 - HYDRAULIC BALE DENSITY CYLINDERS, YGN193203 AND AFTER (35) - HYDRAULIC SYSTEMS

1

84549526

HYDRAULIC CYLINDER

Hydraulic, Bale Tension, RH, Incl 2 - 9

1шт.

1

47860096

HYDRAULIC CYLINDER

Hydraulic, Bale Tension, LH, Incl 2 - 9

1шт.

2

47624424

SEAL KIT

Components are NSS, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Rod, Incl in 1

1шт.

4

47628809

CYLINDER HEAD

1шт.

5

87629

NUT,5/8"-11, GB

Nut, Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

Piston, Incl in 1

1шт.

7

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

1шт.

8

NSS

NOT SOLD SEPARAT

Cylinder Barrel, Incl in 1

1шт.

9

PL

PROCURE LOCALLY

5/16" x .0.50" Flange Bolt, Incl in 1

2шт.
