(35.540.AI[02]) - VAR - 726813, 727159 - HYDRAULIC BALE DENSITY CYLINDERS, BETWEEN, BETWEEN, YFN188619 AND YGN193202 AND AFTER

Запчасти Case IH RB565 (35.540.AI[02]) - VAR - 726813, 727159 - HYDRAULIC BALE DENSITY CYLINDERS, BETWEEN, BETWEEN, YFN188619 AND YGN193202 AND AFTER (35) - HYDRAULIC SYSTEMS

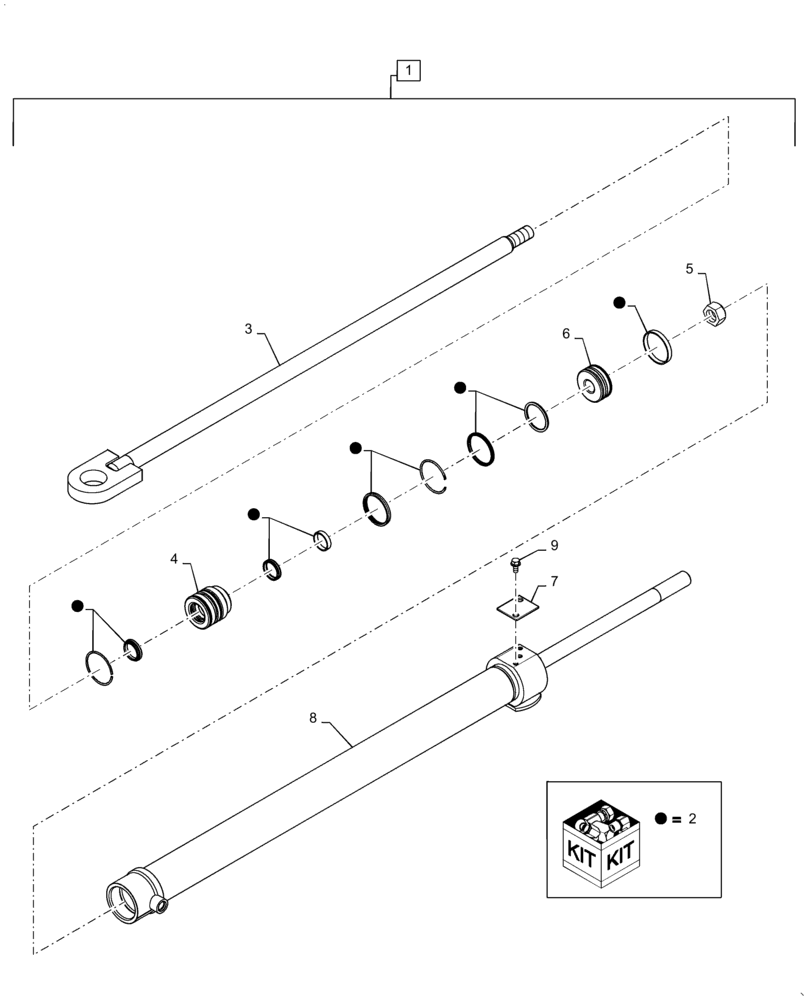

Схема запчастей Case IH RB565 - (35.540.AI[02]) - VAR - 726813, 727159 - HYDRAULIC BALE DENSITY CYLINDERS, BETWEEN, BETWEEN, YFN188619 AND YGN193202 AND AFTER (35) - HYDRAULIC SYSTEMS
2
4
9
1
7
2
2
2
2
6
8
3
2
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84549525

HYDRAULIC CYLINDER

Hydraulic, Bale Tension, RH, Roll-Belt 550

1шт.

Manufacturer's Production Date Stamp - (ex. M 42 2012 = M / week / year ),All internal components identical. Only barrels, Ref. 16 & 17 are different

1шт.

Cylinder Componts are NSS

1шт.

1

47794184

HYDRAULIC CYLINDER

Hydraulic, Bale Tension, LH

1шт.

Manufacturer's Production Date Stamp - (ex. M 42 2012 = M / week / year ),All internal components identical. Only barrels, Ref. 16 & 17 are different

1шт.

Cylinder Componts are NSS

1шт.

2

47624424

SEAL KIT

Components are NSS

1шт.

3

NSS

NOT SOLD SEPARAT

Rod

1шт.

4

NSS

NOT SOLD SEPARAT

Head

1шт.

5

87629

NUT,5/8"-11, GB

Nut

1шт.

6

NSS

NOT SOLD SEPARAT

Piston

1шт.

7

NSS

NOT SOLD SEPARAT

Plate

1шт.

8

NSS

NOT SOLD SEPARAT

Cylinder Barrel

1шт.

9

PL

PROCURE LOCALLY

5/16" x .0.50" Flange Bolt

2шт.
