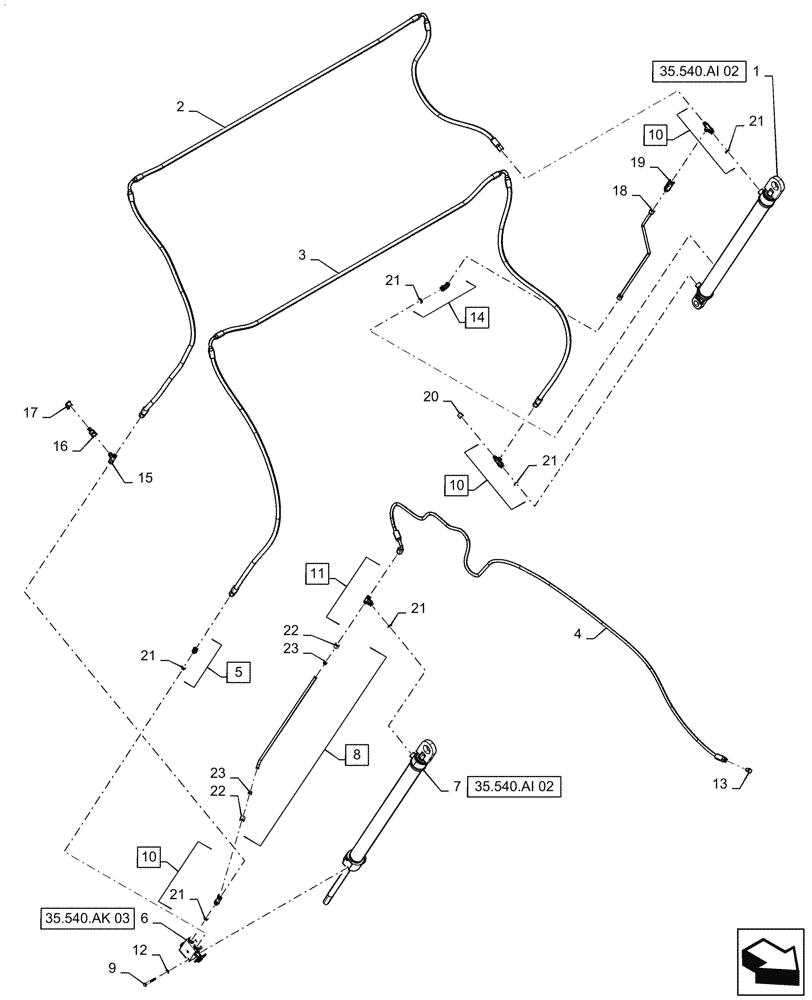

Запчасти Case IH RB565 (35.540.AI[01]) - VAR - 726813 - HYDRAULIC BALE TENSION, DUAL CYLINDERS, MANUAL CONTROL, YGN193203 AND AFTER (35) - HYDRAULIC SYSTEMS

1

47860098

HYDRAULIC CYLINDER

Bale Tension, LH

1шт.

2

84563524

HYDRAULIC HOSE

Rod End

1шт.

3

84563525

HYDRAULIC HOSE

Base End

1шт.

4

84563528

HYDRAULIC HOSE,6.3mm ID x 2794mm L, SAE 100R17

Hyd. Guage

1шт.

5

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 21

1шт.

6

47482891

HYDRAULIC MANIFOLD

Bale Tension, 2000 PSI, Incl 24 - 27

1шт.

7

47860093

HYDRAULIC CYLINDER

Bale Tension, RH

1шт.

8

47875110

HYD TUBE

Bale Density, RH, 9.5mm OD x 689mm Long, Incl 22, 23

1шт.

9

86505972

BOLT,5/16" - 18 x 2 - 1/4", Gr 5

2шт.

10

86513020

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

Incl 21

3шт.

11

163335

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

Incl 21

1шт.

12

80681

LOCK WASHER,5/16"

2шт.

13

86513049

PLUG,9/16" - 18 JIC

1шт.

14

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 21

1шт.

15

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

16

101792A1

COUPLING

Diagnostic

1шт.

17

86502604

DUST CAP

Black

1шт.

18

47860103

HYD TUBE

Tube, Bale Density, LH, 9.5mm OD x 652mm Long, Incl 22, 23

1шт.

19

266631

HYDRAULIC VALVE

Check

1шт.

20

574342

CAP,9/16" - 18 JIC

1шт.

21

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6шт.

22

136658

TUBE NUT,0.72" Length

1шт.

23

235670

SLEEVE,37 Degree, 3/8" Tube

1шт.

24

NSS

NOT SOLD SEPARAT

Manifold, Incl with 6

1шт.

25

47604141

VALVE PRESSURE RELIE

Incl 28

1шт.

26

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

27

84559455

CHECK VALVE

1шт.

28

377451A1

SEAL KIT

Incl 28

1шт.
