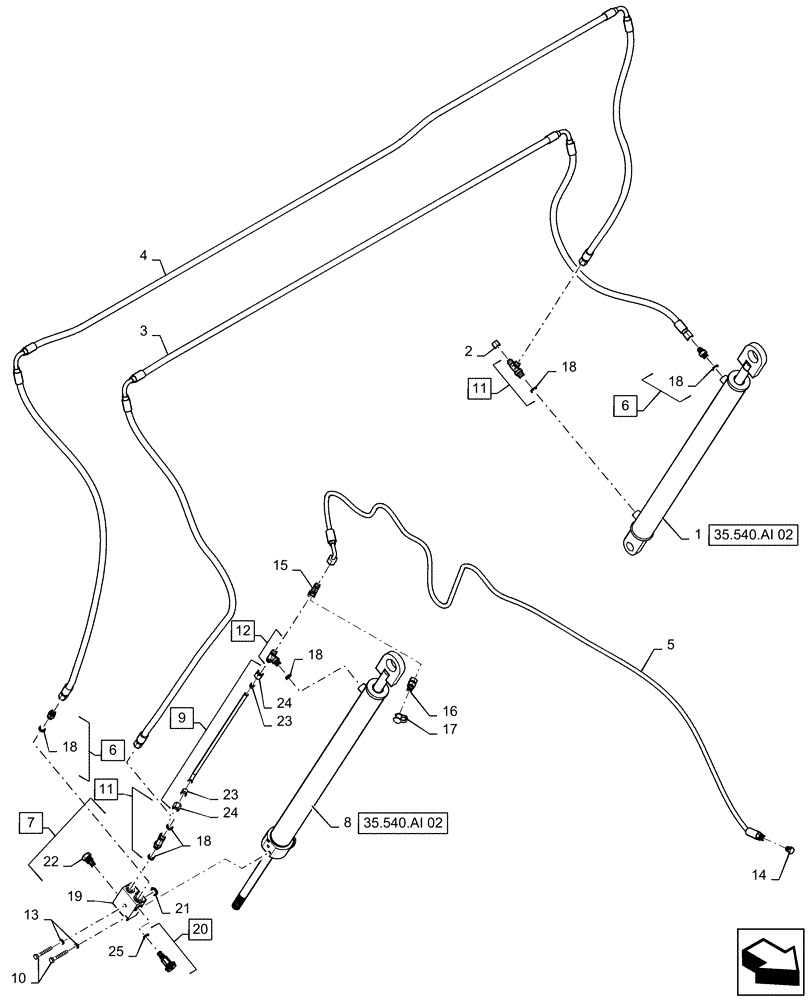

Запчасти Case IH RB565 (35.540.AI[01]) - VAR - 726813 - HYDRAULIC BALE TENSION, DUAL CYLINDERS, MANUAL CONTROL, BETWEEN, YFN188619 AND YGN193202 AND AFTER (35) - HYDRAULIC SYSTEMS

1

47794184

HYDRAULIC CYLINDER

LH, Serial Range: -YGN193202

1шт.

1

47860096

HYDRAULIC CYLINDER

LH, Start Serial: YGN193203

1шт.

2

574342

CAP,9/16" - 18 JIC

1шт.

3

84563524

HYDRAULIC HOSE

154"

1шт.

4

84563525

HYDRAULIC HOSE

173"

1шт.

5

84563528

HYDRAULIC HOSE,6.3mm ID x 2794mm L, SAE 100R17

110"

1шт.

6

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 18

2шт.

7

47482891

HYDRAULIC MANIFOLD

Incl 19 - 22, Serial Range: -YGN193202

1шт.

8

84549526

HYDRAULIC CYLINDER

RH, Start Serial: YGN193203

1шт.

8

47860094

HYDRAULIC CYLINDER

1шт.

9

84552131

HYD TUBE

Incl 23, 24

1шт.

10

86505972

BOLT,5/16" - 18 x 2 - 1/4", Gr 5

2шт.

11

86513020

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

Incl 18

2шт.

12

163335

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

Incl 18

1шт.

13

80681

LOCK WASHER,5/16"

2шт.

14

86513049

PLUG,9/16" - 18 JIC

1шт.

15

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

16

101792A1

COUPLING

Diagnostic

1шт.

17

86502604

DUST CAP

1шт.

18

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

5шт.

19

NSS

NOT SOLD SEPARAT

Manifold, Incl in 7

1шт.

20

47604141

VALVE PRESSURE RELIE

2000 PSI, Incl 25

1шт.

21

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

22

84559455

CHECK VALVE

-8

1шт.

23

235670

SLEEVE,37 Degree, 3/8" Tube

1шт.

24

136658

TUBE NUT,0.72" Length

1шт.

25

377451A1

SEAL KIT

Needle

1шт.

26

47765920

TUBE

1шт.

27

266631

HYDRAULIC VALVE

Check

1шт.

28

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

29

PL

PROCURE LOCALLY

Tube, Hyd., Incl 23, 24, Start Serial: YGN193203

1шт.
