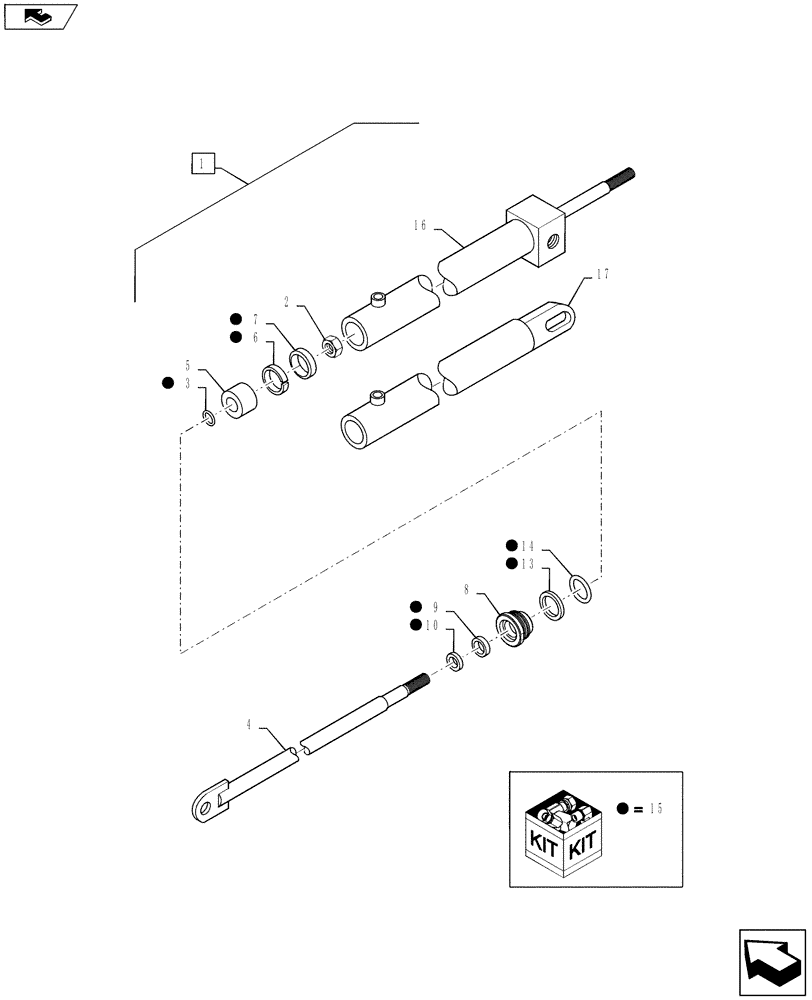

Запчасти Case IH RB565 (35.540.AA[03]) - BALE TENSION HYDRAULIC CYLINDER (35) - HYDRAULIC SYSTEMS

1

87347262

HYDRAULIC CYLINDER,Double Acting, 25.4mm Rod, 685.8mm Stroke

Hydraulic, Bale Tension, RH

1шт.

All internal components identical. Only barrels, Ref. 16 & 17 are different

1шт.

Manufacturer's Production Date Stamp - (ex. M 42 2012 = M / week / year )

1шт.

1

87517401

HYDRAULIC CYLINDER,Double Acting, 25.4mm Rod, 685.8mm Stroke

Hydraulic, Bale Tension, LH

1шт.

All internal components identical. Only barrels, Ref. 16 & 17 are different

1шт.

Manufacturer's Production Date Stamp - (ex. M 42 2012 = M / week / year )

1шт.

2

9602227

LOCK NUT,5/8"-18, GC

1шт.

3

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

4

87026541

ROD

2шт.

5

87026540

PISTON,50.37mm Bore, 18.37mm Rod, 31.75mm W

2шт.

6

771705

RING

Wear, 2.004" ID x .50" Thick

2шт.

7

86553483

SEAL

Piston, 3 Piece

2шт.

8

87026539

HEAD

2шт.

9

9616363

SEAL,25.4mm ID x 31.5mm OD x 6.35mm Thk

Seal

2шт.

10

121189

OIL SEAL

Wiper, 1-1/4" OD x 1/8" Thick

2шт.

13

511297

SEAL,41.22mm ID x 50.8mm OD x 1.93mm Thk

Backup, 1.638" ID x .064" Thick

2шт.

14

NSS

NOT SOLD SEPARAT

1.6" ID x .210" Thk

2шт.

15

87028081

SEAL KIT

2шт.

16

NSS

NOT SOLD SEPARAT

Barrel, RH

1шт.

17

NSS

NOT SOLD SEPARAT

Barrel, LH

1шт.
