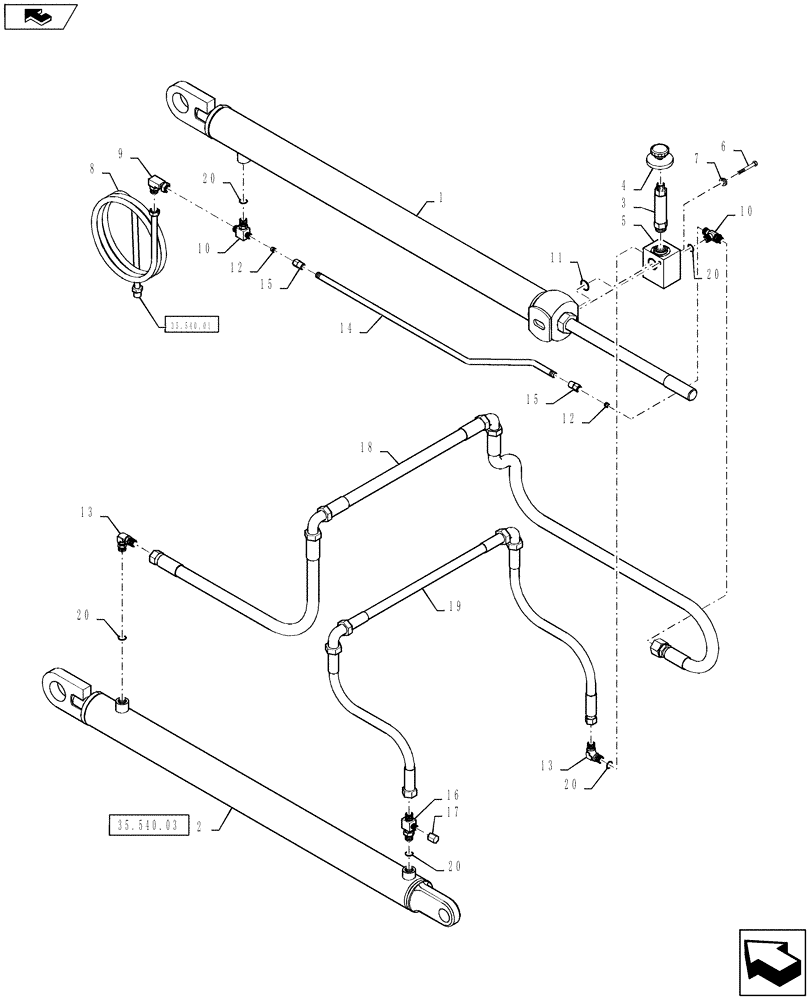

Запчасти Case IH RB565 (35.540.AA[02]) - HYDRAULIC BALE DENSITY, DOUBLE CYLINDER (35) - HYDRAULIC SYSTEMS

1

87347262

HYDRAULIC CYLINDER,Double Acting, 25.4mm Rod, 685.8mm Stroke

Hydraulic, Bale Tension, RH

1шт.

Manufacturer's Production Date Stamp - (ex. M 42 2012 = M / week / year )

1шт.

2

87517401

HYDRAULIC CYLINDER,Double Acting, 25.4mm Rod, 685.8mm Stroke

Hydraulic, Bale Tension, LH

1шт.

Manufacturer's Production Date Stamp - (ex. M 42 2012 = M / week / year )

1шт.

3

86520937

VALVE PRESSURE RELIE

1шт.

4

87035505

KNOB

1шт.

5

87028083

EXCHANGE VALVE PLATE

1шт.

6

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

7

80681

LOCK WASHER,5/16"

2шт.

8

86621388

FLEXIBLE HOSE,6.35mm ID x 3251.2mm L, SAE 100R17

1шт.

9

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

1шт.

10

163335

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

2шт.

11

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

2шт.

12

235670

SLEEVE,37 Degree, 3/8" Tube

4шт.

13

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

14

86605282

TUBE,0.375" OD x 28.83", 4.18" L

1шт.

15

136658

TUBE NUT,0.72" Length

Not Shown

4шт.

16

86513020

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

17

574342

CAP,9/16" - 18 JIC

1шт.

18

86521507

FLEXIBLE HOSE

1шт.

Components are N.S.S.

1шт.

19

86640723

FLEXIBLE HOSE

1шт.

Components are N.S.S.

1шт.

20

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

5шт.
