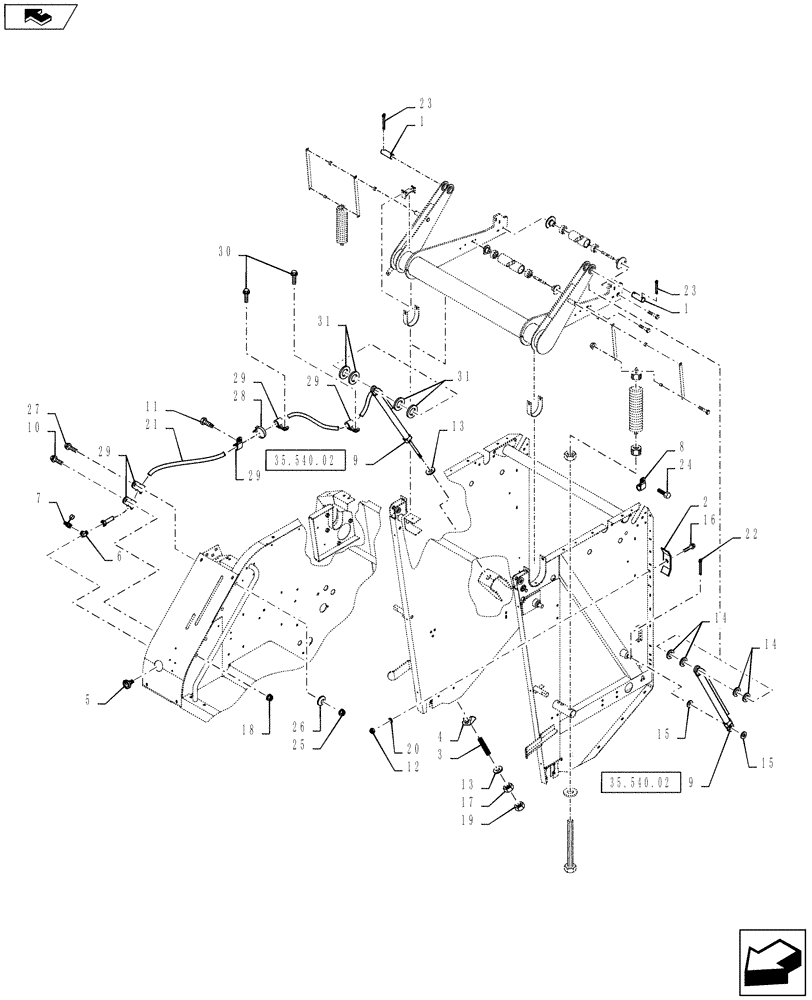

Запчасти Case IH RB565 (35.540.AA[01]) - HYDRAULIC BALE DENSITY (35) - HYDRAULIC SYSTEMS

1

86515940

PIN,38.1mm OD x 91.5mm L

2шт.

2

86528105

CLAMP

2шт.

3

9846489

SPRING,Compression, 1.81" OD x 9.44" L

Compression

1шт.

4

226131

PIVOT

Spring

1шт.

5

857072

GAUGE

3,000 PSI

1шт.

6

86627339

HYD CONNECTOR

Tee, -04, Female, NPTF

1шт.

7

9845229

COUPLING

Male

1шт.

Female Pipe Coupler is 9845231. Refer to Repair Manual.

1шт.

8

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

9

0C

ORDER COMPONENTS

Hydraulic Belt Tension, Dual Cylinders

1шт.

10

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

11

677808

SELF-TAP SCREW,Hex Flng, 1/4" - 20 x 5/8"

HWH, 1/4"-20 x 5/8"

1шт.

12

86629542

NUT,M8 x 1.25, Cl 8.8

3шт.

13

257163

WASHER,25.4mm ID x 50.8mm OD x 4.17mm Thk

Hardened, .164" Thk

2шт.

14

28581

WASHER,38.9mm ID x 60.3mm OD x 3.5mm Thk

1-17/32" ID x 2-3/8" OD

8шт.

15

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

4шт.

16

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

2шт.

17

9849647

NUT,7/8"-9, G5

1шт.

18

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

3шт.

19

87314

JAM NUT,Jam, 7/8"-9, G2

8шт.

20

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2шт.

21

86621388

FLEXIBLE HOSE,6.35mm ID x 3251.2mm L, SAE 100R17

1шт.

23

87400

COTTER PIN,3/16" x 2"

4шт.

24

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

1шт.

25

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

1шт.

26

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

27

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

1шт.

28

249730

SECURING STRAP,8" L

1шт.

Not Illustrated

1шт.

29

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

5шт.

30

381014

SCREW,Flng, M8 x 16mm

2шт.
