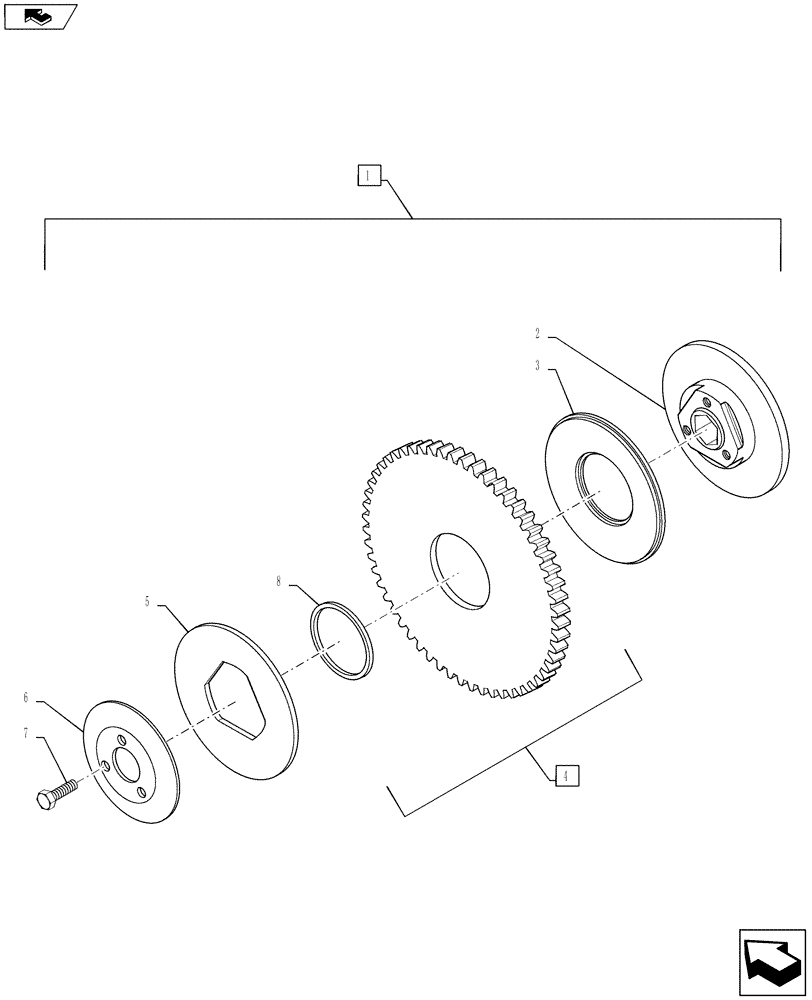

Запчасти Case IH RB565 (31.225.AA) - SLIP CLUTCH (31) - IMPLEMENT POWER TAKE OFF

1

84472419

SLIP CLUTCH

Incl 2 - 7

1шт.

2

84543059

CLUTCH DISC

1шт.

3

127434

DISC,77.7mm ID x 146mm OD x 3.56mm Thk

Friction

1шт.

4

86536128

DRIVEN SPROCKET

48T, Incl 8

1шт.

5

86627129

CLUTCH PLATE

1шт.

6

121092

BELLEVILLE WASHER,35mm ID x 117.5mm OD x 3.5mm Thk

1шт.

7

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3шт.

8

49686

BUSHING,76mm ID x 82.68mm OD x 7.62mm L

1шт.
