(31.220.AL[03]) - VAR - 726871, 726872 - HEAVY DUTY IMPLEMENT PTO - OVERSHOT FEEDER PICK-UP - COMER OR BONDILOLI GEARBOX

Запчасти Case IH RB565 (31.220.AL[03]) - VAR - 726871, 726872 - HEAVY DUTY IMPLEMENT PTO - OVERSHOT FEEDER PICK-UP - COMER OR BONDILOLI GEARBOX (31) - IMPLEMENT POWER TAKE OFF

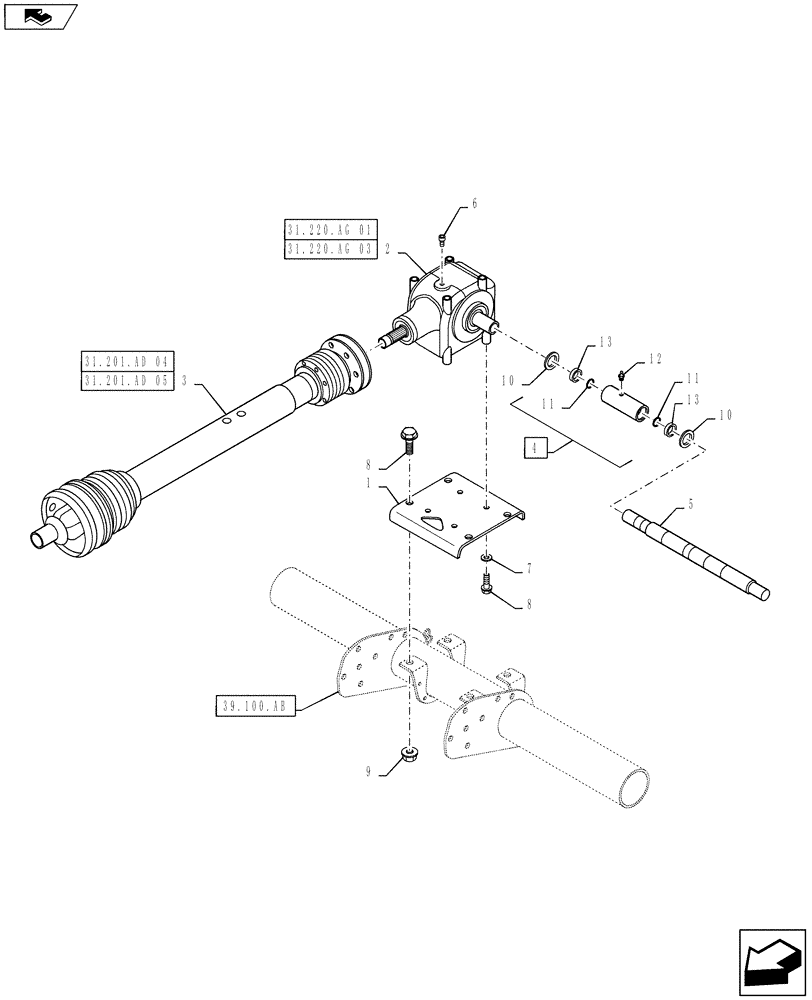

Схема запчастей Case IH RB565 - (31.220.AL[03]) - VAR - 726871, 726872 - HEAVY DUTY IMPLEMENT PTO - OVERSHOT FEEDER PICK-UP - COMER OR BONDILOLI GEARBOX (31) - IMPLEMENT POWER TAKE OFF
31.220.ag 03
8
13
10
2
5
6
12
9
10
11
4
11
8
13
home
7
1
3
31.201.ad 05
31.201.ad 05
39.100.ab
31.220.ag 01
31.201.ad 04
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84285522

MOUNT

1шт.

2

87391830

GEARBOX

540 RPM, 1700 N-m

1шт.

2

84375100

GEARBOX

1000 RPM, Heavy Duty

1шт.

3

84358413

PTO

1700 n-m, Cut Out Clutch

1шт.

Use with 540 RPM Gearbox,Overshot Rotor Pickup, Bale Slice and Specialty Crop Models

1шт.

3

47372355

PTO

1200 N-m, Cut Out Clutch

1шт.

Use with 1000 RPM Gearbox,Overshot Rotor Pickup, Bale Slice and Specialty Crop Models

1шт.

4

87661924

SPLINED COUPLING

Inc 11 - 13

1шт.

5

84541307

SHAFT

1шт.

6

86539157

BREATHER,3/8" Gas

1шт.

7

86979179

WASHER,16.67mm ID x 34.93mm OD x 6.35mm Thk

4шт.

8

9804271

BOLT,Hex, M16 x 40mm, Cl 8.8, Full Thd

8шт.

9

9804280

FLANGE NUT,Hex, M16, Cl 8

4шт.

10

86637396

WASHER,25.6mm ID x 35.3mm OD x 1mm Thk

1шт.

11

300643

SNAP RING,M38, Int

2шт.

12

62161

LUBE NIPPLE,M8 x 1.25, Str

2шт.

13

86637370

SEAL,40mm ID x 52mm OD x 7mm Thk

2шт.
