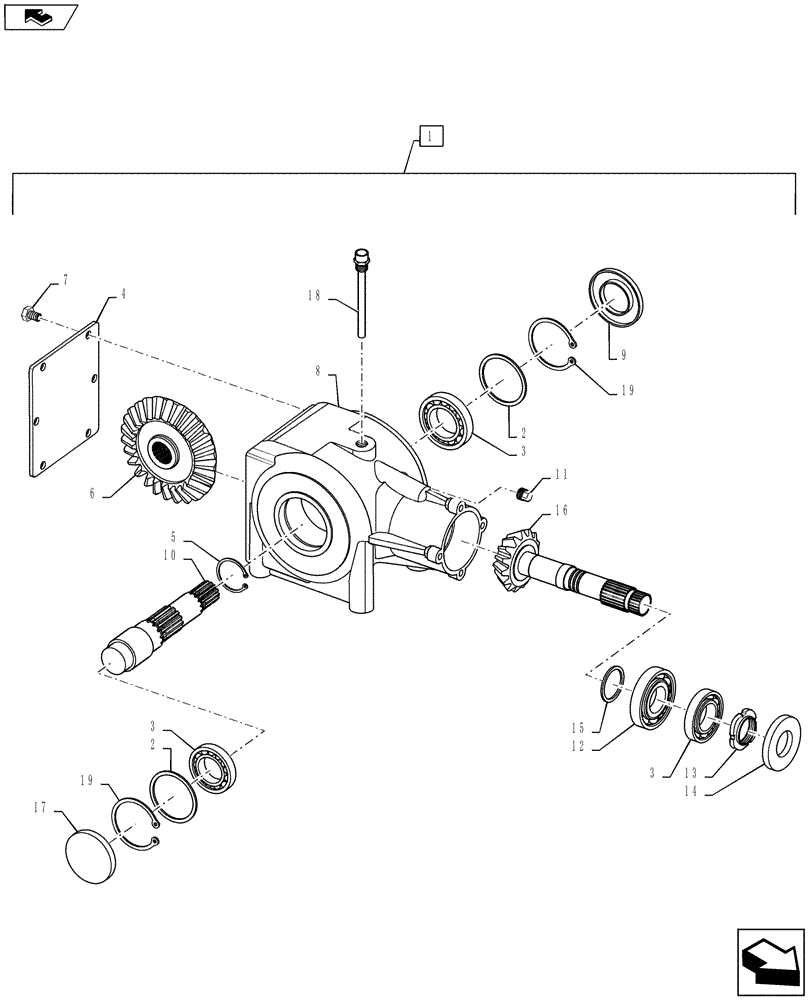

Запчасти Case IH RB565 (31.220.AG[05]) - GEARBOX, 540 RPM (31) - IMPLEMENT POWER TAKE OFF

1

87391830

GEARBOX

Main Drive, 540 RPM

1шт.

Manufacturer's I.D. #9.321.803.10 Stamped in Top of Gearbox Housing

1шт.

87391830R

REMAN-GEARBOX

1шт.

87391830C

CORE-GEARBOX

1шт.

2

86539214

SHIM

2шт.

3

210053

TAPERED BEARING,40mm ID x 80mm OD x 18mm W

2шт.

4

87016408

COVER

1шт.

5

86559213

SNAP RING

Ext., M42.5

1шт.

6

87518142

BEVEL GEAR

27T

1шт.

7

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

6шт.

8

87518144

HOUSING

1шт.

9

86539153

SEAL,40mm ID x 80mm OD x 10mm Thk

1шт.

10

87016406

GEAR SHAFT

1шт.

11

86557412

PLUG,3/8" - 19 NPT

2шт.

12

86557433

TAPERED BEARING,40mm ID x 80mm OD x 24.75mm W

2шт.

13

87016415

NUT

M40 x 1.5

1шт.

14

87016412

SEAL

35 x 80 x 10

1шт.

15

86539215

KIT

1шт.

16

87518146

SHAFT

15T

1шт.

17

86539148

CAP

1шт.

18

86626270

DIPSTICK,129mm L

1шт.

19

87016402

SNAP RING,80mm x 4.15mm Thk

2шт.
