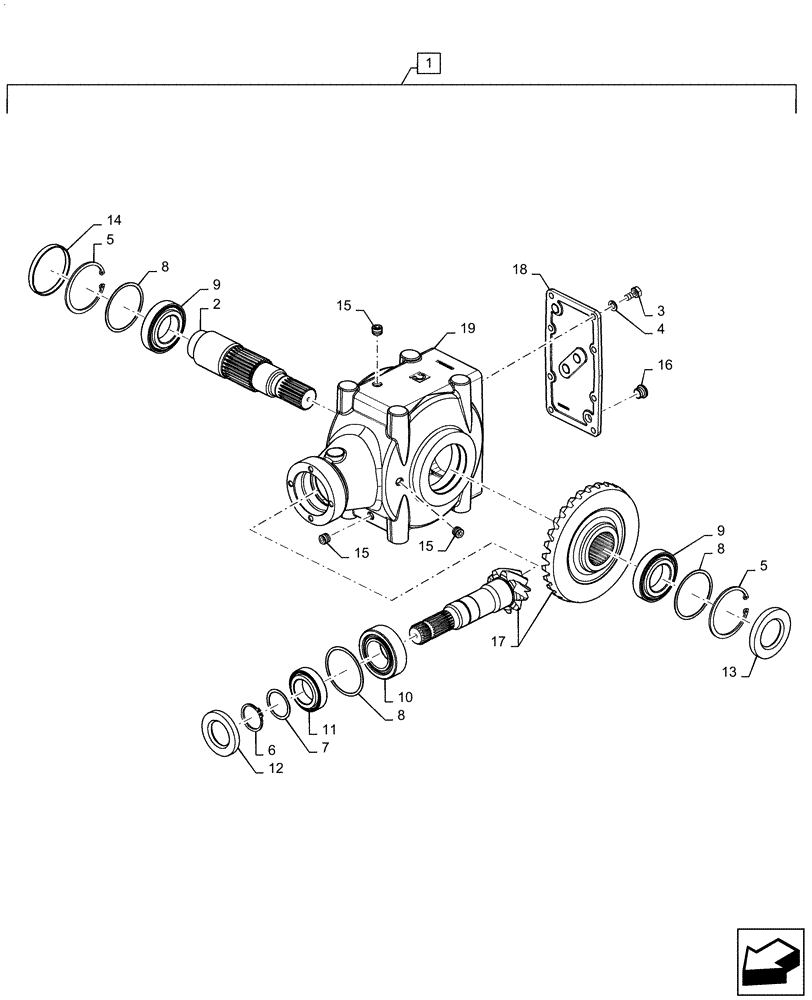

Запчасти Case IH RB565 (31.220.AG[03]) - VAR - 726528 - GEARBOX - HEAVY DUTY, 1000 RPM (31) - IMPLEMENT POWER TAKE OFF

1

84375100

GEARBOX

1000 RPM, Heavy Duty

1шт.

2

47427339

SHAFT

1шт.

3

2975076

BOLT,M10 x 1.5 x 22mm, Cl 8.8

8шт.

4

12648301

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

8шт.

5

370013

SNAP RING,M90 x 3mm Thk, Internal

2шт.

6

5135061

CIRCLIP,M45, Ext

1шт.

7

47427338

SHIM KIT

1шт.

8

47427337

SHIM KIT

3шт.

9

561201

TAPERED BEARING,50mm ID x 90mm OD x 21.75mm W

2шт.

10

86500889

BEARING ASSY,50mm ID x 90mm OD x 32mm W

1шт.

11

84438713

TAPERED BEARING,45mm ID x 75mm OD x 20mm W

1шт.

12

47427336

OIL SEAL

1шт.

13

47427333

OIL SEAL

1шт.

14

47427330

OIL SEAL

1шт.

15

47599792

PIPE PLUG

3шт.

16

47427362

PIPE PLUG

4шт.

17

47654321

GEAR SET

1шт.

18

47427318

COVER

1шт.

19

47427375

HOUSING

1шт.
