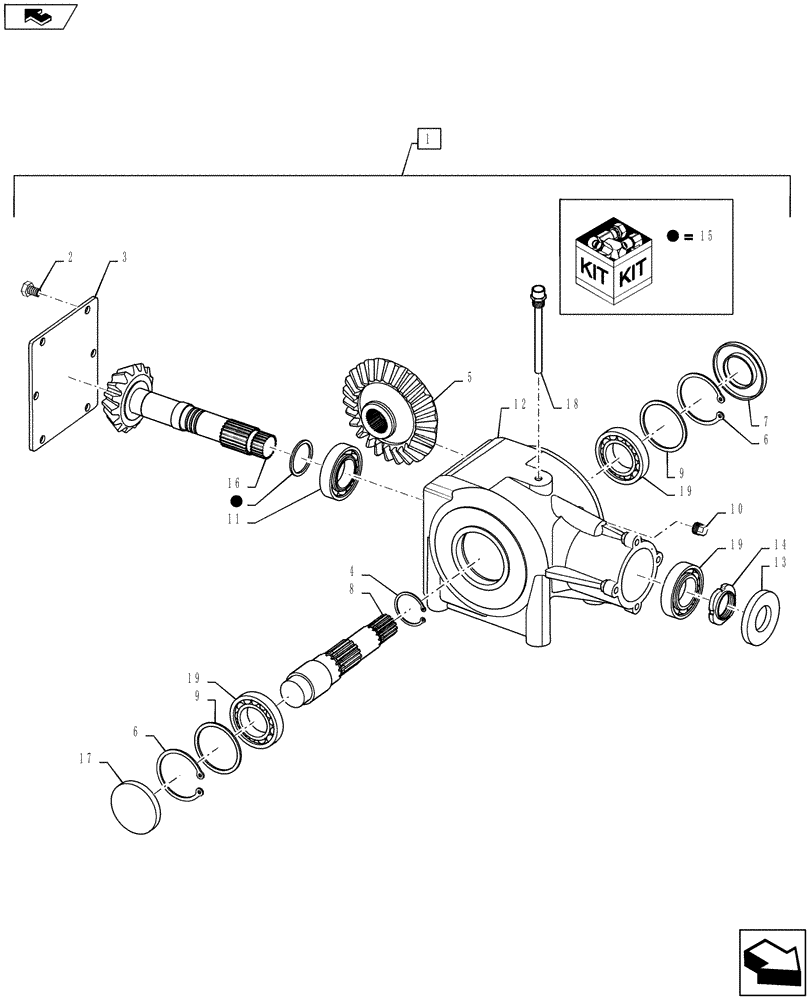

Запчасти Case IH RB565 (31.220.AG[02]) - VAR - 726528 - GEARBOX - STANDARD, 1000 RPM (31) - IMPLEMENT POWER TAKE OFF

1

87344585

GEARBOX

Main Drive, 1000 RPM

1шт.

Manufacturer's I.D. #322.002.00 Stamped in Top of Gearbox Housing

1шт.

1

87344585R

REMAN-PTO GEARBOX A.

Main Drive, 1000 RPM

1шт.

1

87344585C

CORE-PTO GEARBOX A.

Return Number

1шт.

2

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

6шт.

3

87016403

COVER

1шт.

4

86559213

SNAP RING

Ext., M42.5

1шт.

5

87344591

BEVEL GEAR

45T

1шт.

6

87016402

SNAP RING,80mm x 4.15mm Thk

2шт.

7

86539153

SEAL,40mm ID x 80mm OD x 10mm Thk

1шт.

8

87016406

GEAR SHAFT

1шт.

9

86539214

SHIM

Shim

2шт.

10

86557412

PLUG,3/8" - 19 NPT

2шт.

11

86613758

BEARING ASSY,40mm ID x 90mm OD x 25.25mm W

1шт.

12

87016405

TRANSMISSION HOUSING

1шт.

13

87016412

SEAL

35 x 80 x 10

1шт.

14

87016415

NUT

M40 x 1.5

1шт.

15

86539215

KIT

Shim

1шт.

16

87344590

SHAFT

14T

1шт.

17

86539148

CAP

1шт.

18

86626271

DIPSTICK

1шт.

19

210053

TAPERED BEARING,40mm ID x 80mm OD x 18mm W

3шт.
