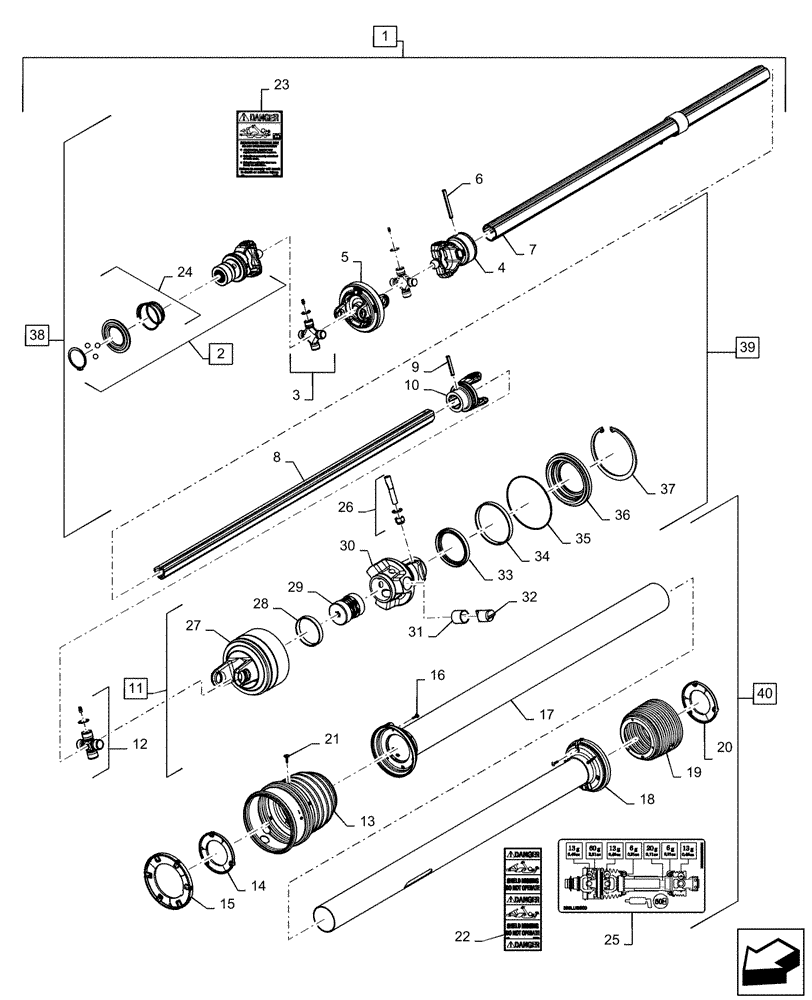

Запчасти Case IH RB565 (31.201.AD[04]) - VAR - 726871 - PTO ASSEMBLY, 540 RPM 1700 N-M, CUTOUT CLUTCH (31) - IMPLEMENT POWER TAKE OFF

1

47501252

PTO

Cut Out Clutch, 540 RPM 1700 N-m, Incl 2 - 40

1шт.

2

87517822

YOKE

Incl 24

1шт.

3

87517823

BEARING ASSY

2шт.

4

87517824

YOKE

1шт.

5

87517825

YOKE

1шт.

6

87517826

ROLL PIN,10.5mm OD x 95mm L

1шт.

7

84540279

DRIVE SHAFT

Outer

1шт.

8

87484368

TUBE,1050 mm L

Inner

1шт.

9

84036368

ROLL PIN

1шт.

10

87517829

YOKE

Rear

1шт.

11

47598300

PTO CLUTCH

Cutout, Incl 26 - 33

1шт.

12

87018244

CROSS

1шт.

13

84540281

CONE

1шт.

14

87517831

BEARING COVER,89.4 mm ID x 132 mm OD x 12 mm

Front

1шт.

15

87517832

BEARING COVER,128.4 mm ID x 187 mm OD x 11 mm

Front

1шт.

16

87587200

SELF-TAP SCREW

Screw, 4.8 x 22 Self-Tapping

6шт.

17

84540283

GUARD

Outer

1шт.

18

84540284

GUARD

Inner

1шт.

19

47517439

CONE

Shield

1шт.

20

86979196

BEARING,86mm ID x 132mm OD x 12mm H

1шт.

21

87716643

SELF-TAP SCREW

Screw, 4.8 x 22 Self-Tapping, Flange Head

6шт.

22

849471

DANGER DECAL

1шт.

23

849472

DANGER DECAL

1шт.

24

47654384

COLLAR

Collar

1шт.

25

47598521

IMPORTANT DECAL

1шт.

26

47362902

PIN

Kit

1шт.

27

84540289

YOKE

1шт.

28

84540246

RING,72mm ID x 77mm OD

Guide

1шт.

29

87498835

SPRING

1шт.

30

84540248

HUB

1шт.

31

84801513

BUSHING,28mm ID x 32mm ID x 30mm Thk

3шт.

32

84801514

COVER

1шт.

33

84540249

RING,105mm ID x 110mm OD x 10mm Thk

1шт.

34

84540296

SEAL

1шт.

35

84540254

RING,139.4mm ID x 2.62mm Thk

1шт.

36

84540255

COVER

1шт.

37

87039016

SNAP RING,M138

1шт.

38

84540299

PTO

Outer, Incl 2 - 7, 13 - 17, 22, 23, 25

1шт.

39

47598570

HALF SHAFT

Inner, Incl 8 - 11, 16, 18 - 20, 26 - 37

1шт.

40

84540301

GUARD

Shield, Incl 13 - 21

1шт.
