(27.500.AO[02]) - VAR - 8099808, 807490 - WHEEL HUB & SPINDLE, HEAVY DUTY

Запчасти Case IH RB565 (27.500.AO[02]) - VAR - 8099808, 807490 - WHEEL HUB & SPINDLE, HEAVY DUTY (27) - REAR AXLE SYSTEM

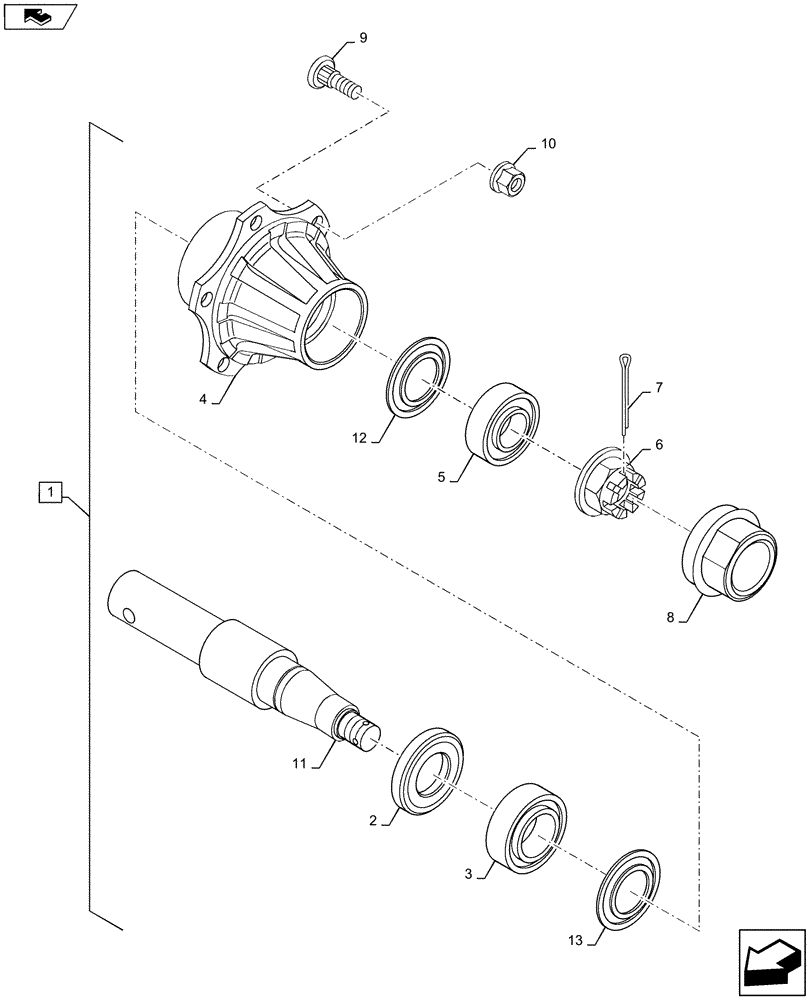

Схема запчастей Case IH RB565 - (27.500.AO[02]) - VAR - 8099808, 807490 - WHEEL HUB & SPINDLE, HEAVY DUTY (27) - REAR AXLE SYSTEM
5
8
6
2
home
3
7
13
9
4
10
12
11
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86631642

HUB

Spindle, Heavy Duty, Incl 2 - 8, 11 - 13

2шт.

2

87022911

OIL SEAL

Oil

1шт.

3

26799990

TAPERED BEARING,55mm ID x 100mm OD x 22.75mm W

100 mm OD x 55 mm ID

1шт.

4

87018138

HUB

1шт.

5

84021877

TAPERED BEARING,50mm ID x 80mm OD x 20mm W

80 mm OD x 50 mm ID

1шт.

6

87022923

SLOTTED NUT

Slotted, M39 x 1.5

1шт.

7

86523957

COTTER PIN,5/32" x 2"

1шт.

8

87022925

CAP

Hub

1шт.

9

87018139

BOLT

Wheel, M18 x 1.5

6шт.

Not Included in Ref. 1. Shown for Reference Only.

1шт.

10

86625632

WHEEL NUT,Hex, M18 x 1.5

Wheel, M18 x 1.5

6шт.

Not Included in Ref. 1. Shown for Reference Only.

1шт.

11

87018137

SPINDLE,368mm L

1шт.

12

87036687

SHIELD

Grease, M80 OD

1шт.

13

87036688

SHIELD

Grease, M100 OD

1шт.
