(90.108.AC[01]) - DECALS, SAFETY AND INFORMATION, RH

Запчасти Case IH RB565 (90.108.AC[01]) - DECALS, SAFETY AND INFORMATION, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS

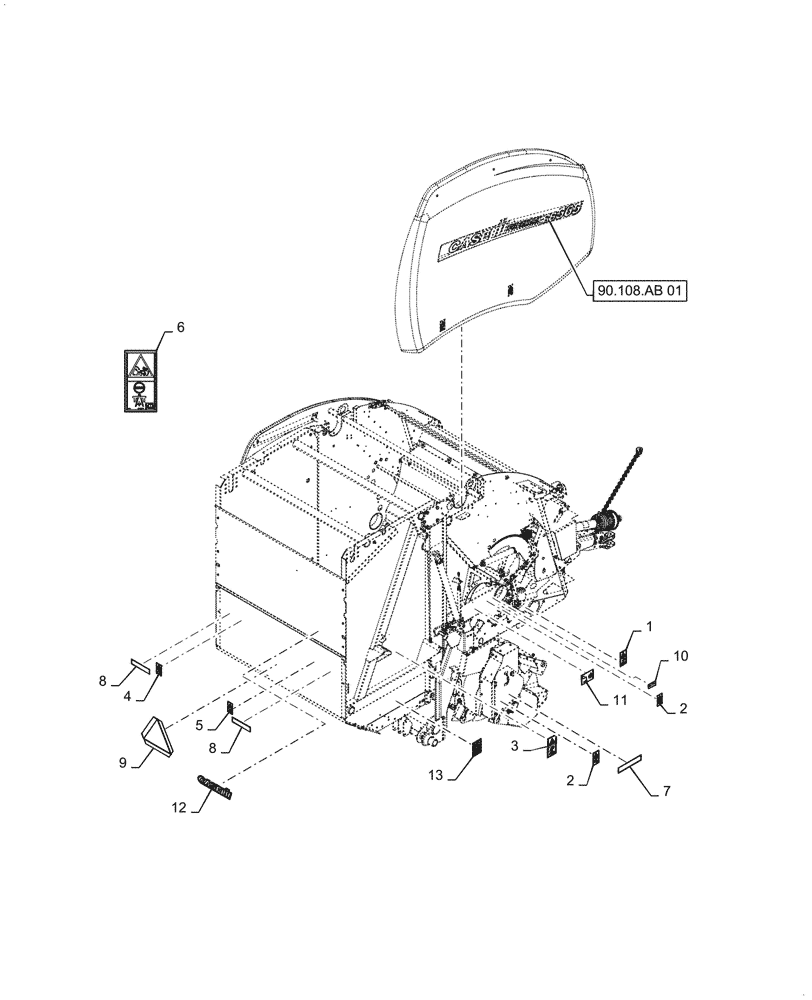

Схема запчастей Case IH RB565 - (90.108.AC[01]) - DECALS, SAFETY AND INFORMATION, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.108.ab 01
2
5
1
8
3
11
6
2
7
4
13
9
12
8
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47377884

WARNING DECAL

Cutting Hazard

3шт.

2

84004734

WARNING DECAL

Entanglement Hazard

4шт.

3

47361329

DANGER DECAL

Control Valve

4шт.

4

86516139

CAUTION DECAL

Crush Hazard

3шт.

5

47361241

WARNING DECAL

Crush Hazard

1шт.

6

47404857

DANGER DECAL

PTO Shield Missing, Entanglement Hazard

1шт.

7

87017702

DECAL

XtraSweep

2шт.

8

86547781

REFLECTOR,RED

2шт.

9

86547711

DECAL,SMV

Caution, Slow Moving Vehicle Triangle

1шт.

10

165109

DECAL

Lube Fitting

9шт.

11

718861

DECAL

Lube Interval

2шт.

12

87653274

DECAL

CaseIH

1шт.

13

47669694

DECAL

Shipping Breacket

1шт.
