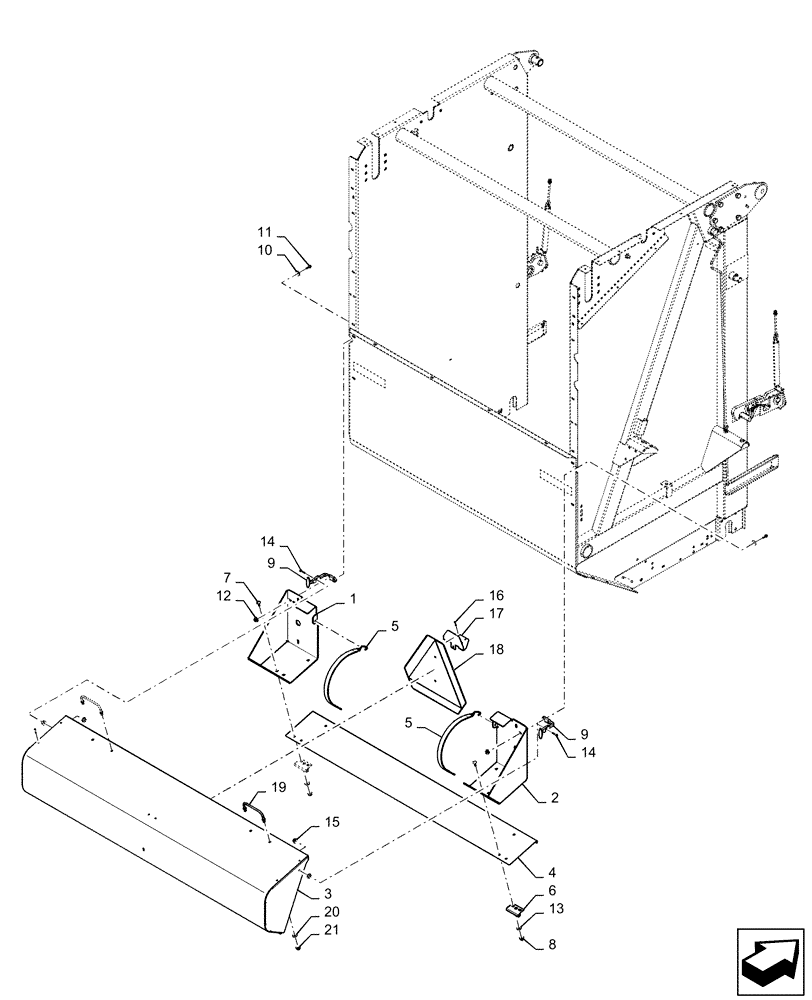

Запчасти Case IH RB565 (90.105.BR[04]) - VAR - 726666, 726964 - REAR NET BOX (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47574977

SUPPORT

LH

1шт.

2

47575021

SUPPORT

RH

1шт.

3

84599340

LID

1шт.

4

47572787

FLOOR

1шт.

5

87020998

STRAP

2шт.

6

84133414

ROD

Hinge

1шт.

7

86636815

CARRIAGE BOLT,Sq Nk, M8 x 25mm, Cl 8.8, Full Thd

6шт.

8

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

6шт.

9

86000448

LATCH

2шт.

10

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

4шт.

11

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

4шт.

12

86619800

FLANGE NUT,M6 x 1, Cl 8

4шт.

13

412328

WASHER

6шт.

14

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

2шт.

15

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

4шт.

16

425520

RIVET,Pop, 3.96mm OD x 10.4mm L

2шт.

17

47554490

PLATE

1шт.

18

86547710

EMBLEM

1шт.

19

86556031

HANDLE

2шт.

20

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

21

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

4шт.
