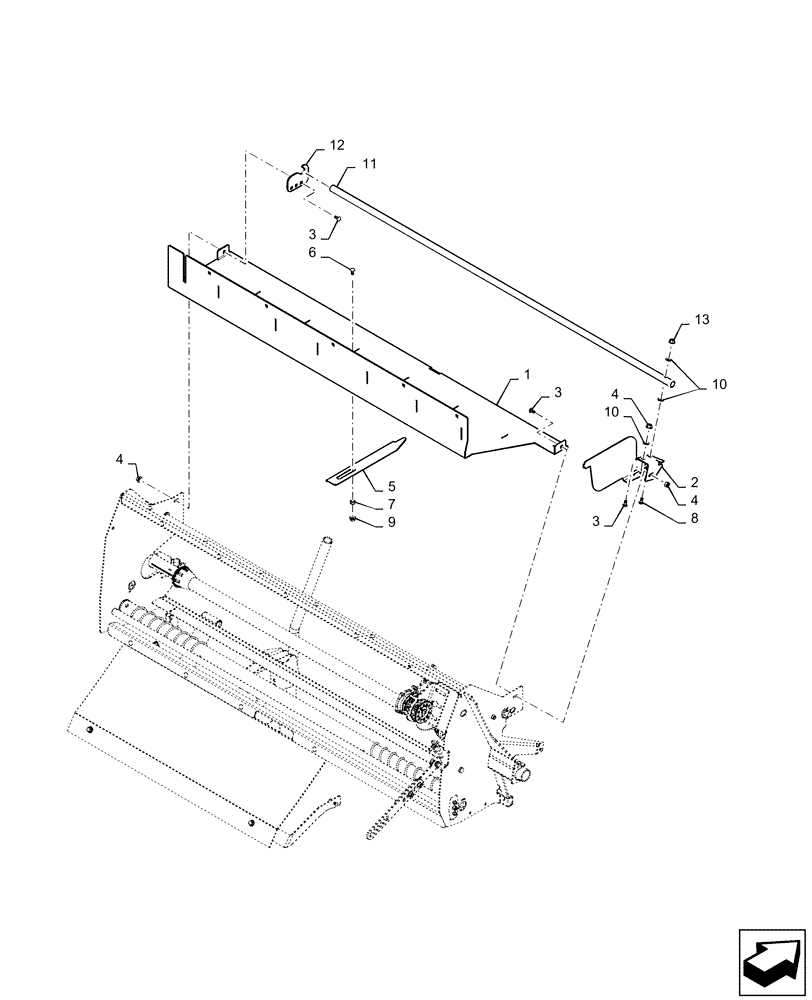

Запчасти Case IH RB565 (90.105.BR[03]) - VAR - 726666 - FRONT NET BOX (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84580513

TWINE BOX

1шт.

2

47457566

DIVIDER

1шт.

3

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

9шт.

4

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

9шт.

5

47463692

SUPPORT

1шт.

6

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

1шт.

7

133095

SPACER,10.32mm ID x 15.85mm OD x 7.9mm L

1шт.

8

86512444

CARRIAGE BOLT,M8 x 1.25 x 40mm, Full Thd, Cl 8.8

1шт.

9

9804278

FLANGE NUT,M10 x 1.5, Cl 8

1шт.

10

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2шт.

11

47465287

SHAFT,25mm OD x 1798mm L

1шт.

12

47457573

LATCH

1шт.

13

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.
