Запчасти Case IH RB565 (90.105.BR[02]) - VAR - 726964 - TWINE BOX - TWINE AND NET OPTION, YFN188618 AND PRIOR (90) - PLATFORM, CAB, BODYWORK AND DECALS

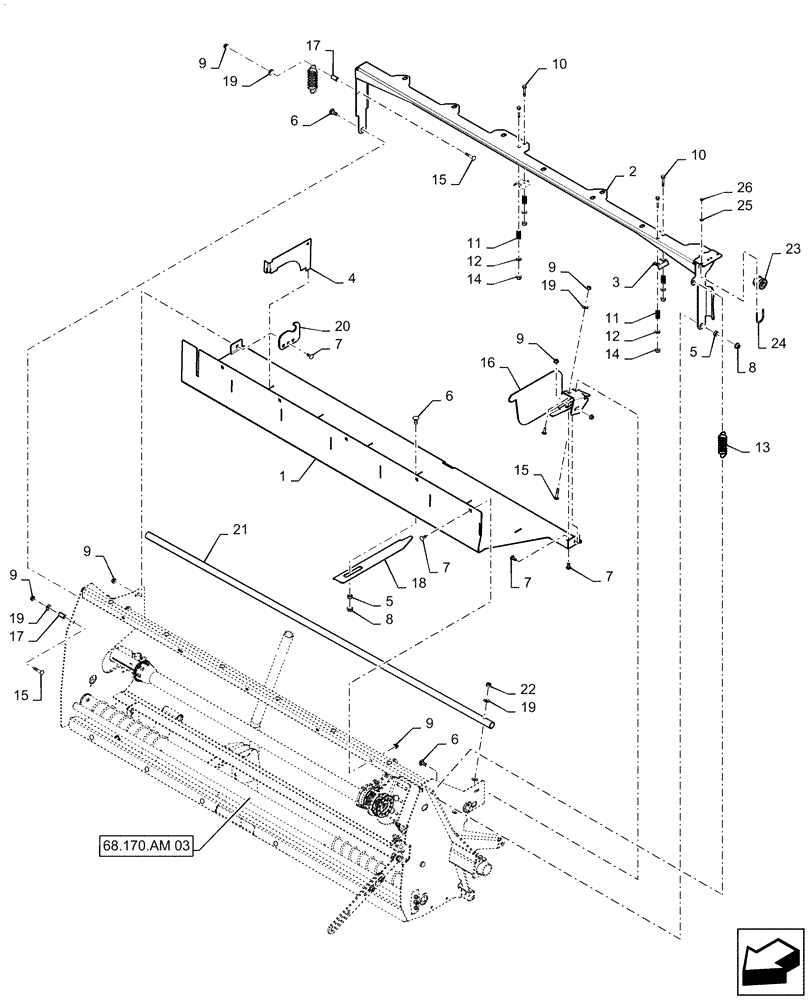

Схема запчастей Case IH RB565 - (90.105.BR[02]) - VAR - 726964 - TWINE BOX - TWINE AND NET OPTION, YFN188618 AND PRIOR (90) - PLATFORM, CAB, BODYWORK AND DECALS
19
16
24
6
15
17
1
9
7
11
25
15
17
68.170.am 03
13
19
7
2
9
7
21
9
19
9
20
23
9
15
4
19
7
14
18
8
12
22
12
14
26
9
6
5
3
10
5
11
10
6
8

Артикул

Название

Примечание

Количество

1

84580513

TWINE BOX

1шт.

2

84580514

SUPPORT

1шт.

3

9820171

BRACKET

2шт.

4

84572188

DIVIDER

6шт.

5

133095

SPACER,10.32mm ID x 15.85mm OD x 7.9mm L

3шт.

6

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

3шт.

7

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

9шт.

8

9804278

FLANGE NUT,M10 x 1.5, Cl 8

3шт.

9

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

11шт.

10

86511840

BOLT,Hex Flng, M6 x 1 x 40mm, Cl 8.8

4шт.

11

29840

SPRING,Compression, 11.91mm OD x 25.4mm L

4шт.

12

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

4шт.

13

32379

SPRING,Extension, 1-1/4" OD x 5-3/8" L

2шт.

14

353308

NUT,M6 x 1.0, Cl 8

4шт.

15

86512444

CARRIAGE BOLT,M8 x 1.25 x 40mm, Full Thd, Cl 8.8

3шт.

16

47457566

DIVIDER

1шт.

17

27695

BUSHING,9.53mm ID x 12.83mm OD x 25.4mm L

3шт.

18

47463692

SUPPORT

1шт.

19

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

4шт.

20

47457573

LATCH

1шт.

21

47465287

SHAFT,25mm OD x 1798mm L

1шт.

22

86629542

NUT,M8 x 1.25, Cl 8.8

1шт.

23

84298727

GUIDE

Porcelain

2шт.

24

28114

U-BOLT

2шт.

25

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

26

87304

NUT,#10-24

4шт.

Выбрано товаров: 26
