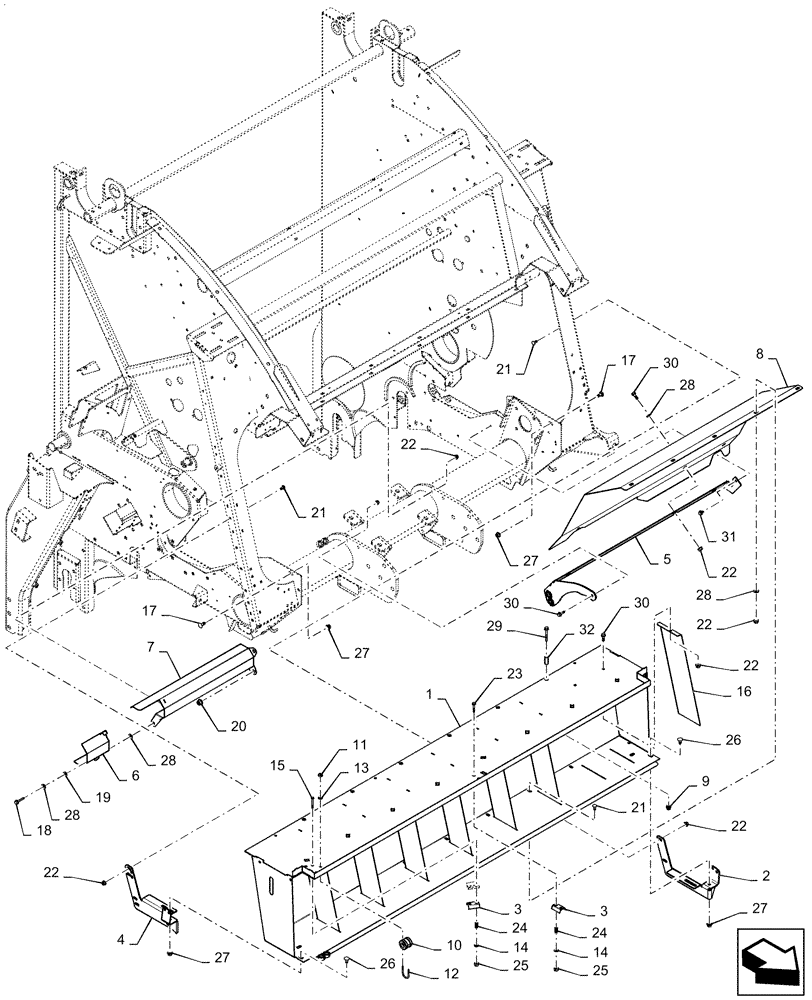

Запчасти Case IH RB565 (90.105.BR[01]) - VAR - 726963 - TWINE BOX - TWINE OPTION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47916689

TWINE BOX

Twine

1шт.

2

47897709

SUPPORT

LH

1шт.

3

9820171

BRACKET

3шт.

4

47897702

SUPPORT

RH

1шт.

5

47894638

SUPPORT

1шт.

6

47493104

SHIELD

1шт.

7

47505349

SHIELD

1шт.

8

47917925

SHIELD

1шт.

9

86610200

THREADED INSERT,M8 x 1.25

6шт.

10

48113983

Porcelain

GUIDE

2шт.

11

87304

NUT,#10-24

4шт.

12

48097944

U-BOLT

2шт.

13

322356

BELLEVILLE WASHER,M5 Bolt Size x 12mm OD x 1.85mm Thk

4шт.

14

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

4шт.

15

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

16

47894001

SUPPORT

Rib

6шт.

17

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

2шт.

18

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

1шт.

19

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

20

9804279

FLANGE NUT,Hex, M12, Cl 8

2шт.

21

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

9шт.

22

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

16шт.

23

86511840

BOLT,Hex Flng, M6 x 1 x 40mm, Cl 8.8

2шт.

24

29840

SPRING,Compression, 11.91mm OD x 25.4mm L

4шт.

25

353308

NUT,M6 x 1.0, Cl 8

4шт.

26

120041

CARRIAGE BOLT,M10 x 20mm, Cl 8.8

4шт.

27

9804278

FLANGE NUT,M10 x 1.5, Cl 8

6шт.

28

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

10шт.

29

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

6шт.

30

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

6шт.

31

381014

SCREW,Flng, M8 x 16mm

1шт.

32

453155

RING

6шт.
