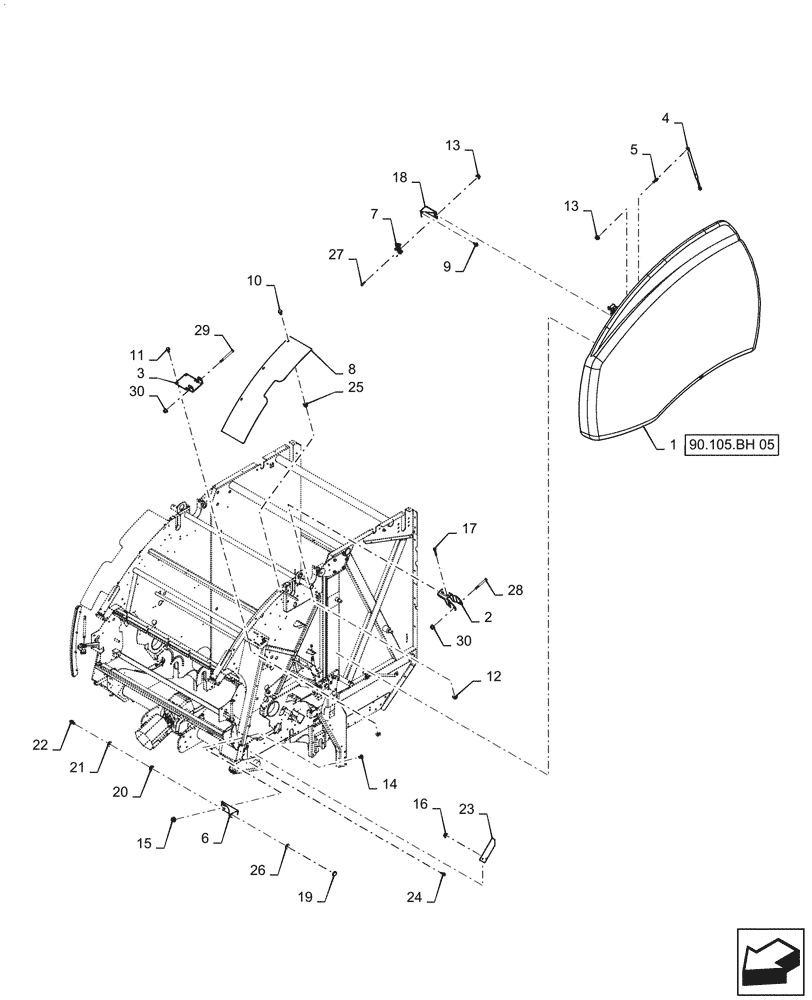

Запчасти Case IH RB565 (90.105.BH[04]) - LH DOOR - MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

0C

ORDER COMPONENTS

Door, LH

1шт.

2

84371056

BRACKET

1шт.

3

84324176

BRACKET

1шт.

4

47387253

GAS STRUT

2шт.

5

86628347

STUD,M8 x 36.5mm OAL, 10mm OD Ball

4шт.

6

47561227

BRACKET

1шт.

7

87688487

LATCH ASSY.

1шт.

8

47482860

SHIELD

1шт.

9

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

2шт.

10

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

3шт.

11

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

12

9804278

FLANGE NUT,M10 x 1.5, Cl 8

8шт.

13

86619801

FLANGE NUT,M8 x 1.25, Cl 8

4шт.

14

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

15

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

16

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

17

86011090

BOLT,Hex Flng, M10 x 70mm, Cl 8.8

2шт.

18

47419163

BRACKET

1шт.

19

84517258

MAGNET

1шт.

20

13605715

SPACER,9mm ID x 18mm OD x 5mm L

1шт.

21

322355

BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk

1шт.

22

10445821

SCREW,Hex, M4 x 8mm, Cl 8.8, Full Thd

1шт.

23

47390972

PLATE

1шт.

24

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

2шт.

25

86610200

THREADED INSERT,M8 x 1.25

3шт.

26

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

1шт.

27

87695419

FLANGE BOLT,M8 x 43.1mm, Cl 10.9

2шт.

28

87996

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

1шт.

29

88576

BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5

1шт.

30

86521619

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5

2шт.
