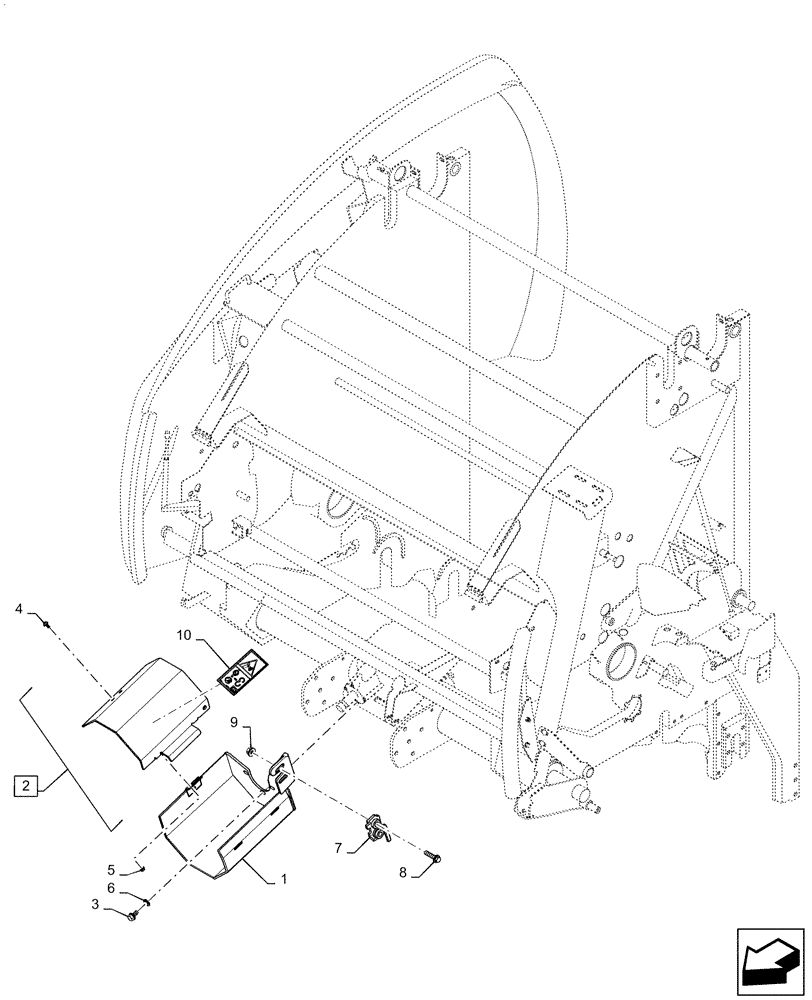

Запчасти Case IH RB565 (90.105.AT[01]) - GEARBOX SHIELD, INPUT SHAFT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47478351

BRACKET

1шт.

2

47541104

LID

Incl 10

1шт.

3

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

3шт.

4

86050272

BOLT,M6 x 1 x 18.6mm OAL, Cl 8.8, Full Thd

2шт.

5

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

6

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

7

87688487

LATCH ASSY.

1шт.

8

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

2шт.

9

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

10

47361328

DANGER DECAL

1шт.
